Home >> Mercedes Benz >> 2002 >> S 500 (220.175) V8-5.0L (113.960) >> Repair and Diagnosis >> Windows and Glass >> Windows >> Window Glass >> Back Window Glass >> Service and Repair >> AR67.20-P-2000MB Remove/Install Rear Window

AR67.20-P-2000MB Remove/Install Rear Window

AR67.20-P-2000MB Remove/Install Rear Window
- with CODE (Z04) Light armoring
- with CODE (Z07) Top protection

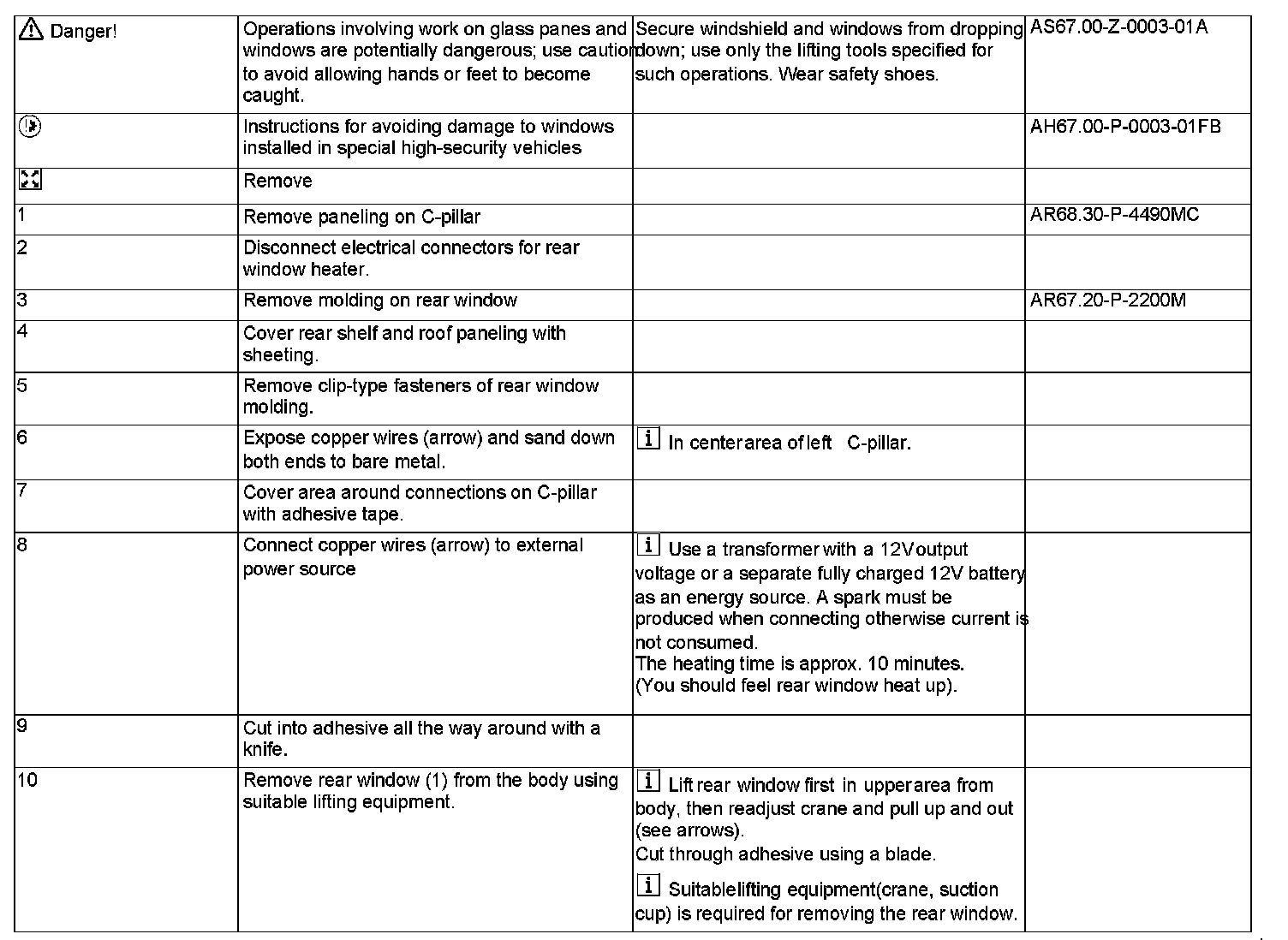

Part 1:

Part 2:
