Window Frame: Service and Repair

AR67.20-P-2200M Remove/Install Ornamental Frame at Rear Window












Remove, Install

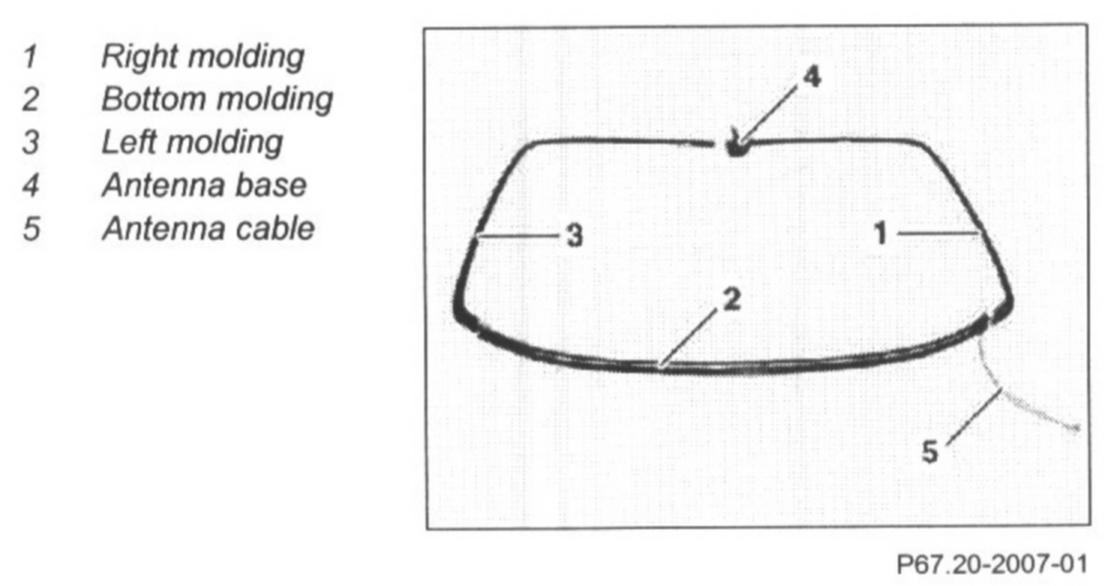

1 Open trunk lid
2 Remove antenna
3 Push covers (arrows) at bottom left and right to side with plastic wedge (6)
- See "Special Tools" below.

4 Press molding (2) out of clips at bottom with plastic wedge (6)
- See "Special Tools" below.

5 Press molding (1) out of clips with plastic wedge (6)
- See "Special Tools" below.

6 Press molding (3) out of clips with plastic wedge (6)
- See "Special Tools" below.

7 Install in the reverse order.

Special Tools

Assembly Wedge P/N # 115 589 03 59 00:
