AR35.30-P-0660-02I Inner Constant-Velocity Joint on Rear Halfshaft, Extraction and Pressing on

AR35.30-P-0660-02I Inner constant-velocity joint on rear halfshaft, extraction and pressing on
- with bolted rear axle shafts
- 215, 220, 230.474 up to 31.8.03


Shell halves (2 ea.) for pressing off and caulking the inner constant velocity joint.

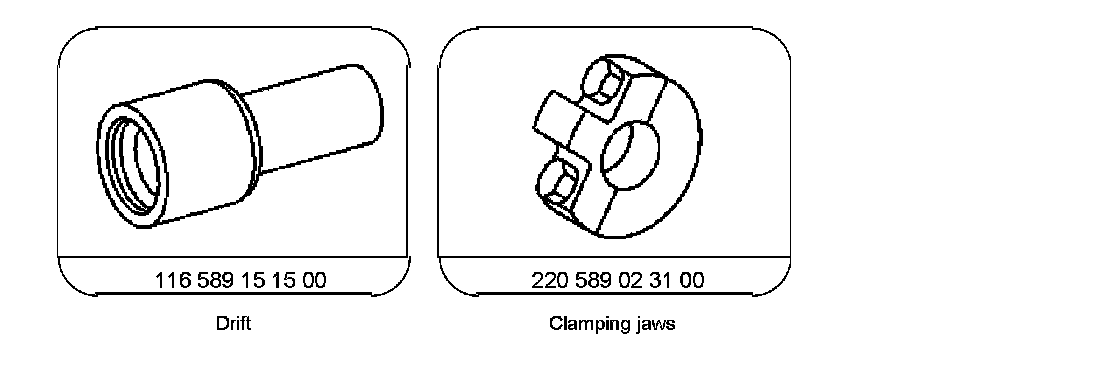

Special Tools:

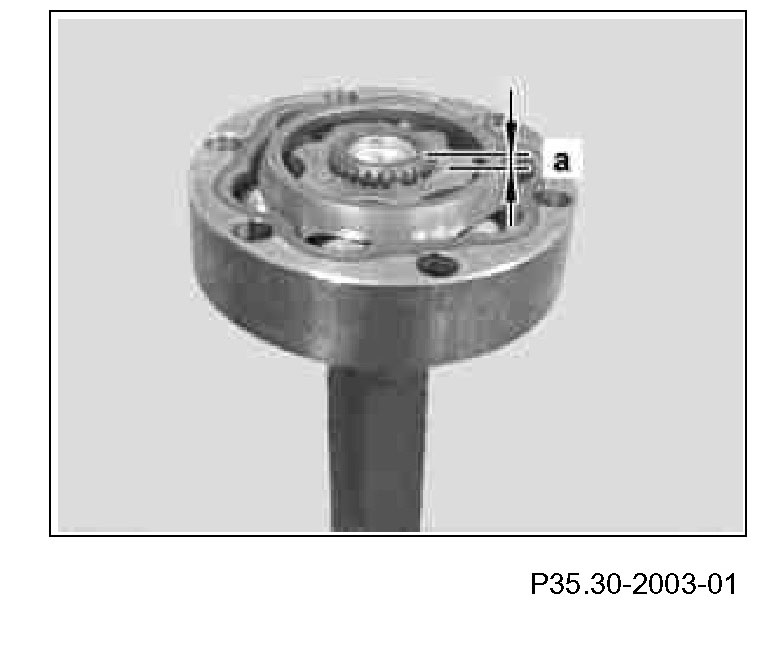

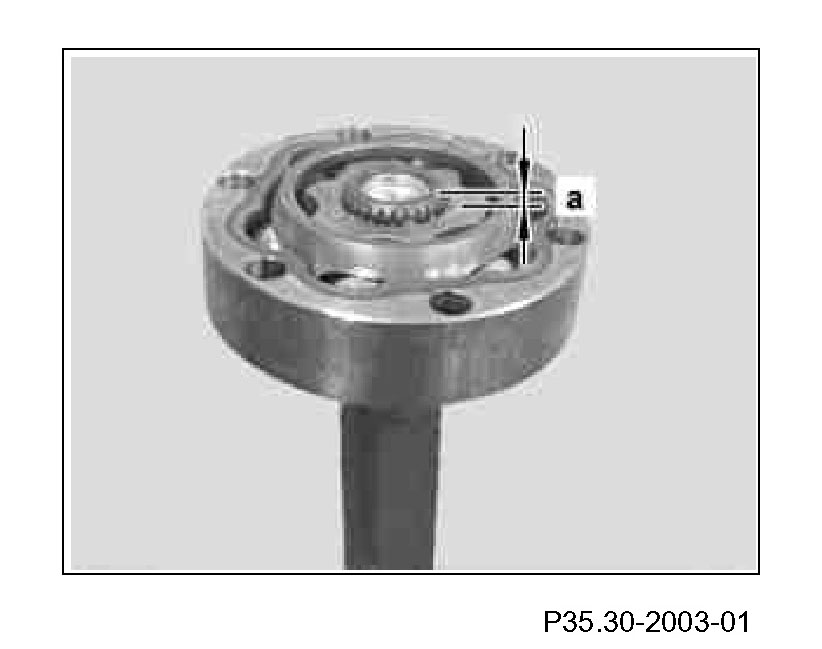

1 Measure and note distance (a) from end face of propeller shaft to constant velocity joint. Distance (a) is usually approx. 4.0 mm to 4.3 mm.

Component Identification:

Pressing off
2 Press off constant velocity joint using the shop-made shell halves (063a) and the drift (063).
3 Clean constant velocity joints.





Pressing on

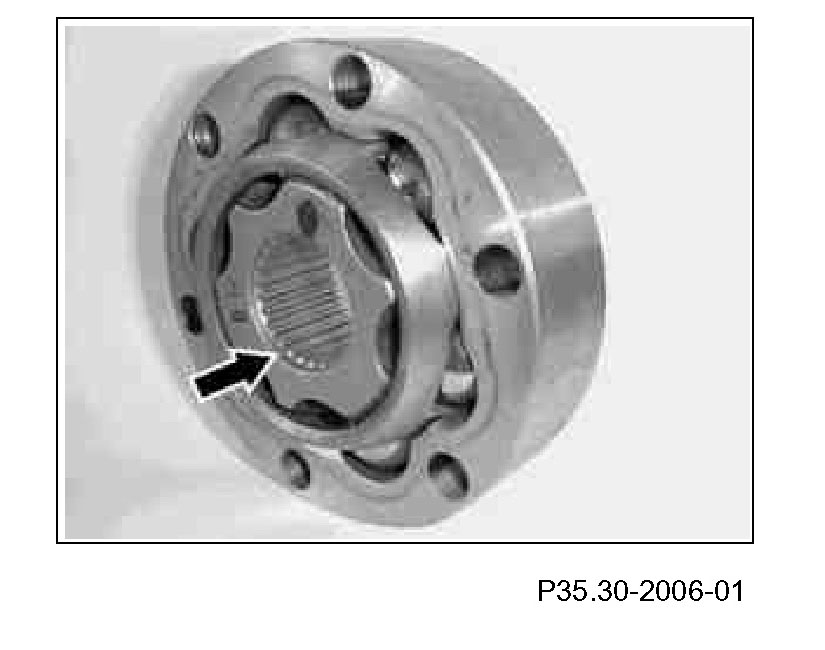

4 Fit constant velocity joint on rear axle shaft so that the collar (arrow) points towards the center of the rear axle shaft.

Component Identification:

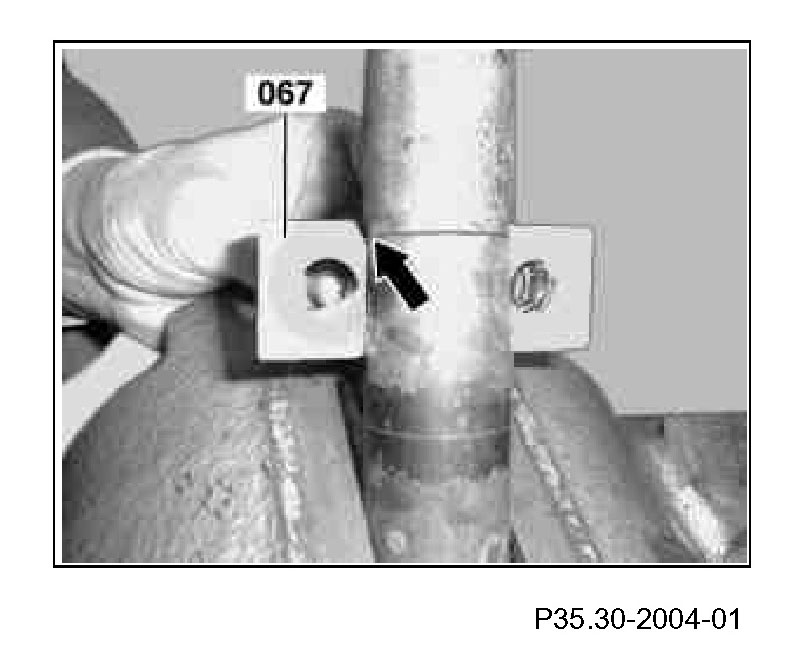

5 Mount the clamping jaws (067) on the boot collar of the rear axle shaft (arrow).

Component Identification:

6 Place rear axle shaft with clamping jaws (067) on the press.

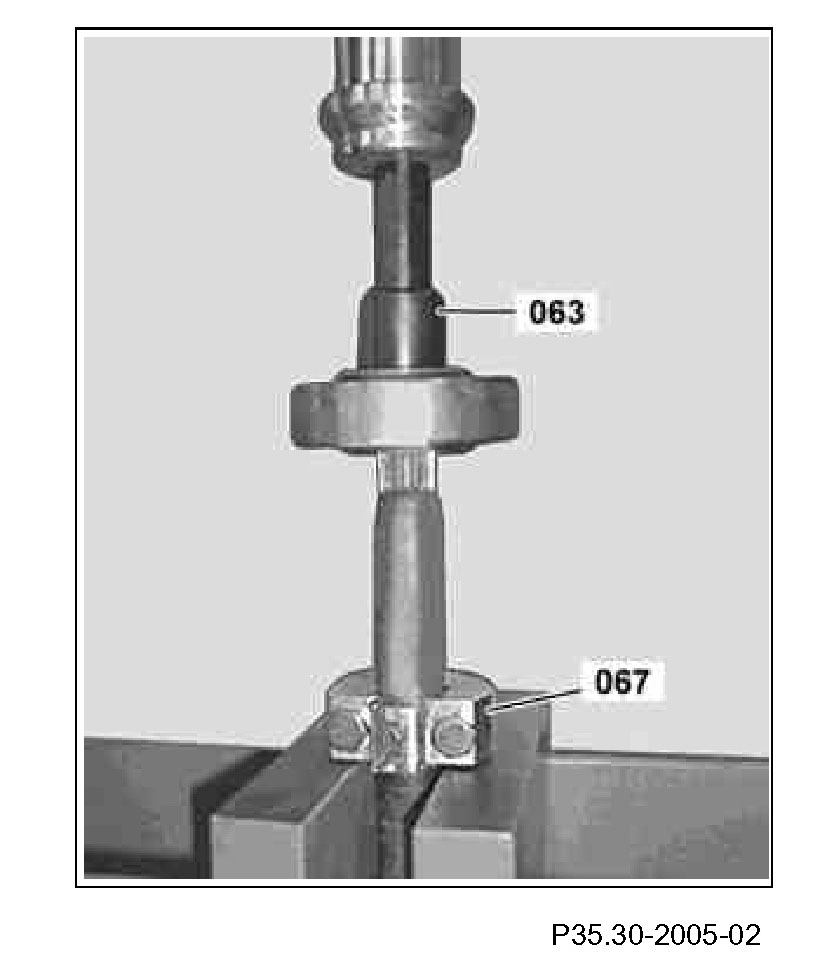

7 Press on constant velocity joint all the way using drift (063).





8 Press on constant velocity joint using a suitable tube until the previously measured and noted distance (a) has been reached.

Dimension (a) is usually approx. 4.0 mm to 4.3 mm.
