AR35.31-P-0520IM Remove/Install Rear Axle Center Assembly

AR35.31-P-0520IM Remove/install rear axle center assembly
- Models 215, 220 with rear axle center assembly diameter 210
- with plug-in rear axle shafts
- Model 220 with rear axle center assembly diameter 198
- with plug-in rear axle shafts

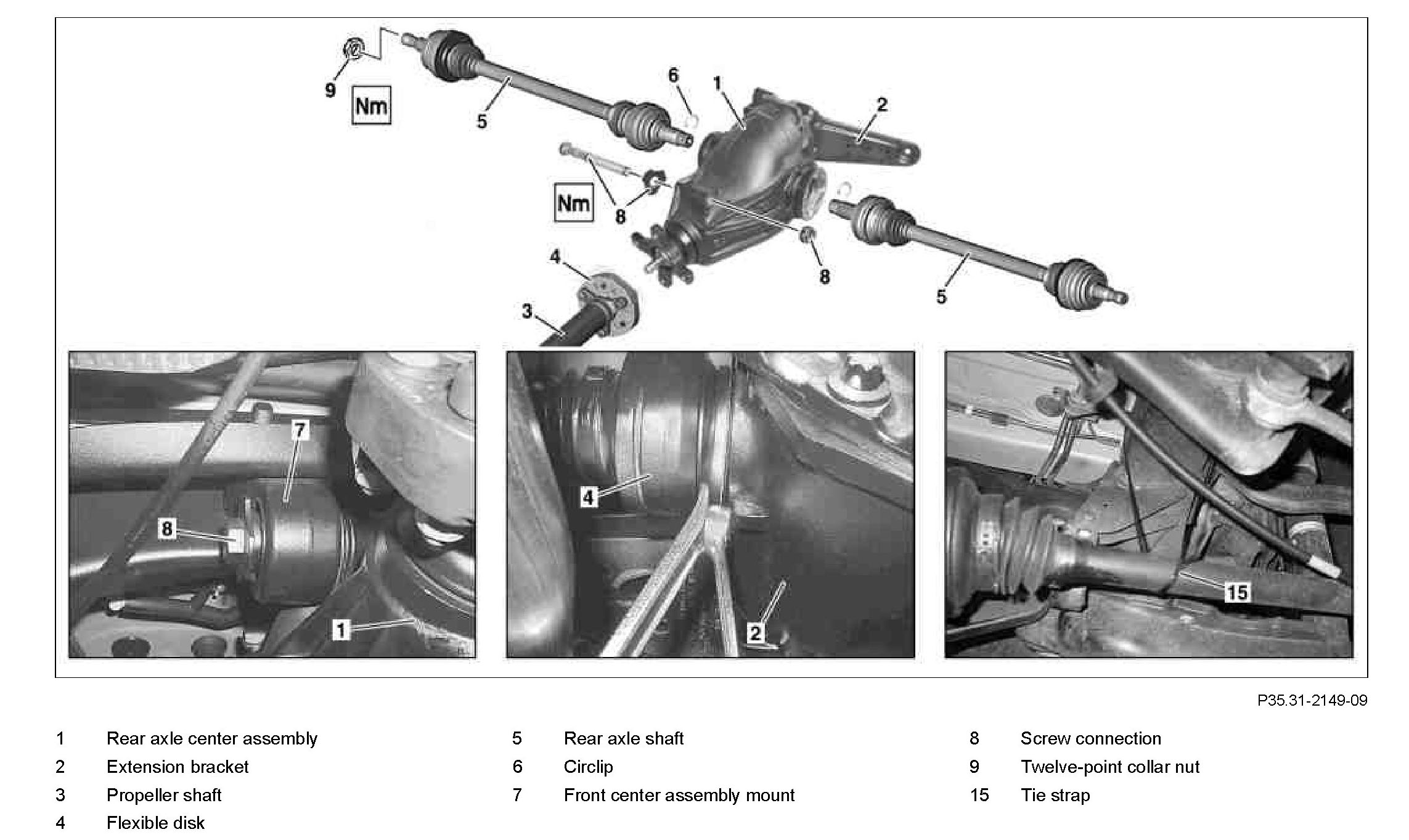

Component Identification:

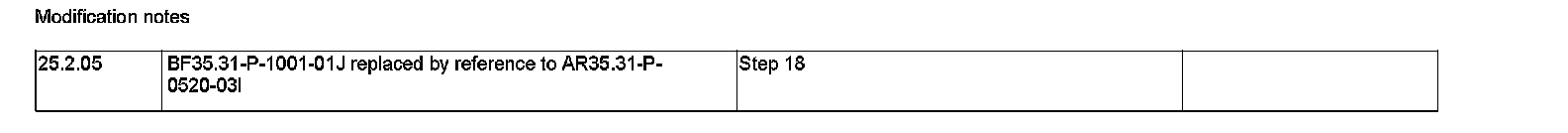

Modification Notes:

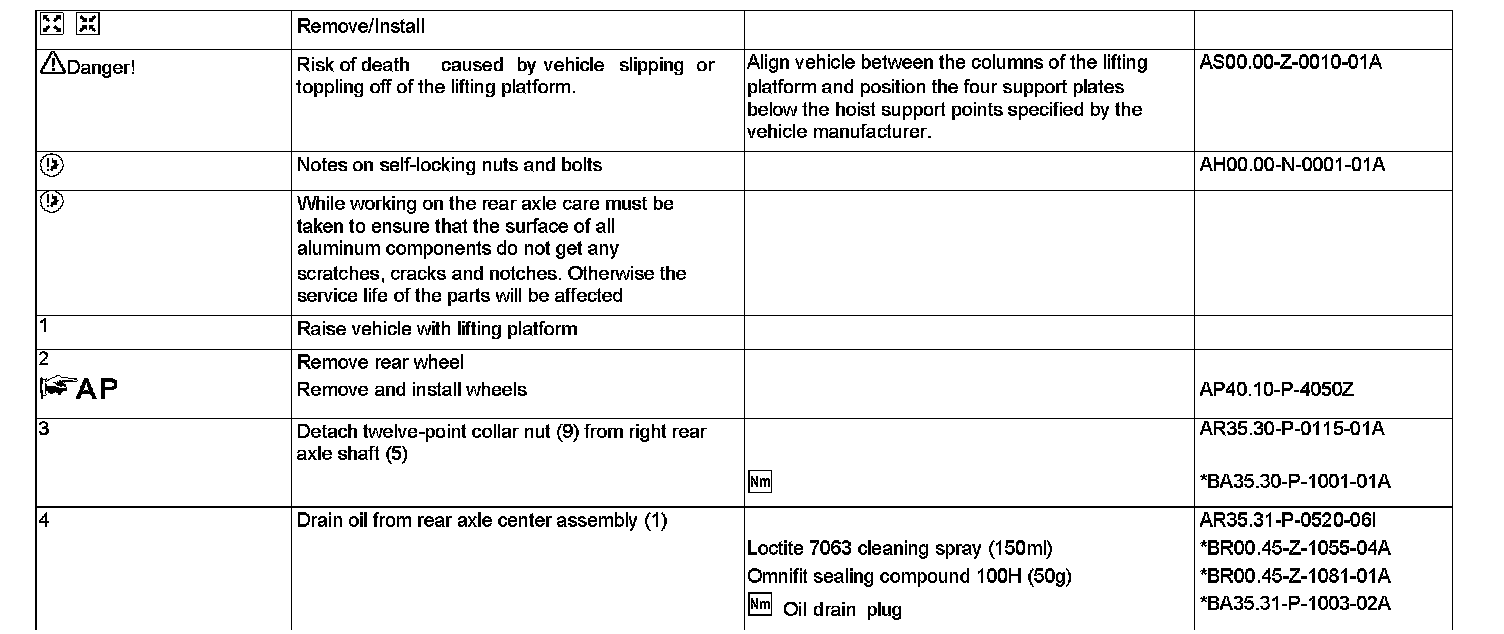

Steps 1 - 4:

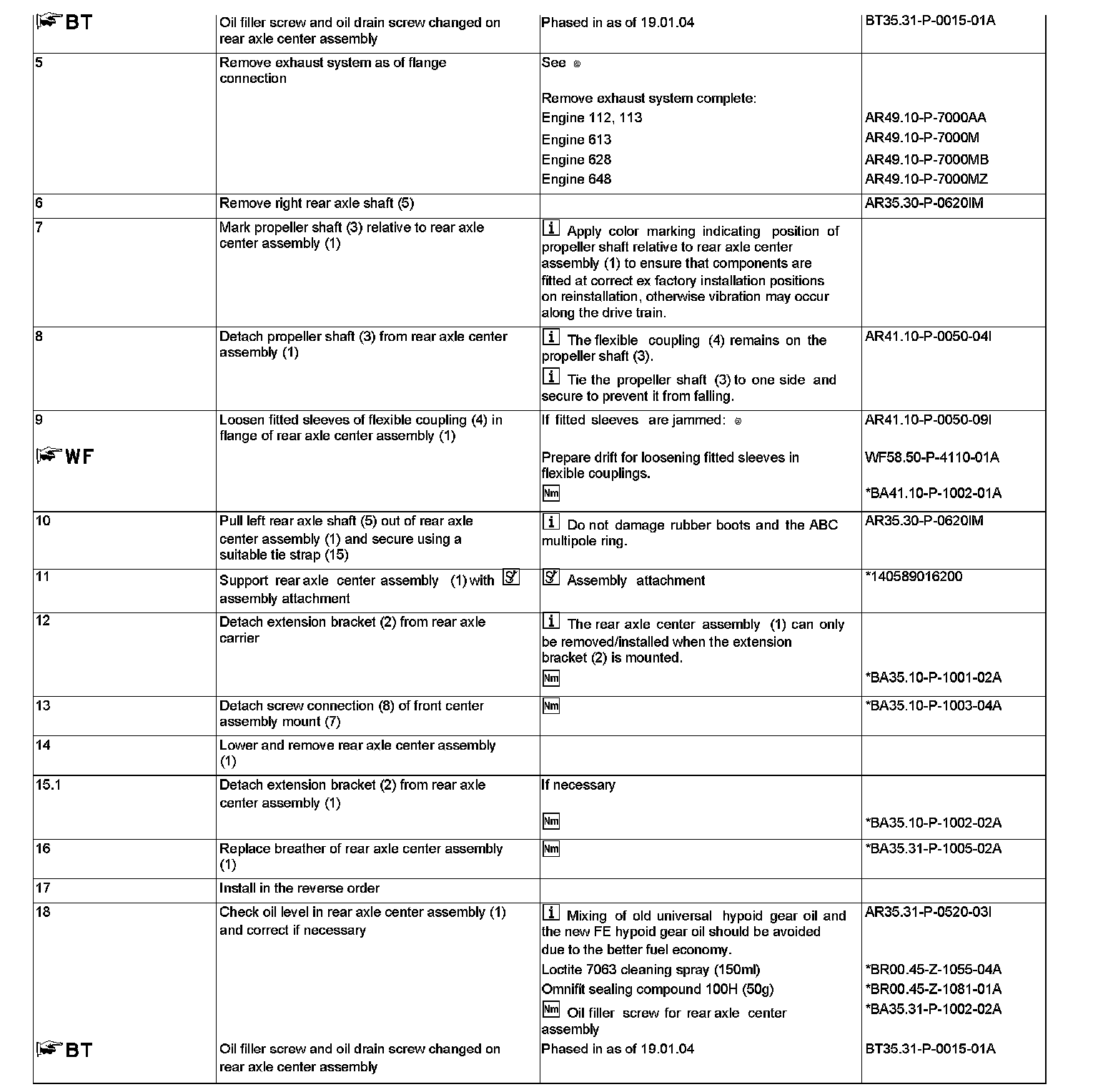

Steps 5 - 18:

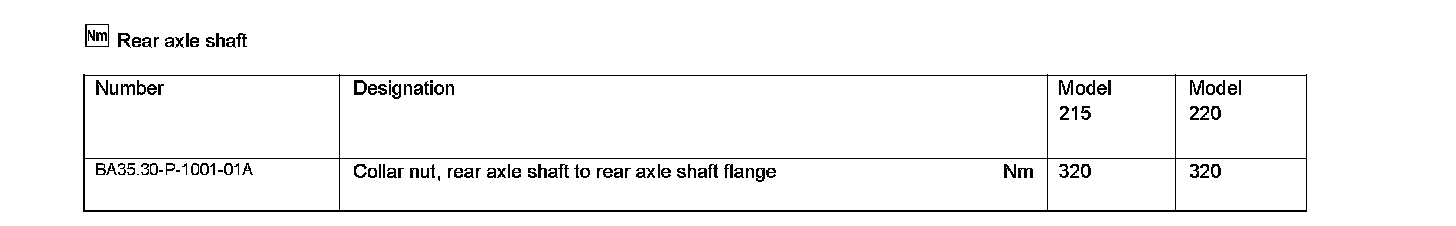

Rear Axle Strut:

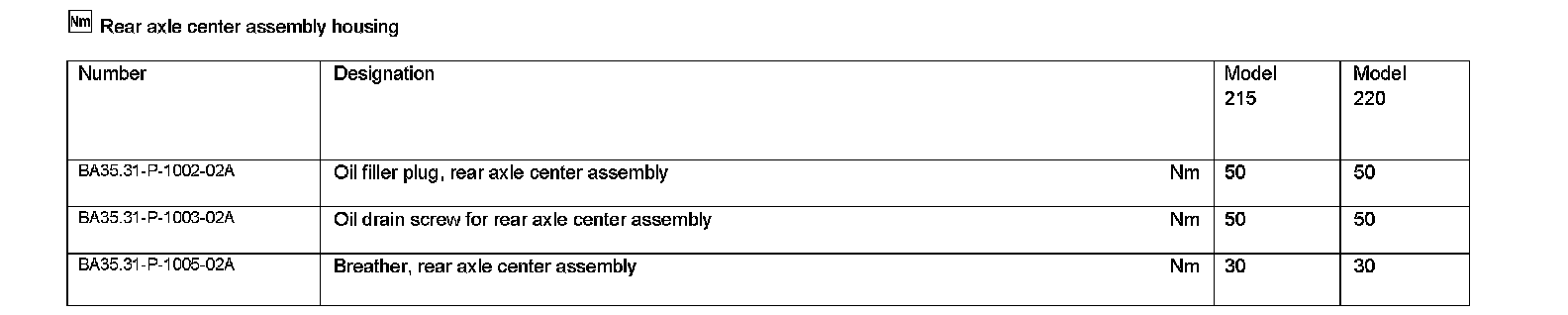

Rear Axle Carrier Assembly Housing:

Driveshaft:

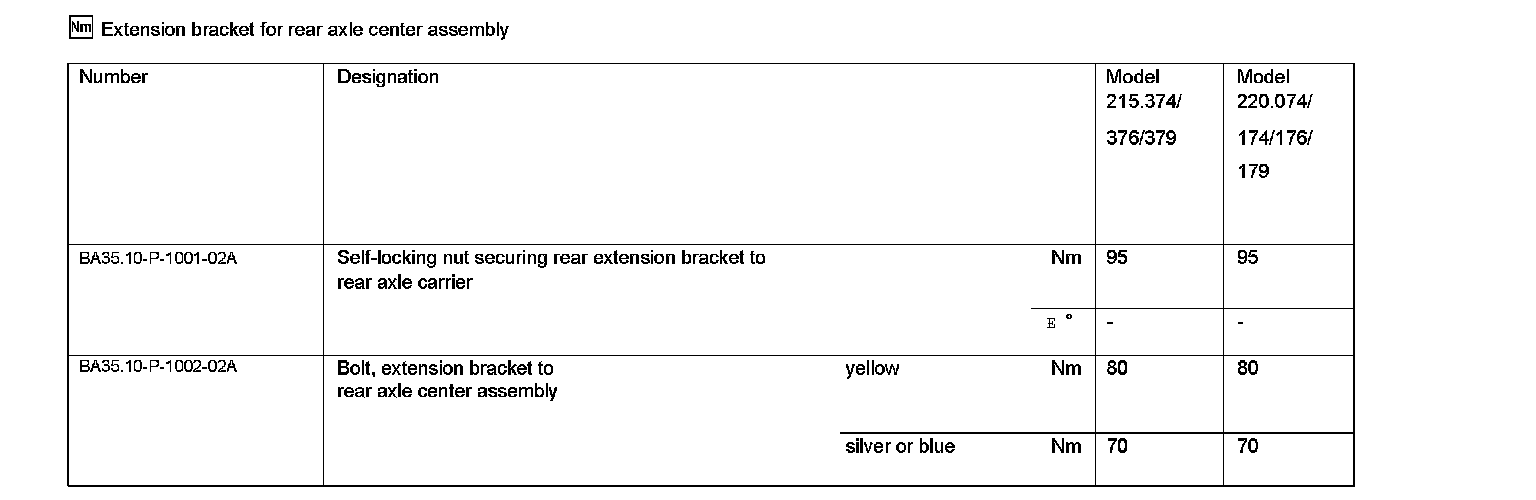

Extension Bracket For Rear Axle Center Assembly:

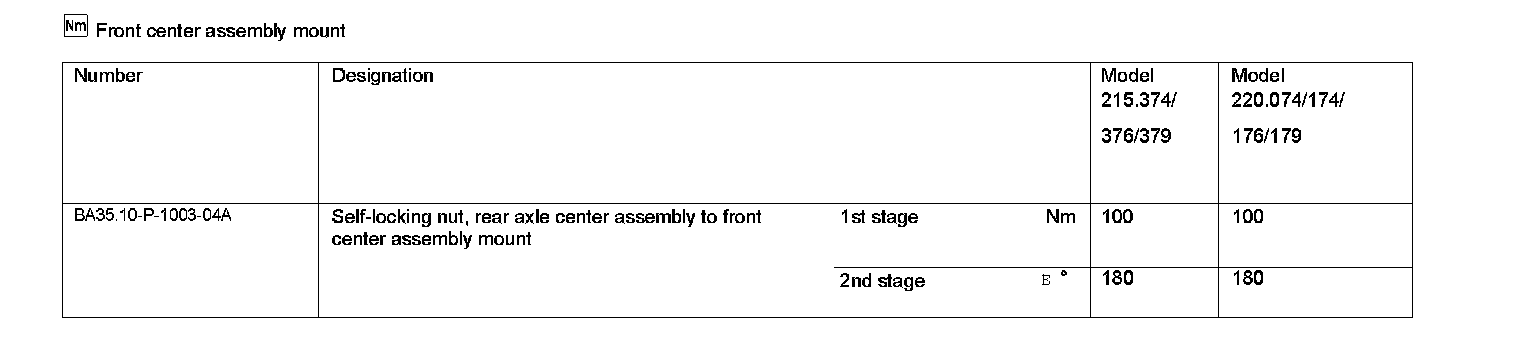

Front Center Assembly Mount:

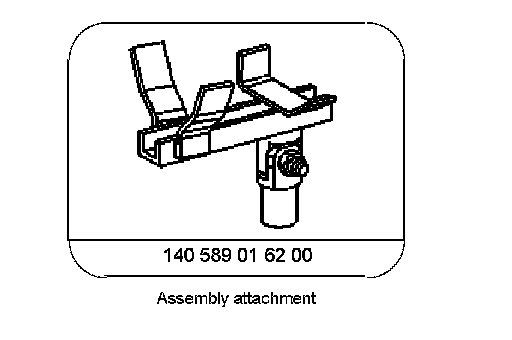

Special Tools:

Auxiliary Repair Materials:
