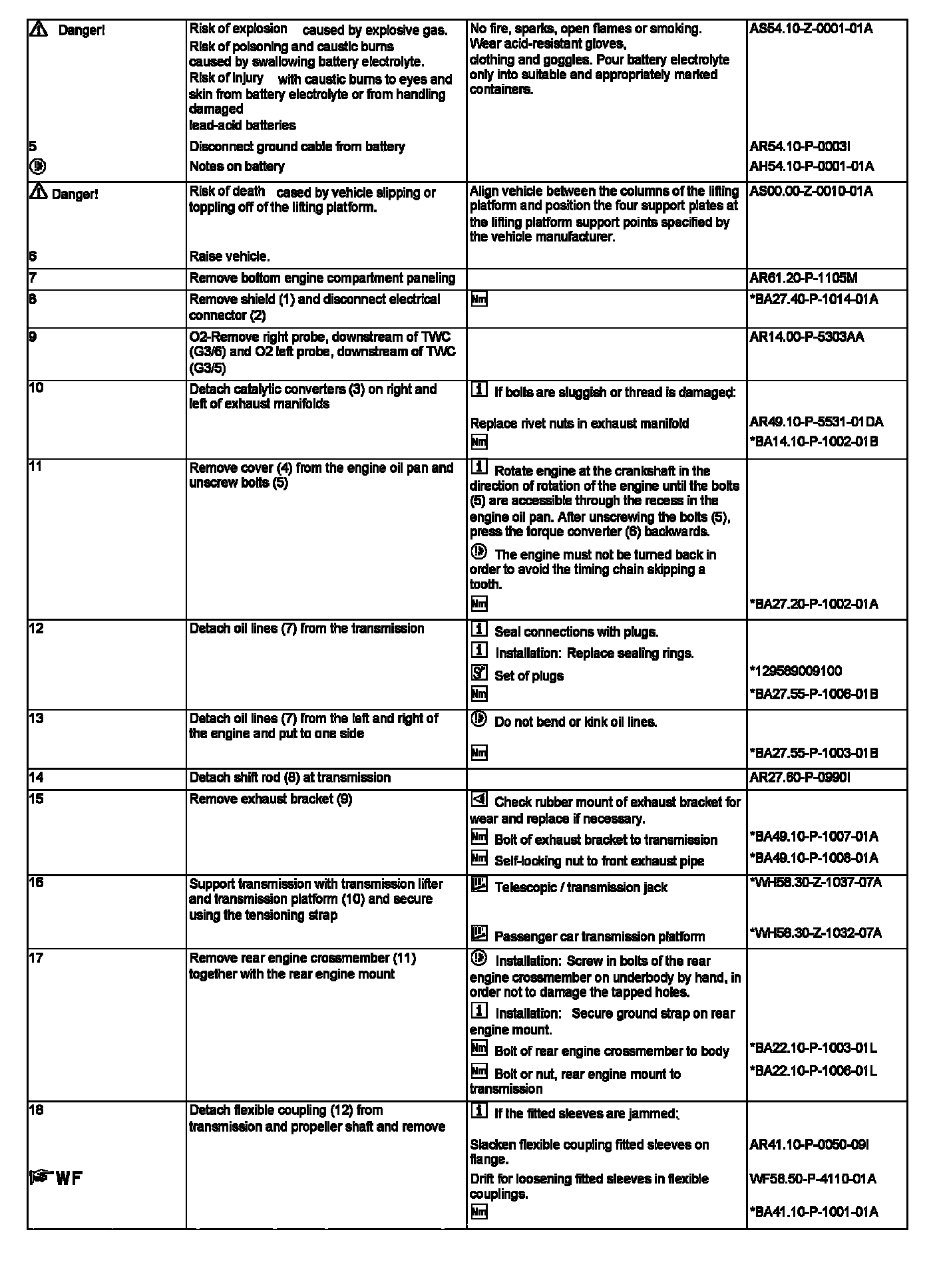

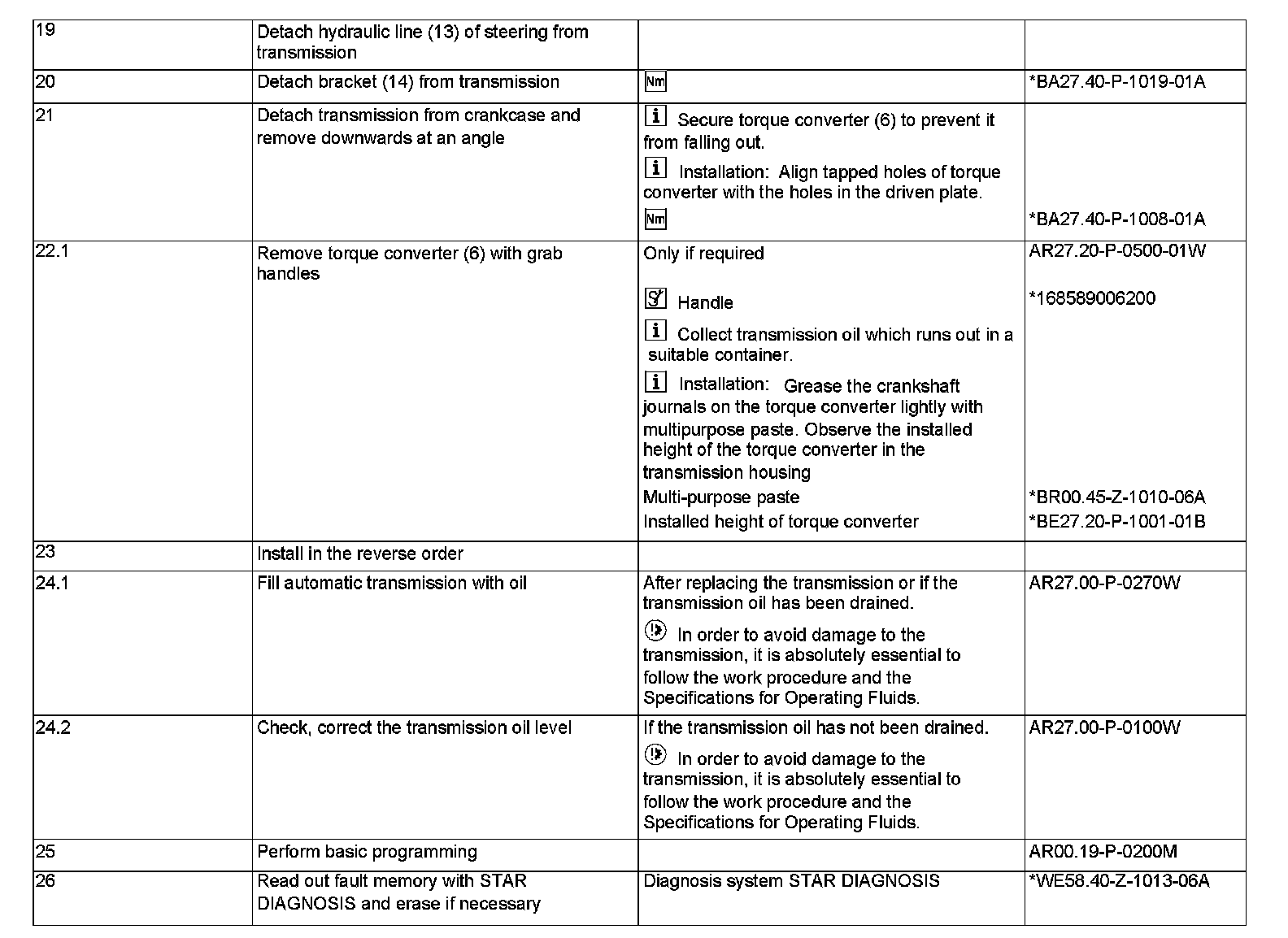

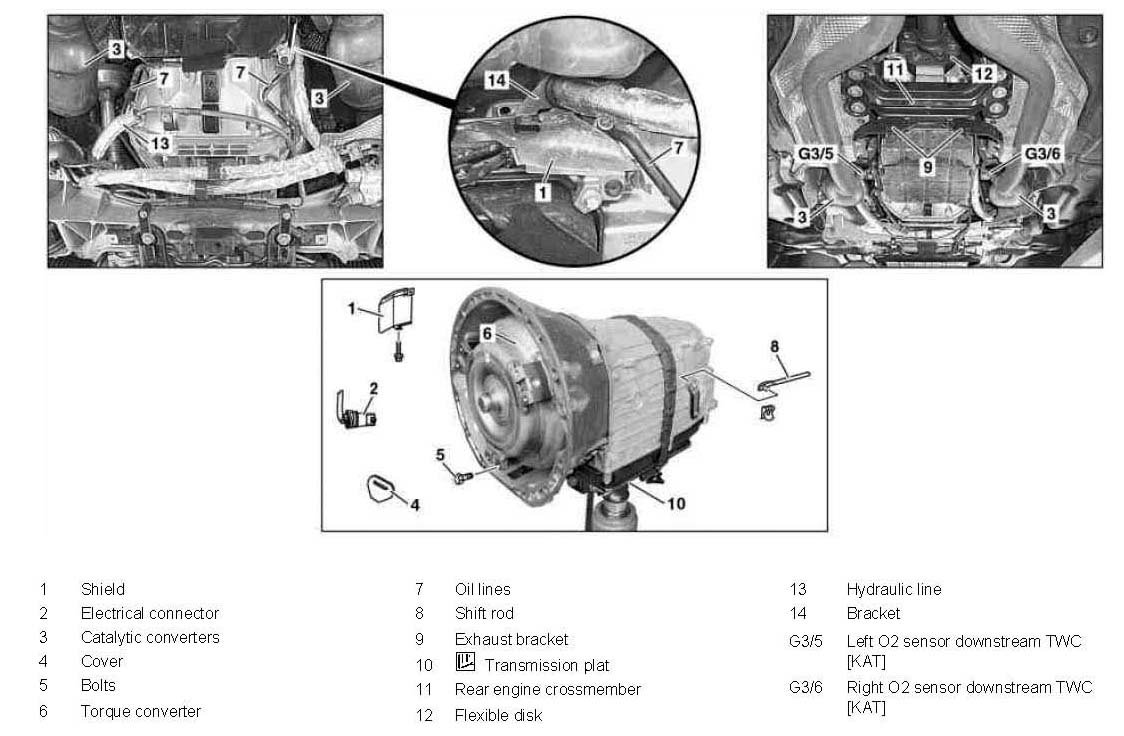

AR27.10-P-0500IA Remove/Install Transmission With Torque Converter

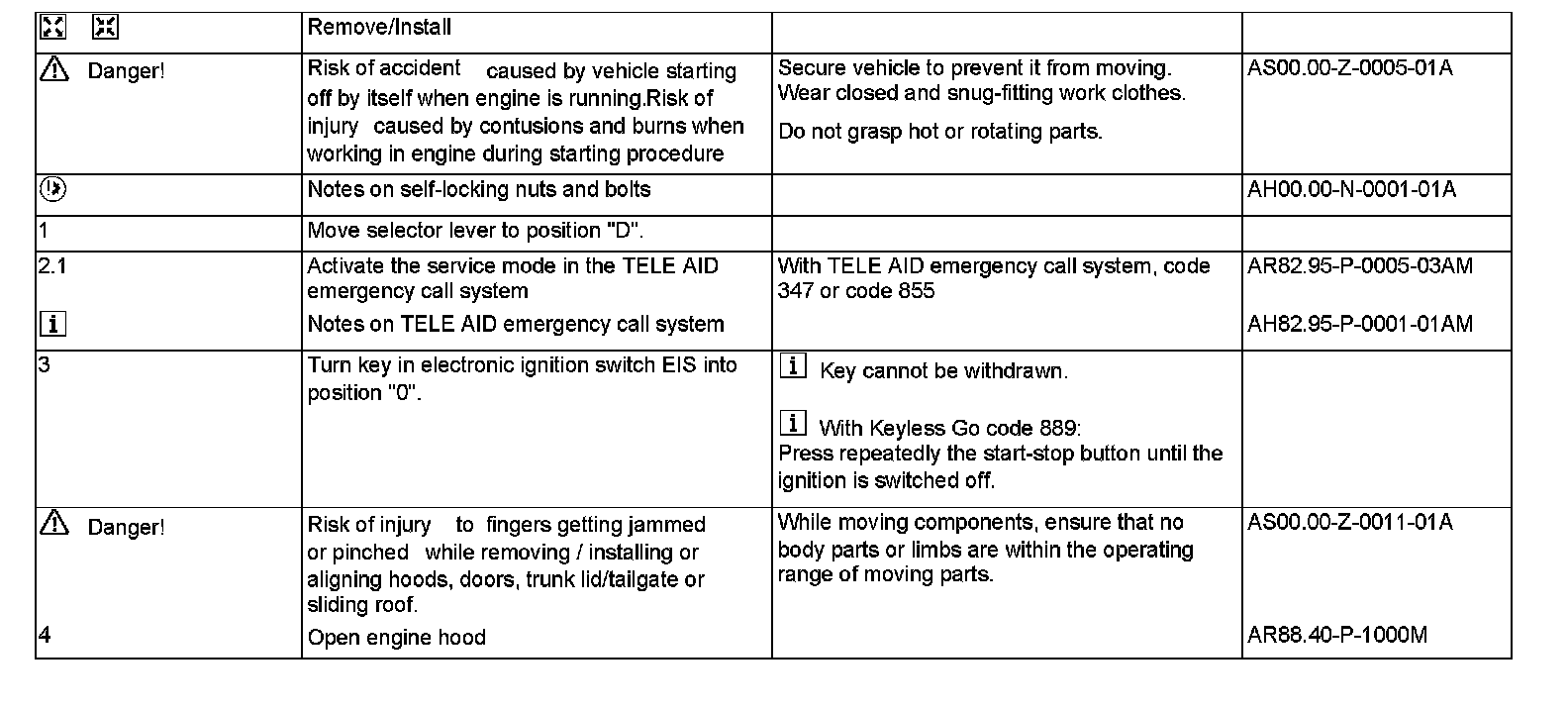

Remove/install transmission with torque converter
- with transmission 722.9

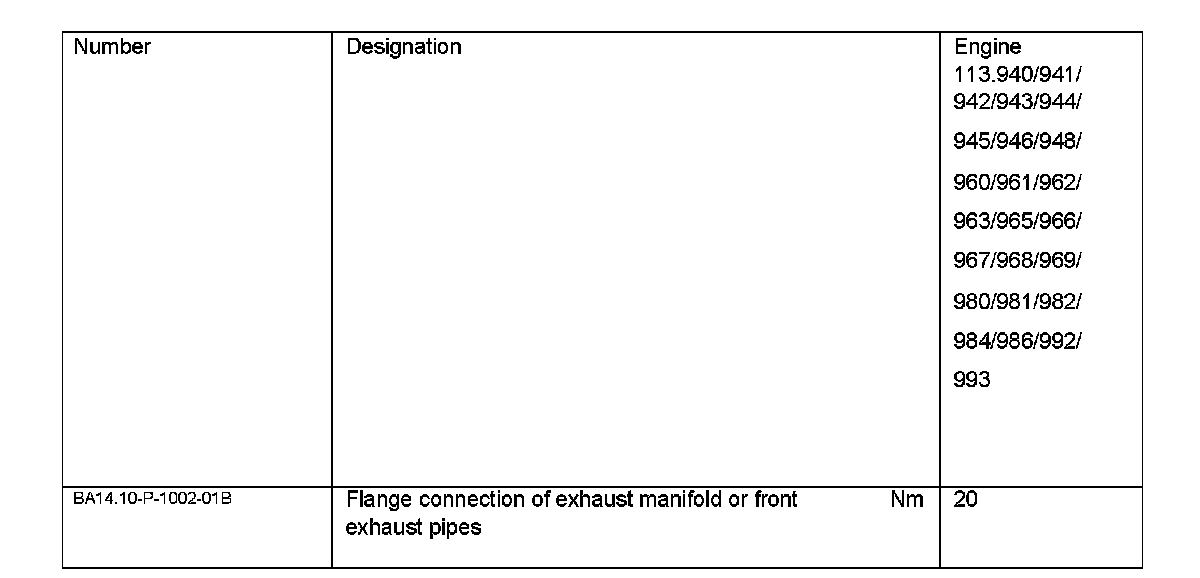

Exhaust manifold:

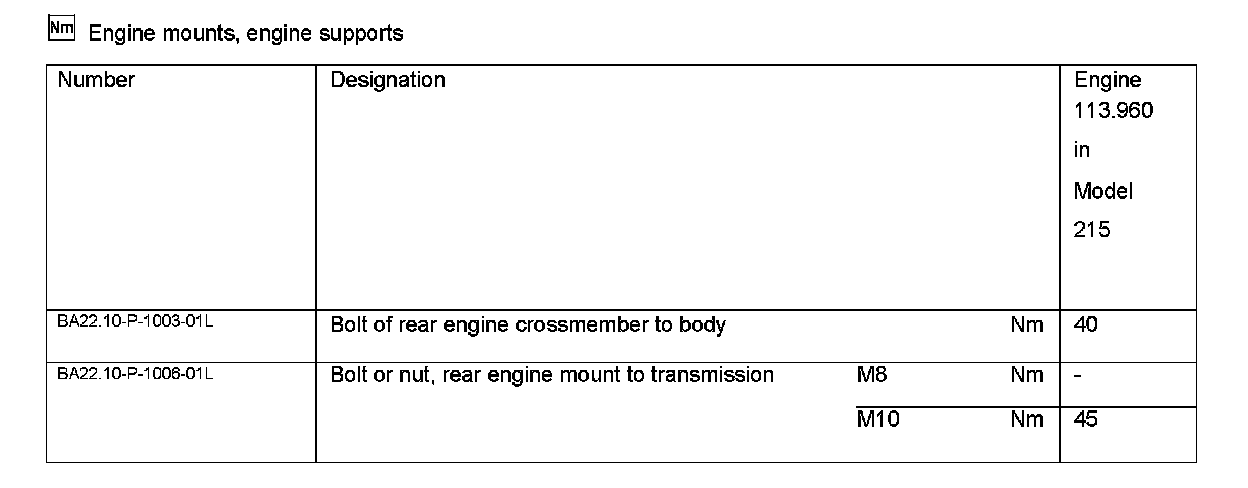

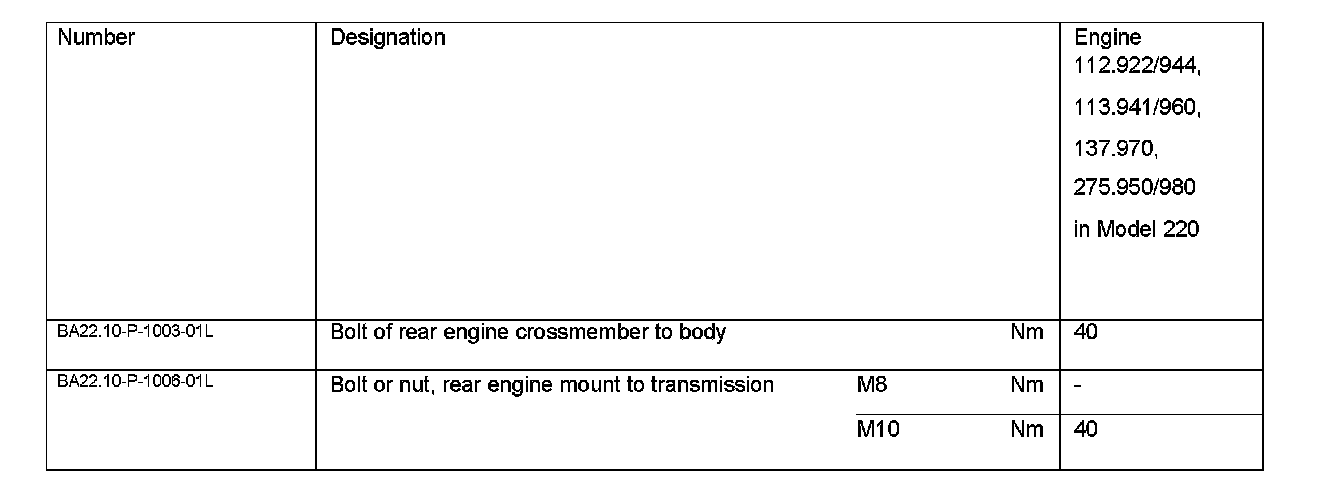

Engine mounts, engine supports:
