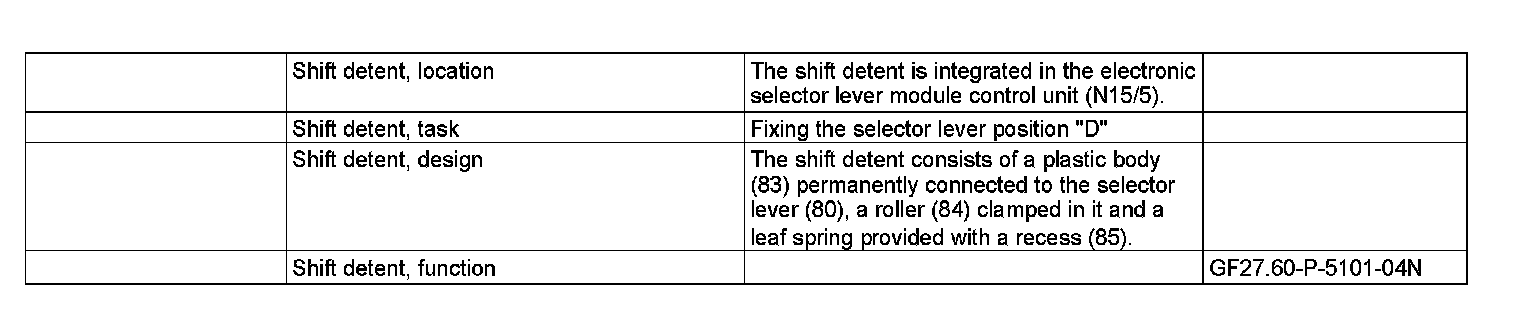

GF27.60-P-5101N Location / Task / Design / Function of Shift Detent

GF27.60-P-5101N Location / Task / Design / Function of Shift Detent
TRANSMISSION 722.9 in MODEL 215, 220
TRANSMISSION 722.9 in MODEL 463.303 /340 /341 up to 31.5.12
TRANSMISSION 722.9 in MODEL 230 up to Model Year 2008

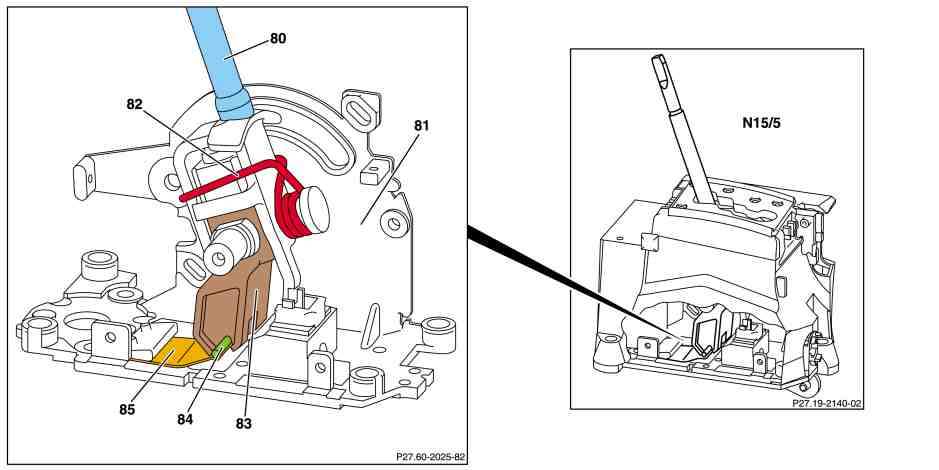

80 Selector lever
81 base body
82 Spring
83 Plastic body
84 Roller
85 Leaf spring
N15/5 Electronic selector lever control unit
