GF27.19-P-5141GA Kickdown Switch, Location / Task / Design



GF27.19-P-5141GA Kickdown switch, location / task / design
- TRANSMISSION 722.6 in MODELS 163, 170, 202, 208, 210
- with touch shift
- TRANSMISSION 722.6 in MODELS 203, 215, 220

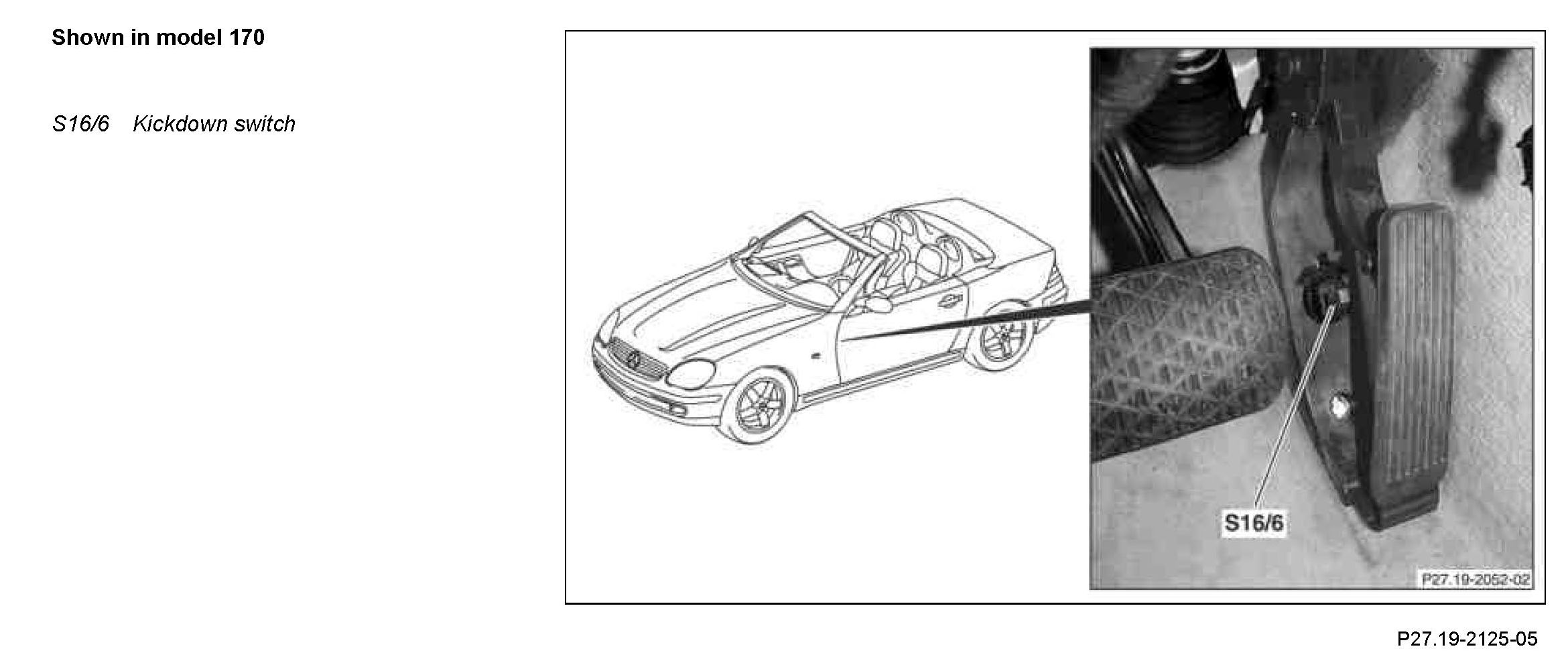

Component Identification:

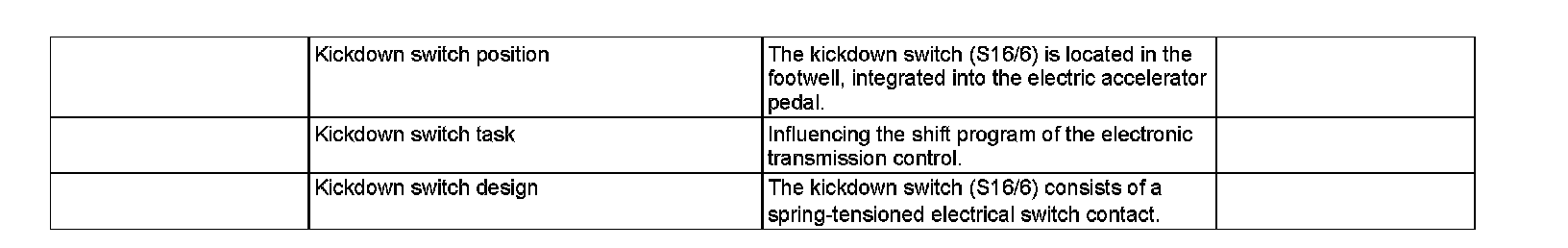

Kickdown switch:
