Home >> Mercedes Benz >> 2002 >> S 500 (220.175) V8-5.0L (113.960) >> Repair and Diagnosis >> Transmission and Drivetrain >> Automatic Transmission/Transaxle >> Description and Operation >> GF27.19-P-5140GA Electronic Selector Lever Module Control Unit, Location/Task

GF27.19-P-5140GA Electronic Selector Lever Module Control Unit, Location/Task



GF27.19-P-5140GA Electronic selector lever module control unit, location/task
- TRANSMISSION 722.6
- up to model year 08

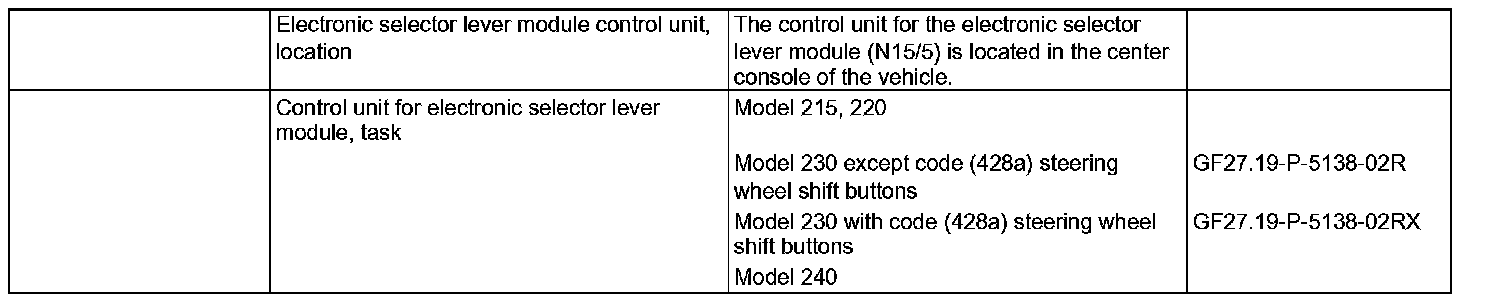

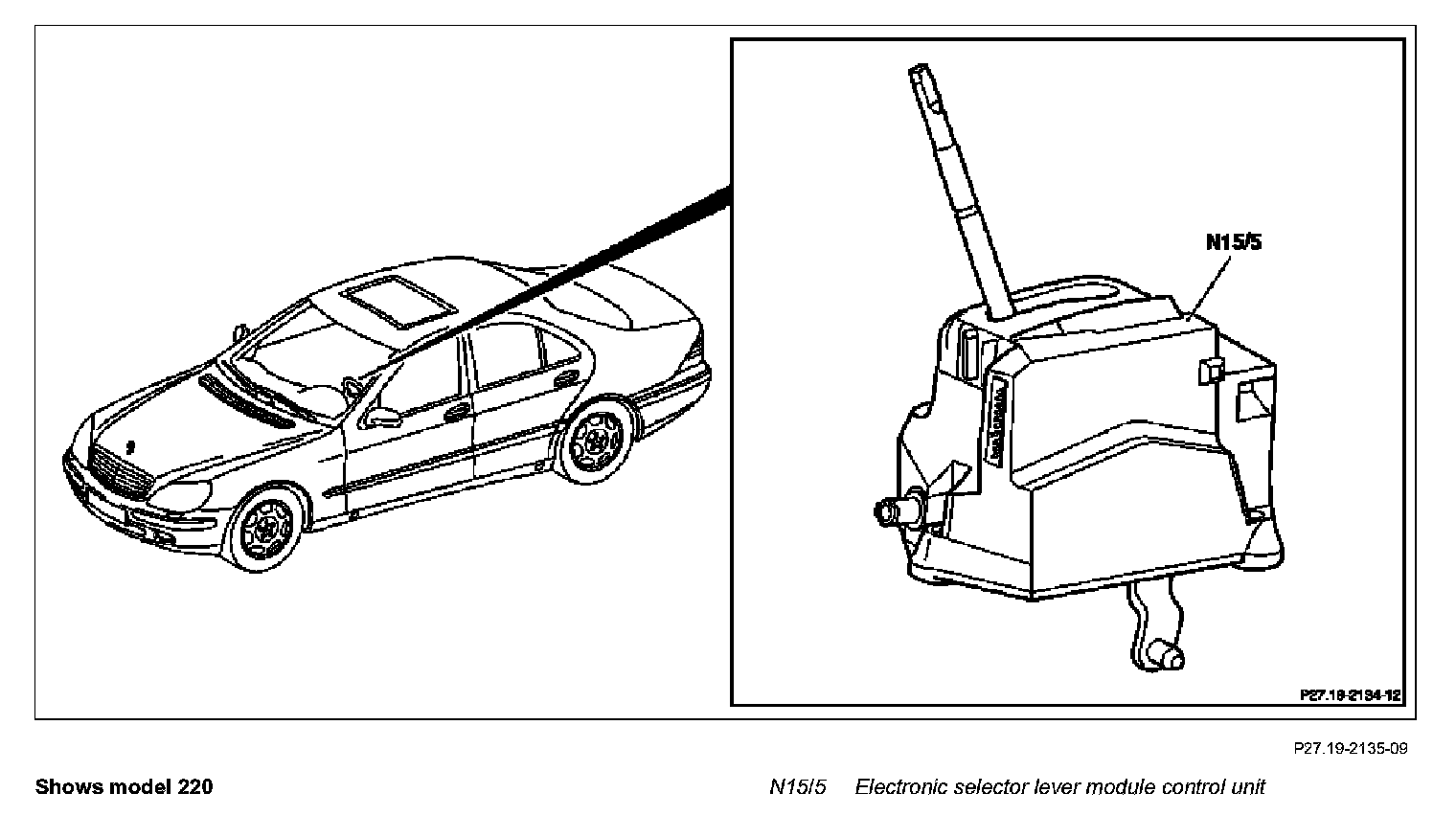

Component Identification:
