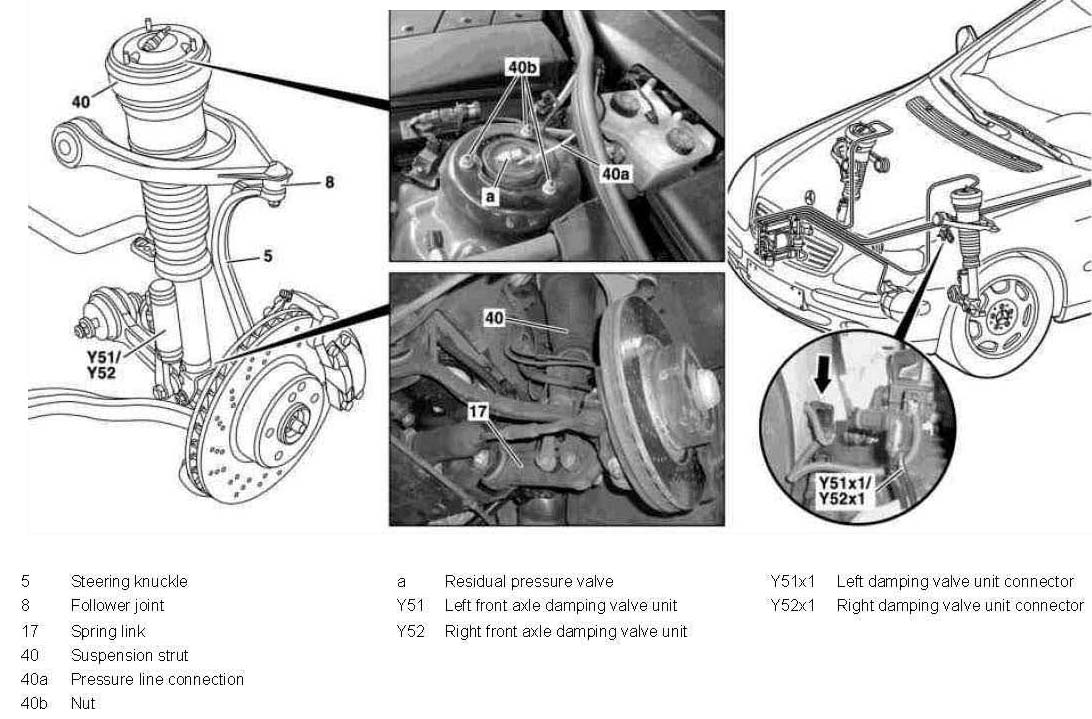

AR32.25-P-1017MB Remove/Install the Suspension Strut



AR32.25-P-1017MB Remove/install the suspension strut
- with CODE (979) Special protection version
- with CODE (Z07) Top protection

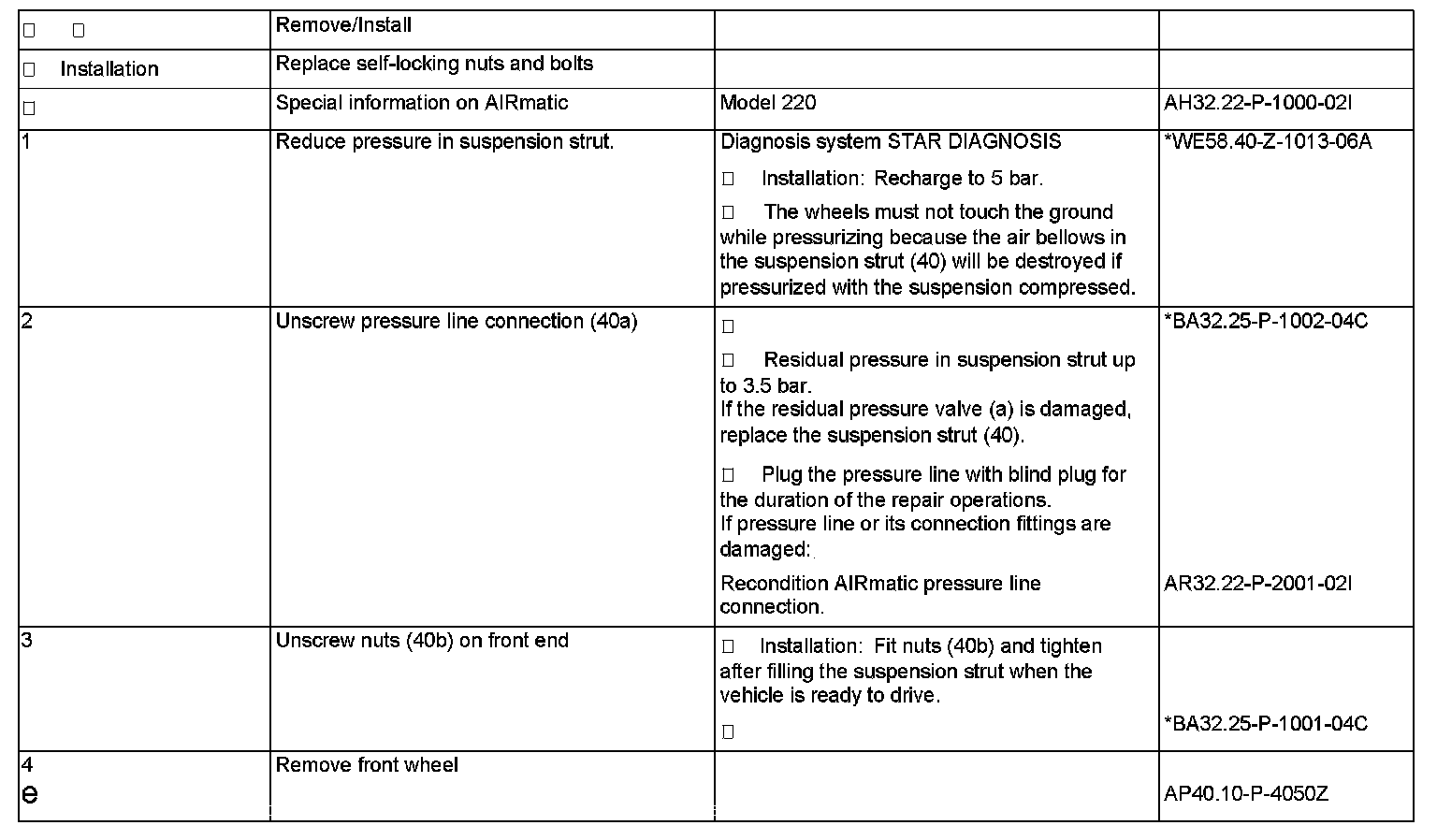

Steps 1-4:

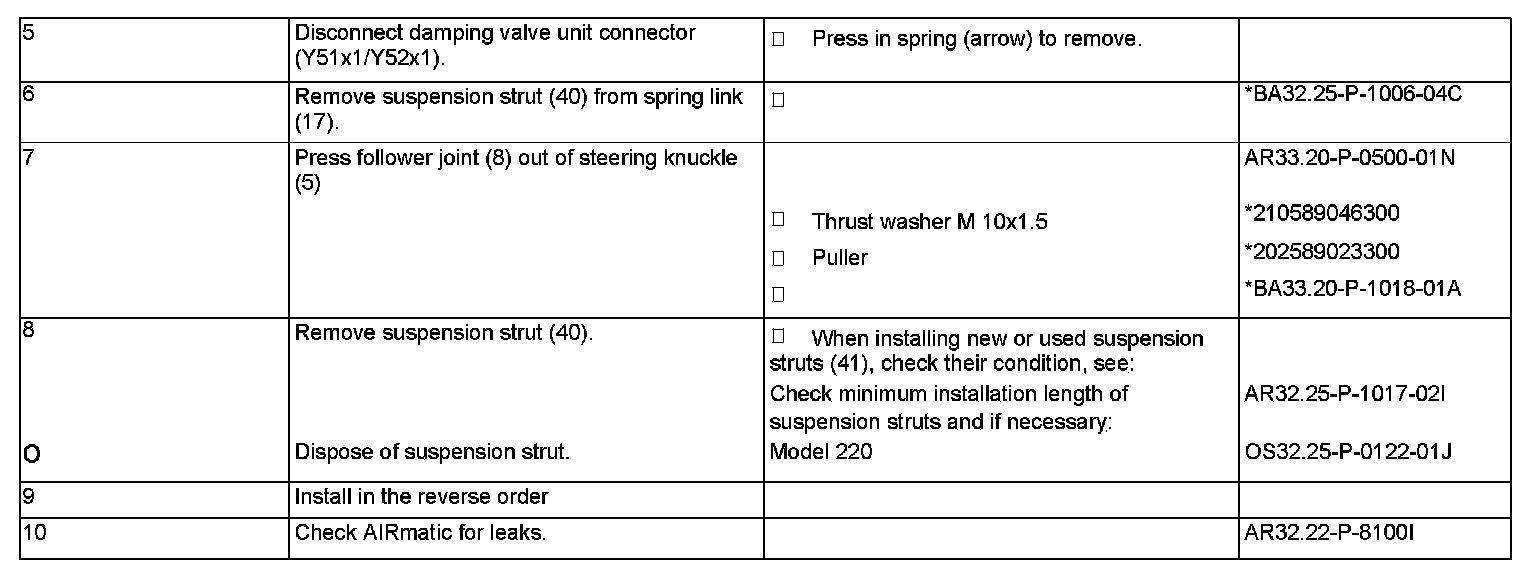

Steps 5-10:
