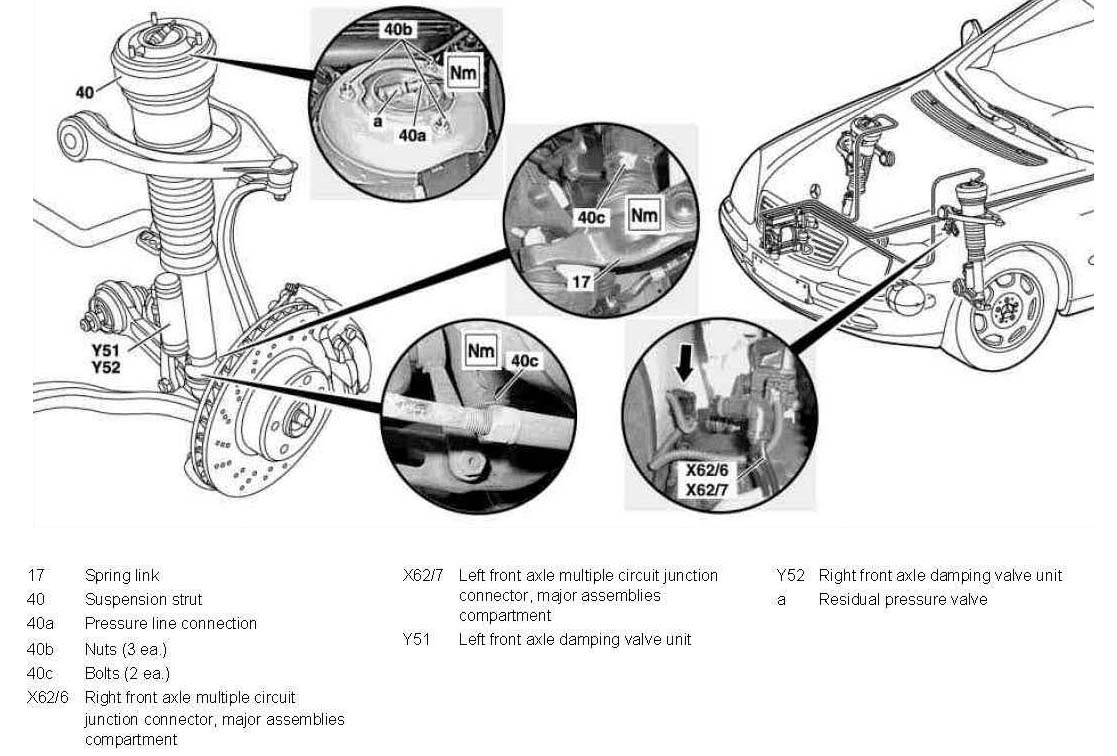

AR32.25-P-1017I Remove/Install Front Suspension Strut



AR32.25-P-1017I Remove/install the suspension assembly
- Except CODE (487a) Active Body Control (ABC)

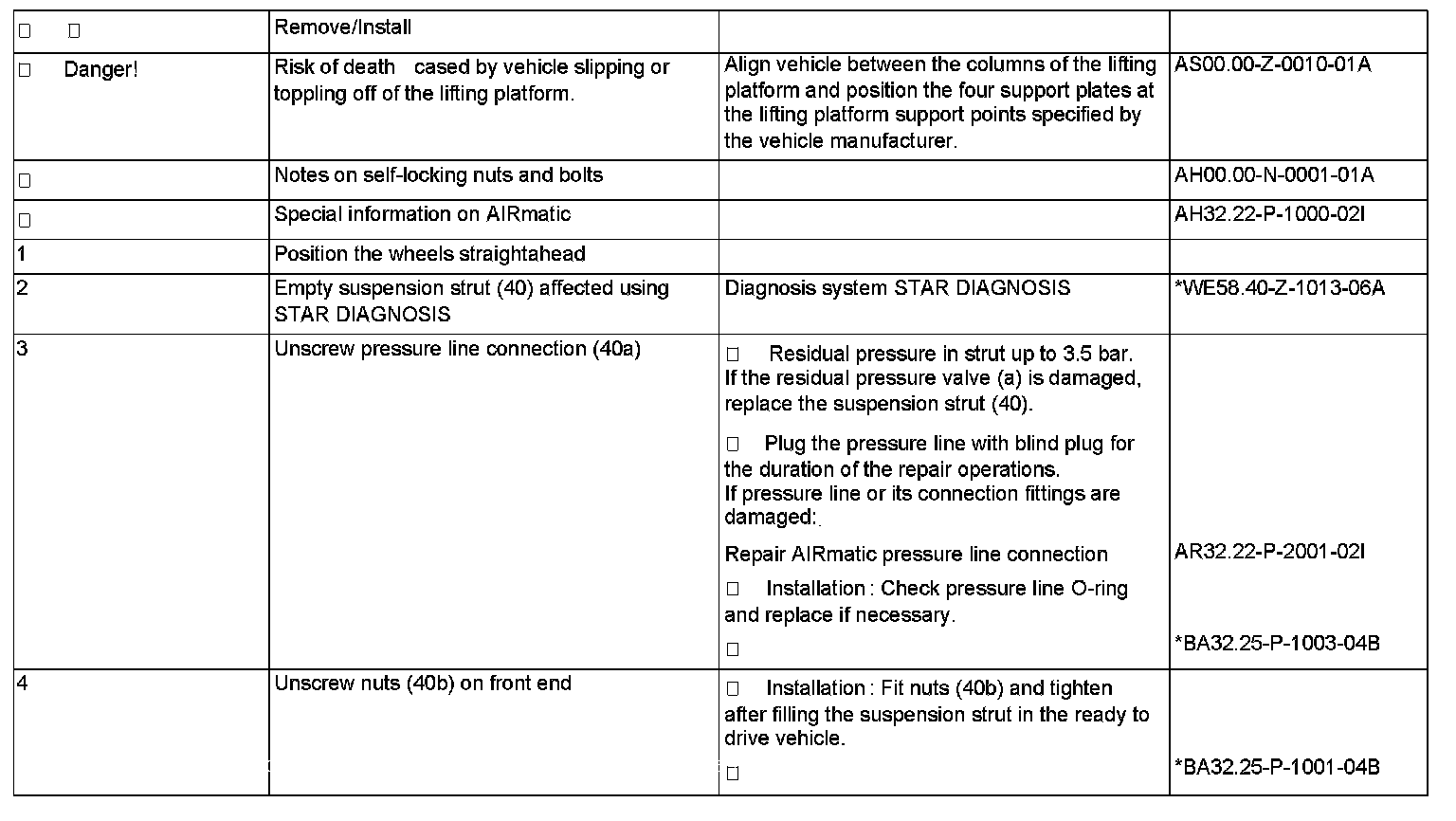

Steps 1-4:

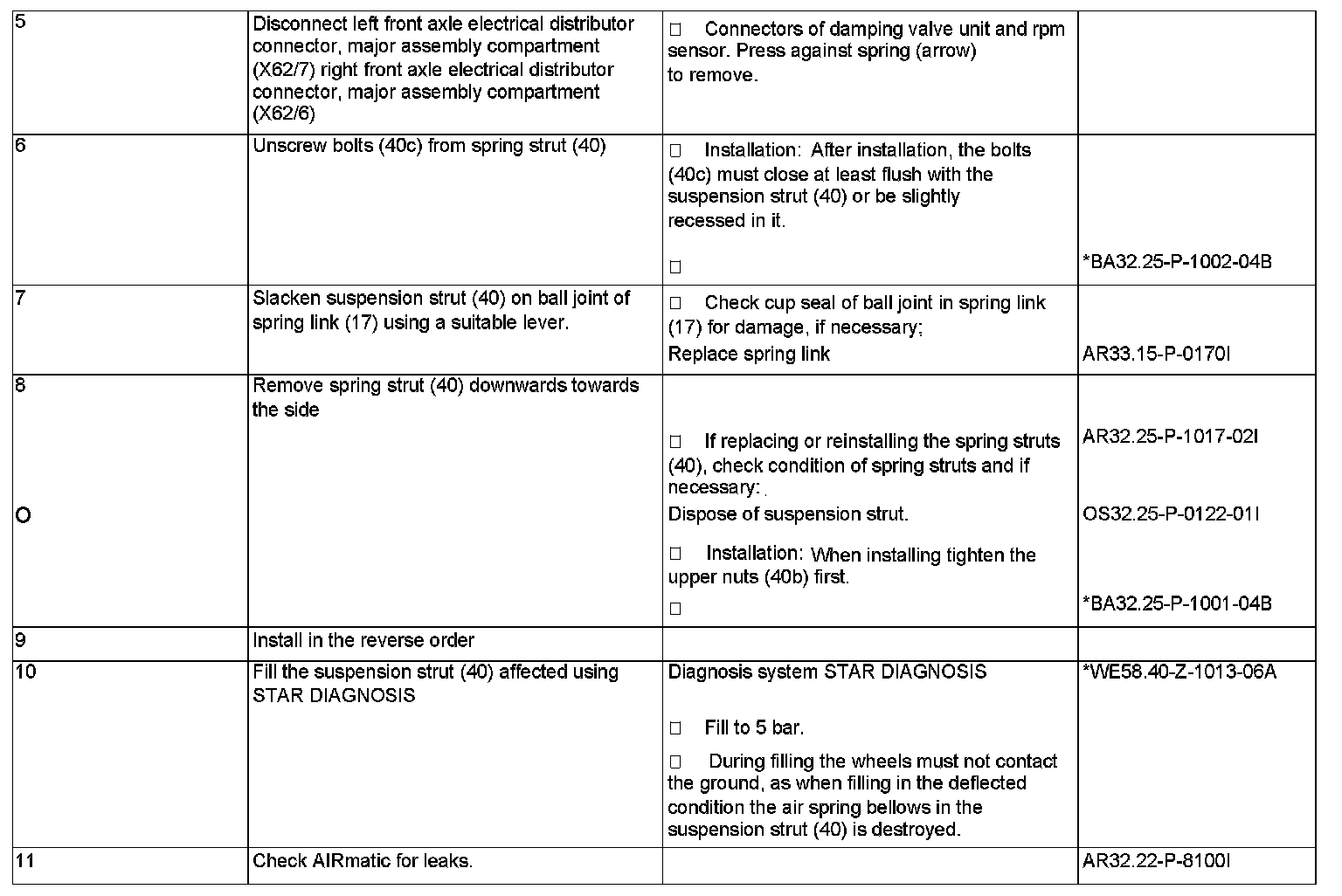

Steps 5-11:
