AR32.25-P-1016MB Remove/Install Rear Suspension Strut



AR32.25-P-1016MB Remove/install rear suspension strut
- With CODE (Z07) Top protection

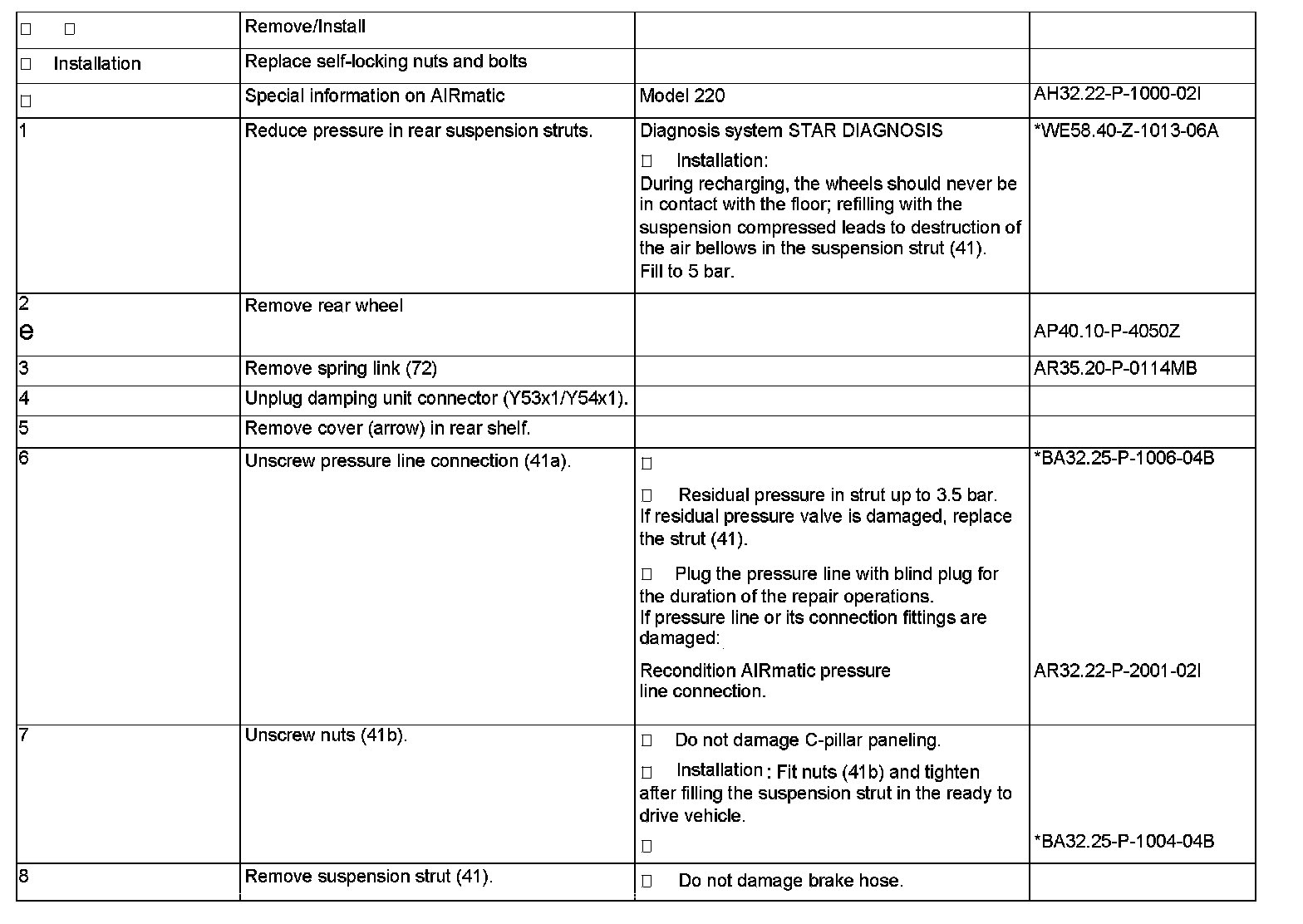

Steps 1-8:

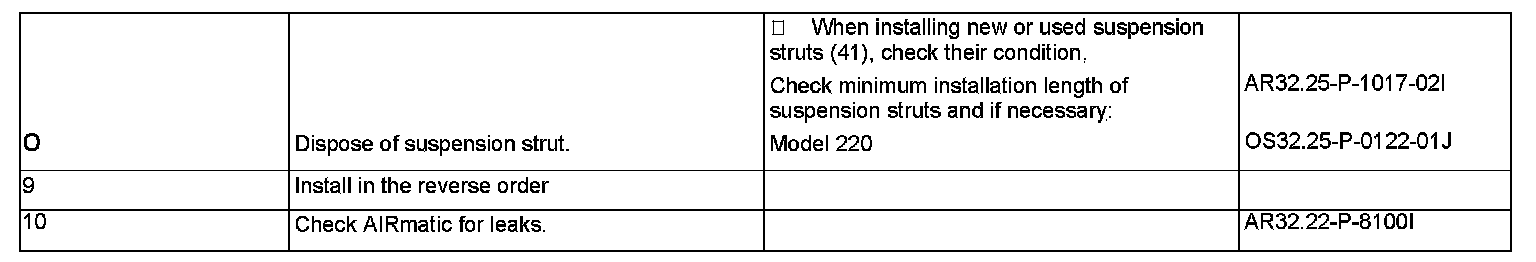

Steps 9-10:
