AR32.22-P-1600I Seal Top Air Suspension Strut



AR32.22-P-1600I Seal top air suspension strut
- Except CODE (487a) Active Body Control (ABC)

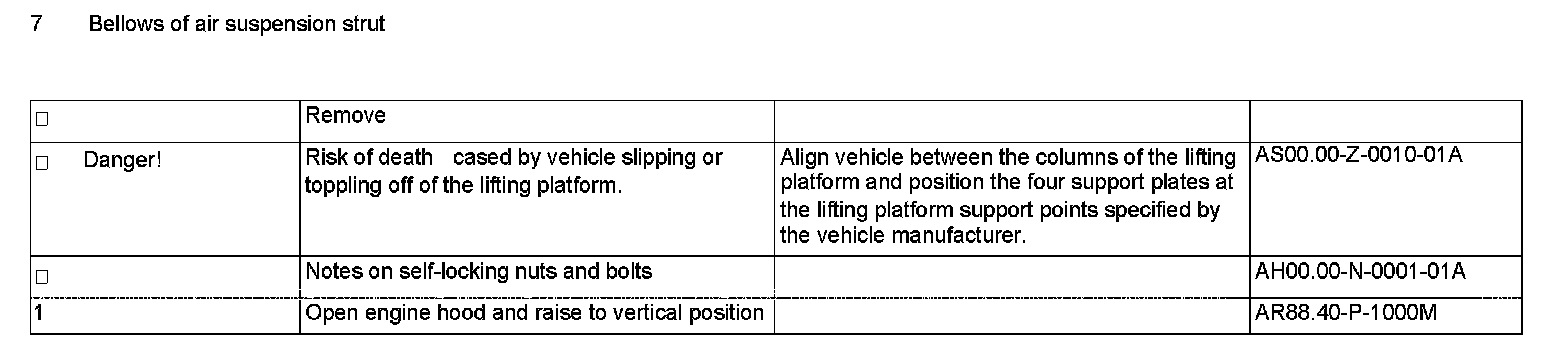

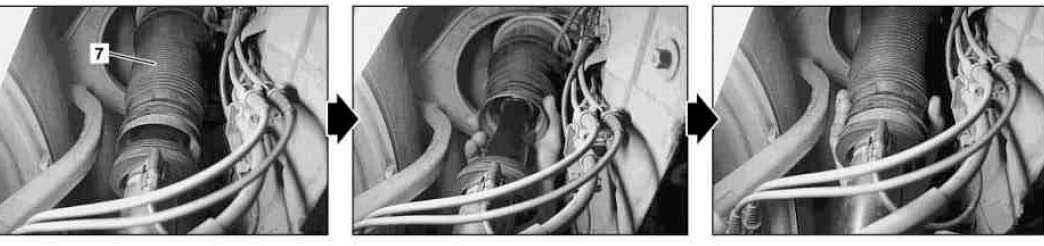

Step 1:

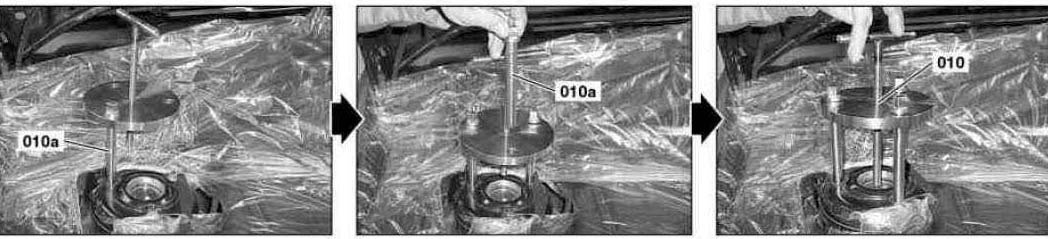

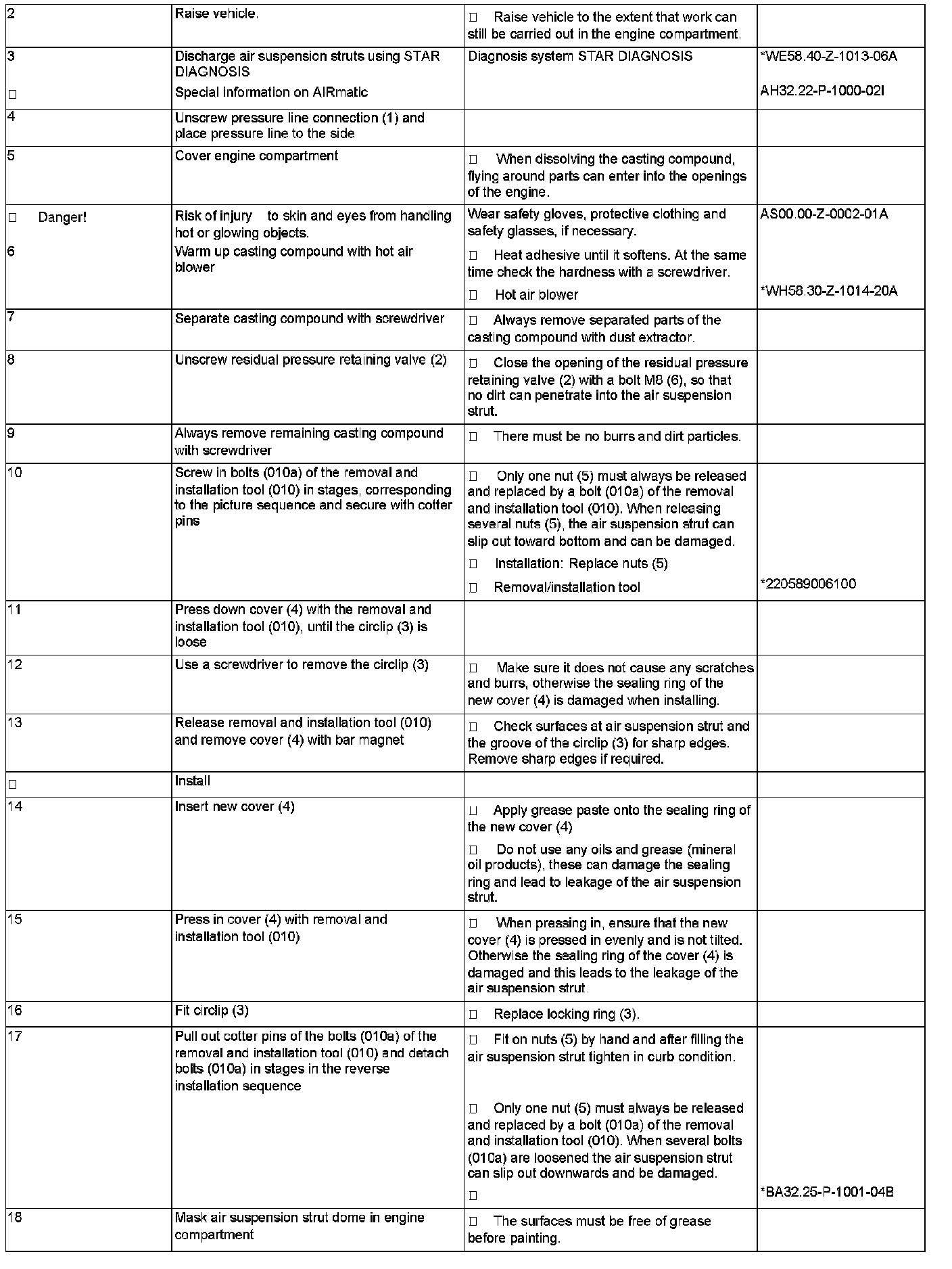

Steps 2-18:

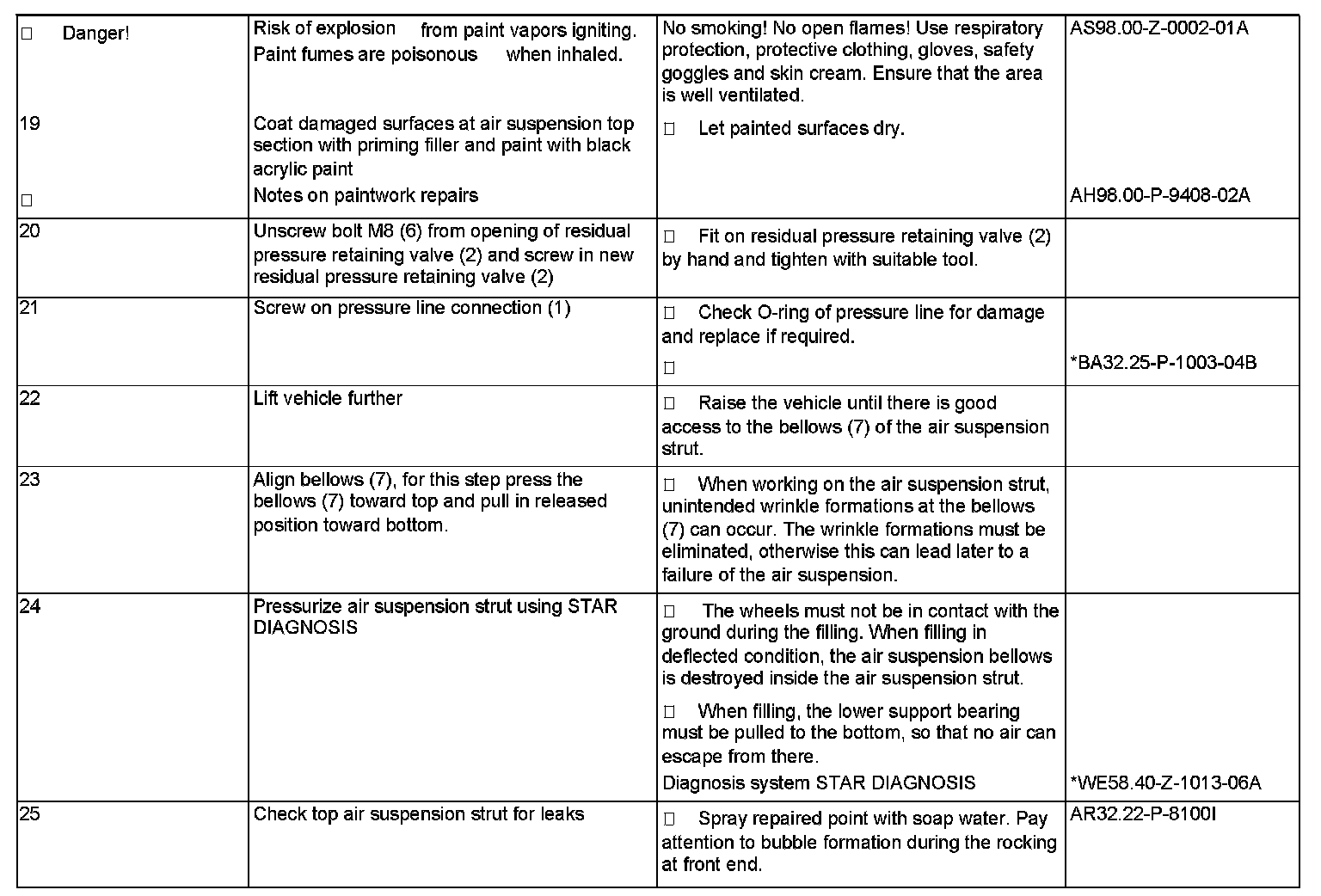

Steps 19-25:
