AR32.50-P-0021N Fill Up and Vent the Active-Body-Control (ABC) System

AR32.50-P-0021N Fill Up And Vent The Active-Body-Control (ABC) System
MODEL 215
MODEL 220
- with CODE (487) Active Body Control (ABC)
- except CODE (979) Special protection version
MODEL 230
- with CODE (487) Active Body Control (ABC)

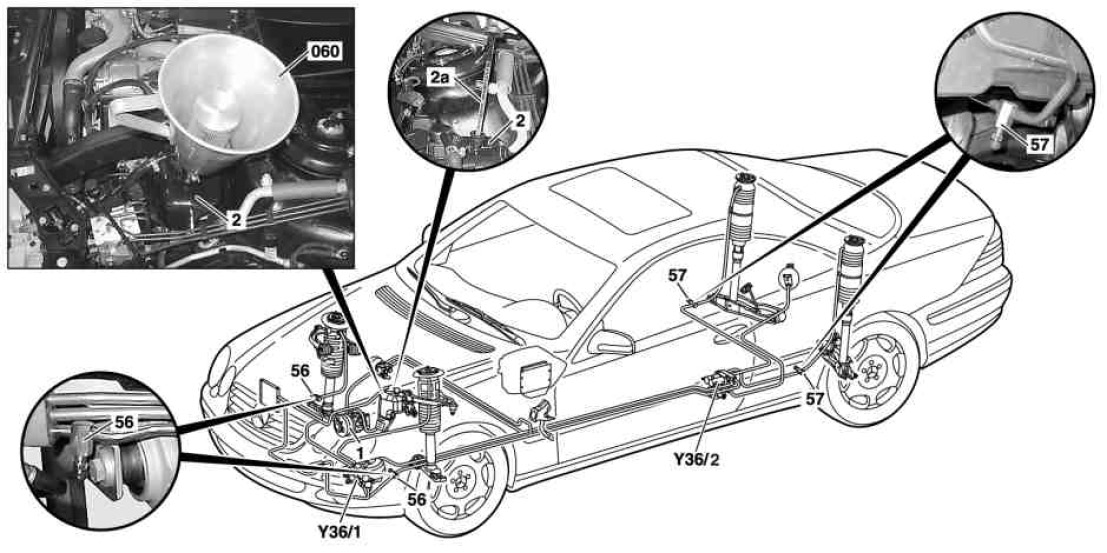

Shown on model 215

060 Funnel with filter
1 Tandem pump/hydraulic pump
2 ABC system expansion reservoir
2a Dipstick
56 Bleed screws
57 Bleed screws
Y36/1 ABC front axle valve unit
Y36/2 ABC rear axle valve unit

















126 589 12 63 00
Funnel





124 589 24 21 00
Pressure pump
