AR82.10-P-0005N Remove/Install Rear Axle Level Sensor

Remove/install rear axle level sensor







CAUTION: Replace self-locking nuts and bolts

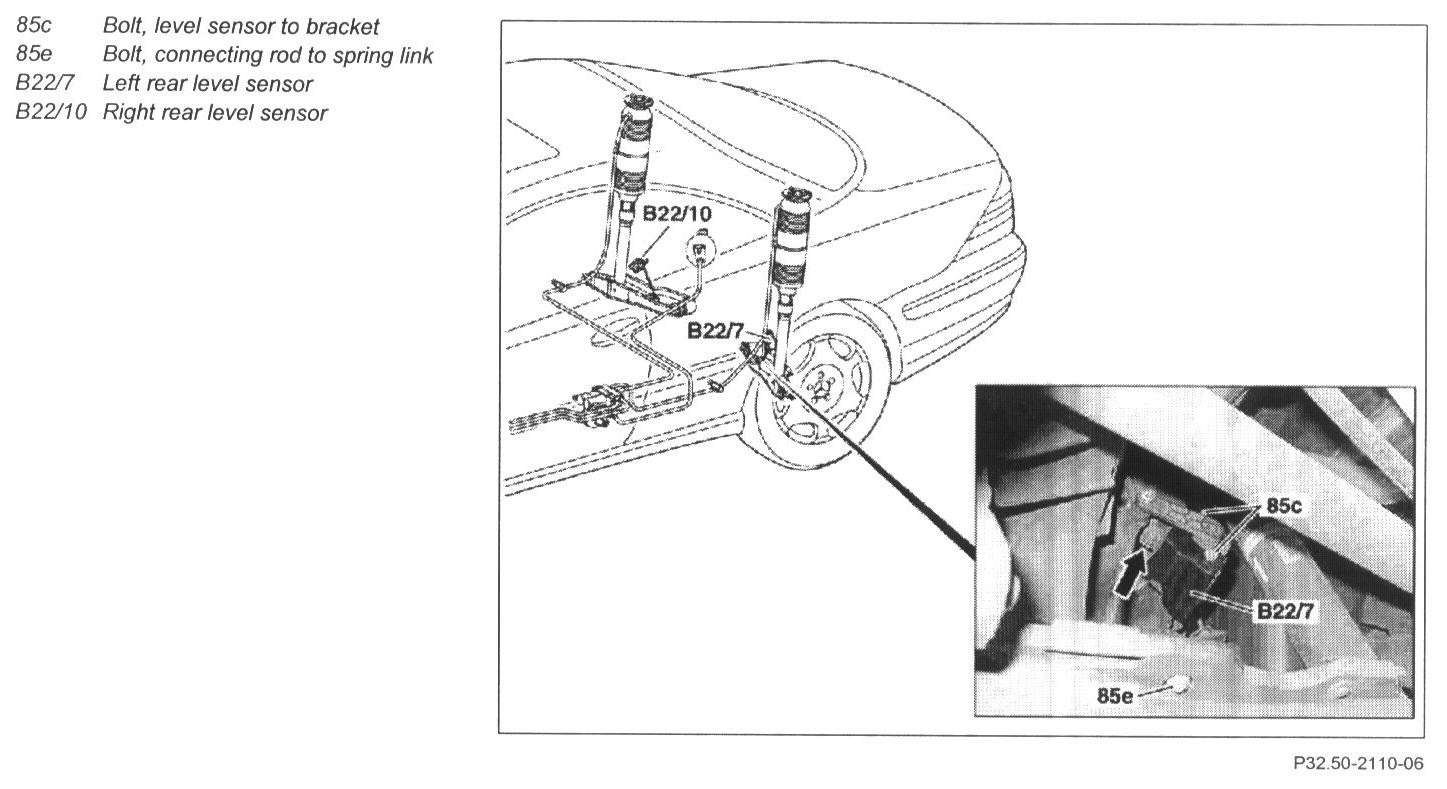

1 Disconnect connectors (arrow) at rear left and right level sensors (B22/7, B22/10).
2 Unscrew nut (85e) on connecting rod from rear left and right level sensors (B22/7, B22/10)
3 Unscrew bolts (85c) and remove level sensor

CAUTION: Installation: Pay attention to the installation position of link rod!

- Bolt, level sensor to retaining plate: 4 Nm

4 Install in the reverse order.
5 After replacing the level sensors, calibrate vehicle level with Star Diagnosis (level calibration).
