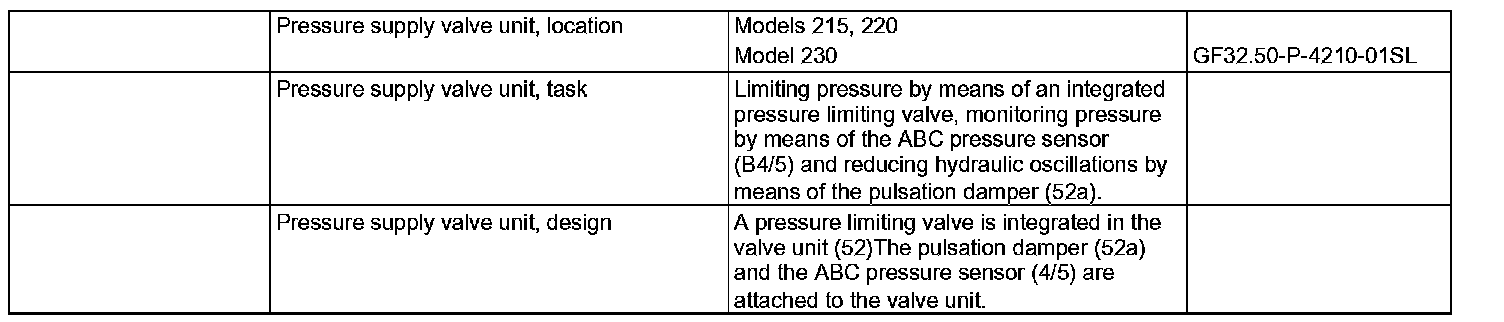

GF32.50-P-4210A Pressure Supply Valve Unit, Location/Task/Design



GF32.50-P-4210A Pressure supply valve unit, location/task/design
- with CODE (487) Active body control (ABC)

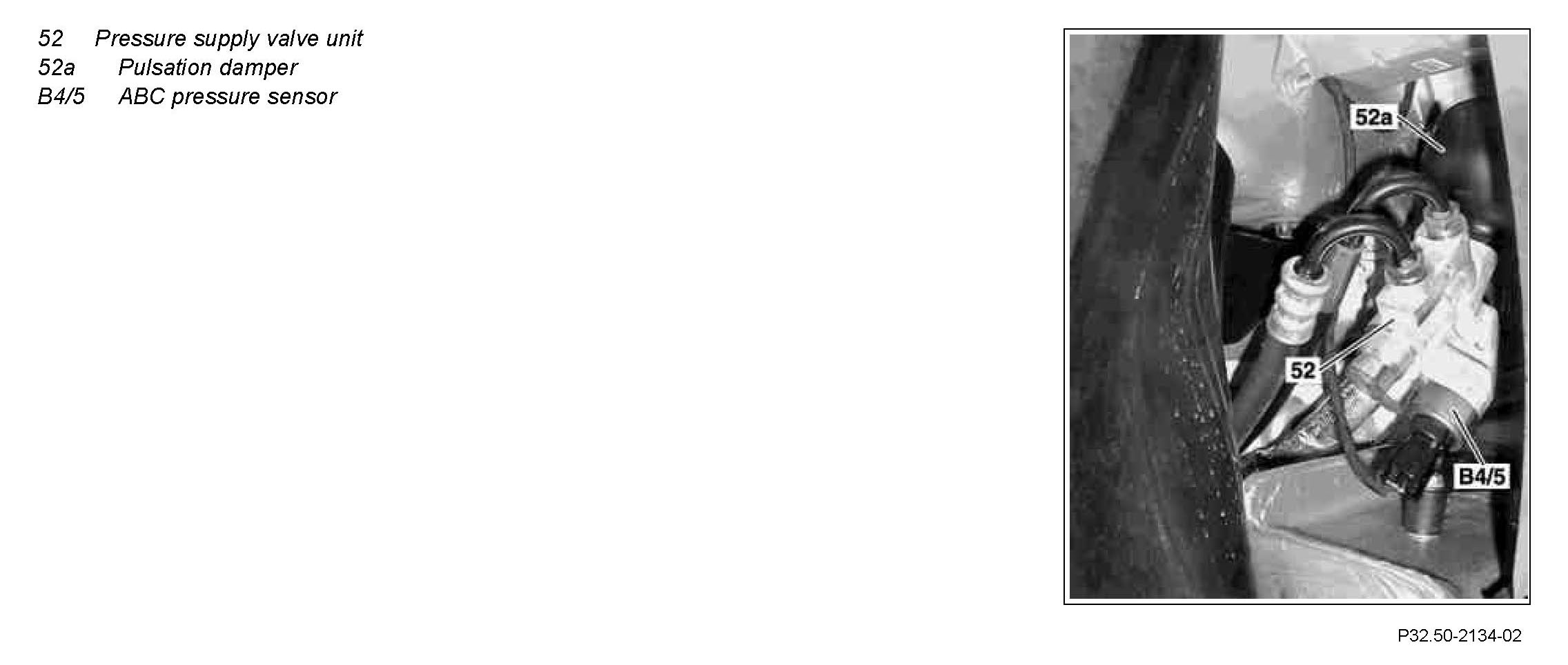

Component Identification:
