GF32.50-P-4200A Valve Unit, Location/Task/Design/Function

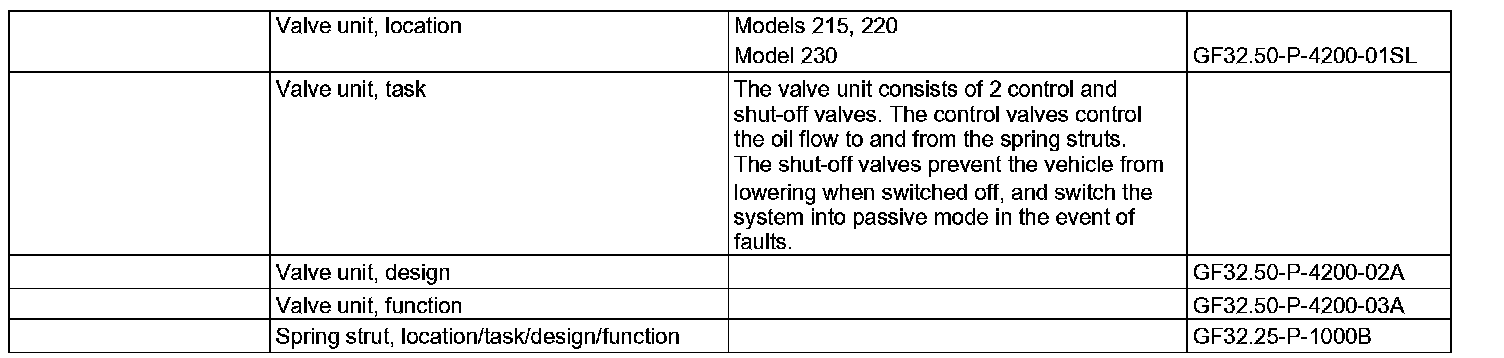

GF32.50-P-4200A Valve unit, location/task/design/function
- with CODE (487) Active body control (ABC)

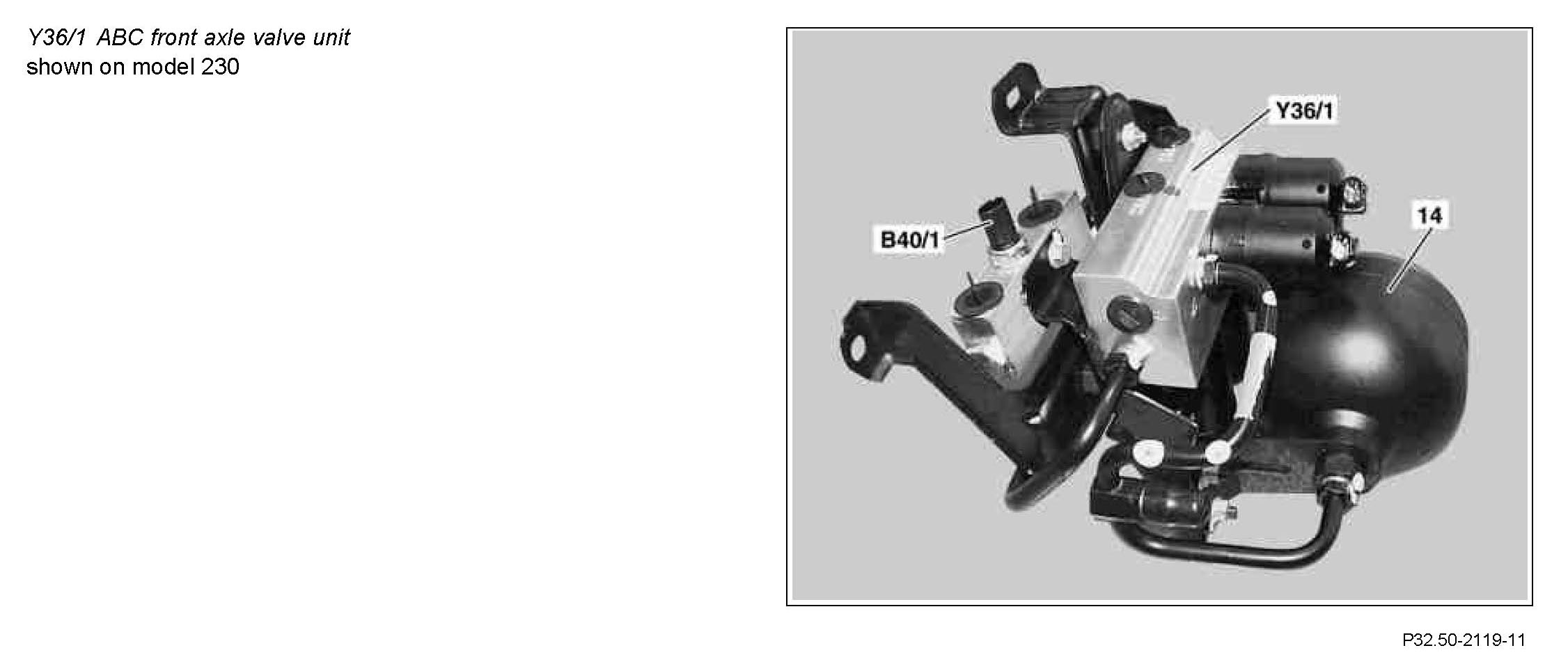

Component Identification:
