GF32.50-P-4004D ABC Level Adjustment Function

GF32.50-P-4004B ABC Level Adjustment Function

Model 220
with CODE (487a) Active body control (ABC)
with CODE (491) U.S. Version






Information:
The values shown are subject to changes, the current values are listed in the chassis alignment check.

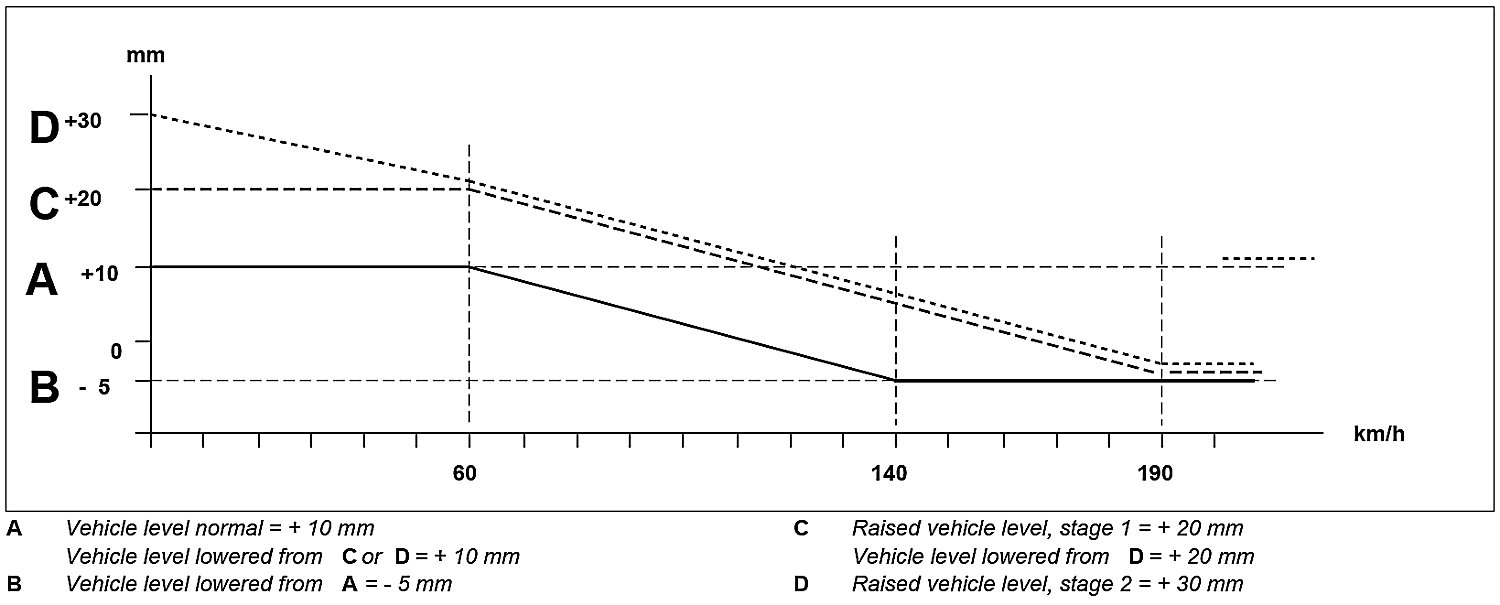

The vehicle is lowered or raised depending on the vehicle speed and setting on the level control switch (N72/1s2). There are 4 vehicle level stage options:
- Vehicle level normal
- Vehicle level lowered (only automatically)
- Vehicle level raised, stage 1 (only manually)
- Vehicle level raised, stage 2 (only manually)

Information:
The switch position operated by the driver remains stored even after "ignition OFF" until it is changed again manually.

Level control switch (N72/1s2) not operated
- Engine running
- The vehicle is at normal level A (+10mm)
- Between 60 km/h and 140 km/h - continuous automatic lowering of vehicle level to lowered level B (-5mm).
- Between 140 km/h and 60 km/h - continous resetting to normal level A (+10 mm).

Level control switch (N72/1s2) operated in stage 1
- Engine running
- The vehicle is at raised level, stage 1 C (+20 mm)
- Between 60 km/h and 190 km/h - conintous automatic lowering of vehicle level to lowered level A (+10 mm).
- Between 190 km/h and 60 km/h - continous resetting to raised level, stage 1 C (+20 mm).

Level control switch (N72/1s2) operated in stage 2
- Engine running
- The vehicle is at raised level, stage 2 D (+30 mm)
- Between 0 km/h and 60 km/h - continous automatic lowering of vehicle level to raised level, stage 1 C (+20 mm)
- Between 60 km/h and 190 km/h - continous automatic lowering of vehicle level to raised level A (+10 mm)
- Between 190 km/h and 60 km/h - continous resetting to raised level, stage 1 C (+20 mm)
- Between 60 km/h and 0 km/h - continous resetting to raised level, stage 2 D (+30 mm)
