GF32.31-P-4200B Comfort and Sport Switch, Location/Task/Function

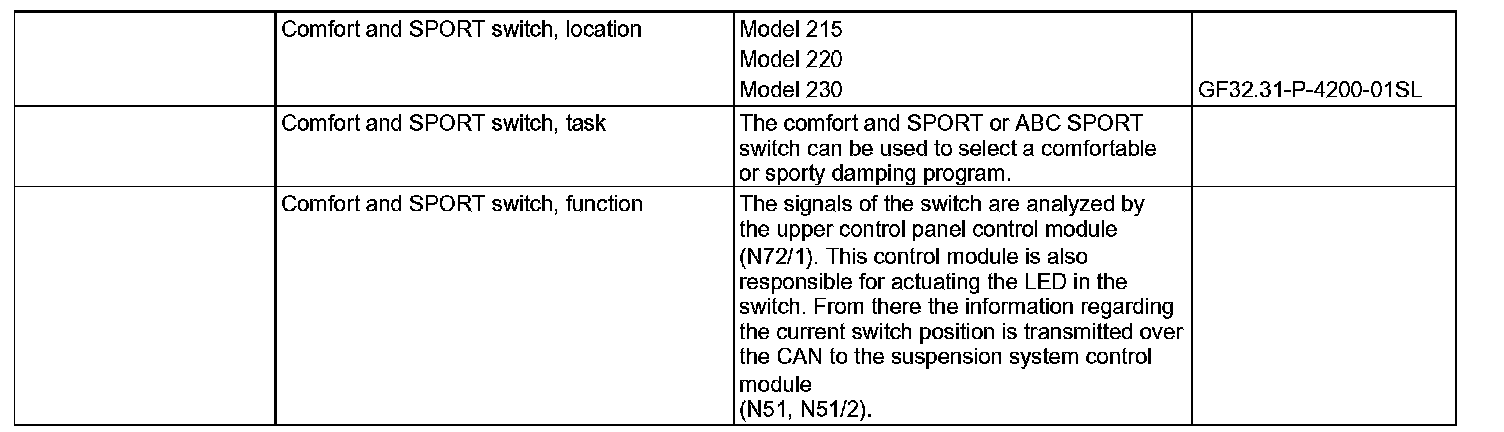

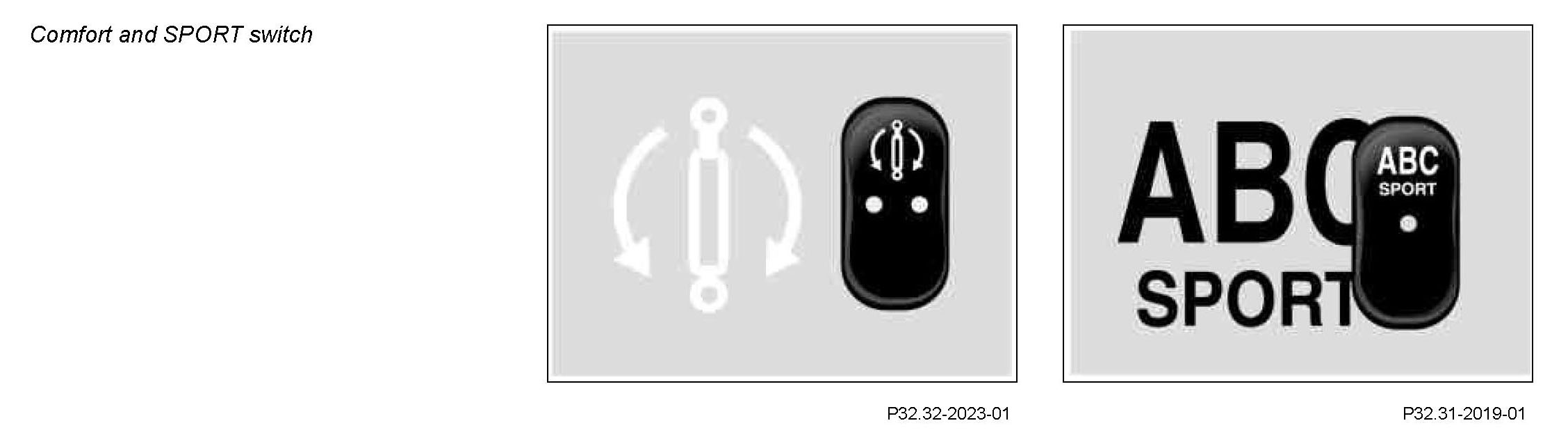

GF32.31-P-4200B Comfort and SPORT switch, location/task/function
- with CODE (487) Active body control (ABC)
