GF32.22-P-4500B Pressure Sensor, Location/Task/Function
GF32.22-P-4500B Pressure Sensor, Location/Task/Function

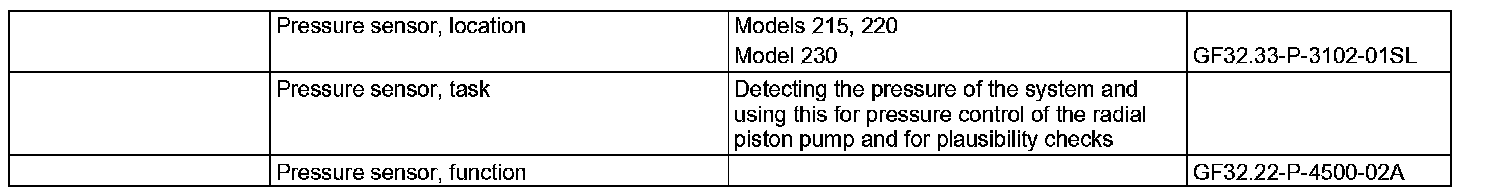

GF32.22-P-4500B Pressure sensor, location/task/function
- with CODE (487) Active body control (ABC)
- up to 28.2.06

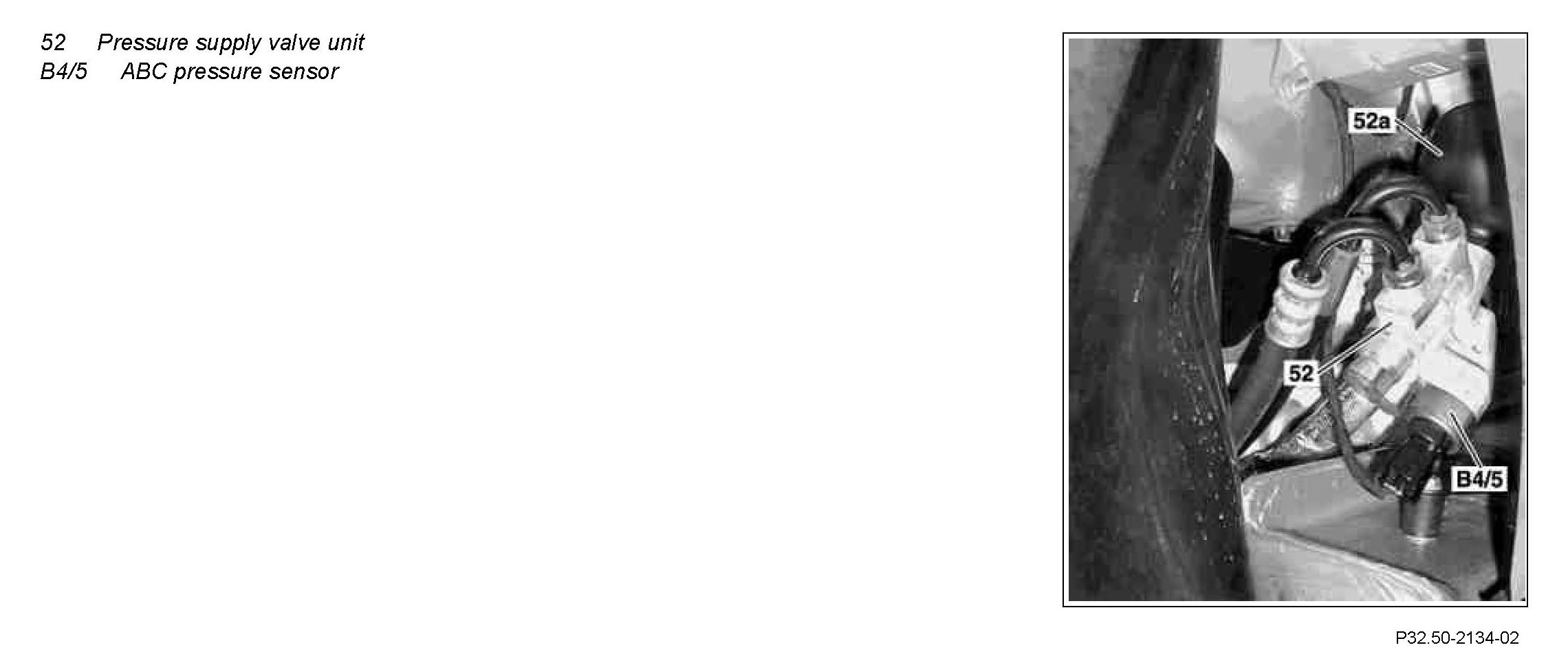

Component Identification:
