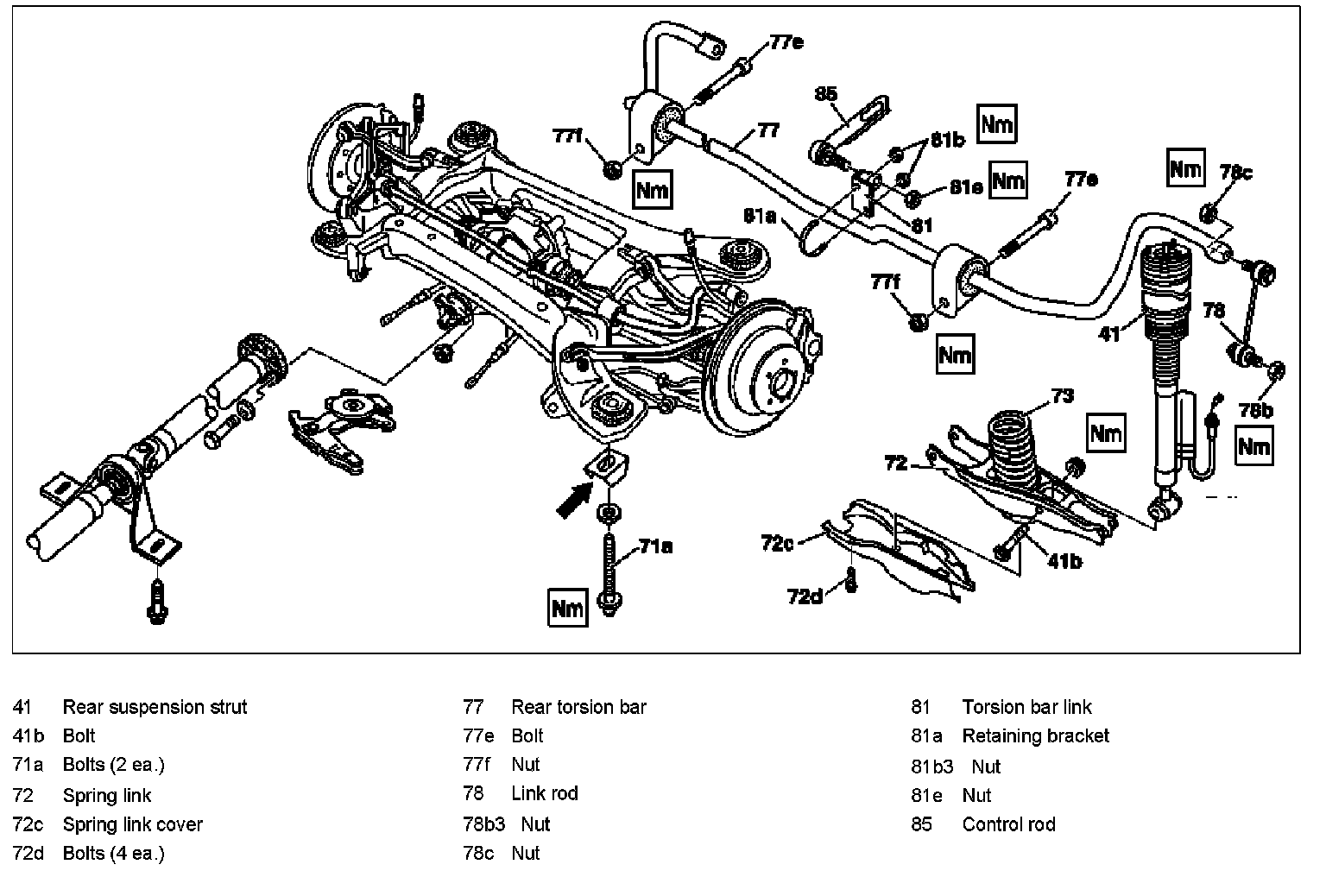

AR32.20-P-0315MB Remove/Install Torsion Bar on Rear Axle



AR32.20-P-0315MB Remove/install torsion bar on rear axle
- With CODE (Z07) Top Protection

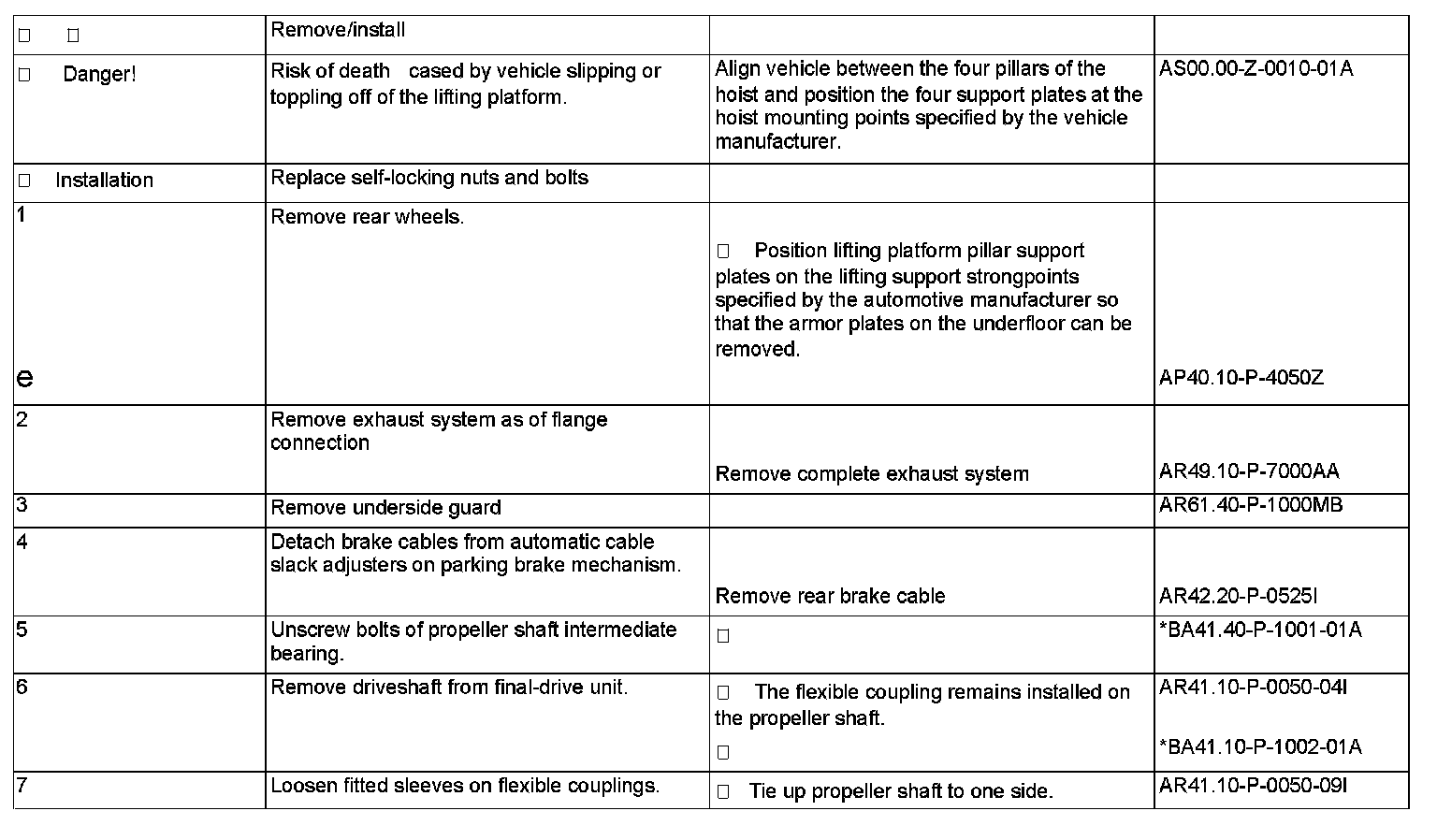

Steps 1-7:

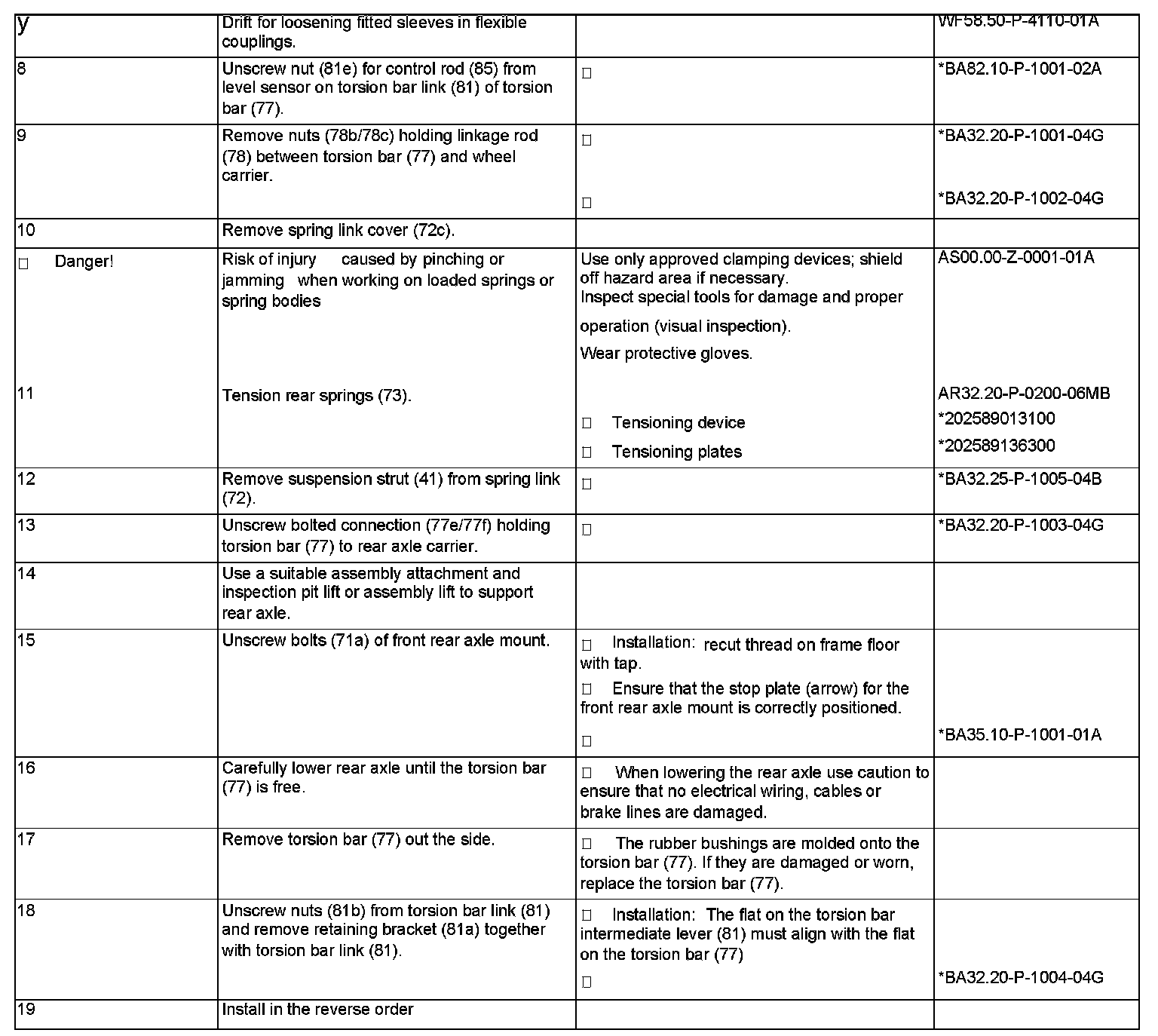

Steps 8-19:
