Home >> Mercedes Benz >> 2002 >> S 500 (220.175) V8-5.0L (113.960) >> Repair and Diagnosis >> Steering and Suspension >> Suspension >> Stabilizer Bar >> Service and Repair >> AR32.20-P-0300MB Remove/Install Torsion Bar on Front Axle

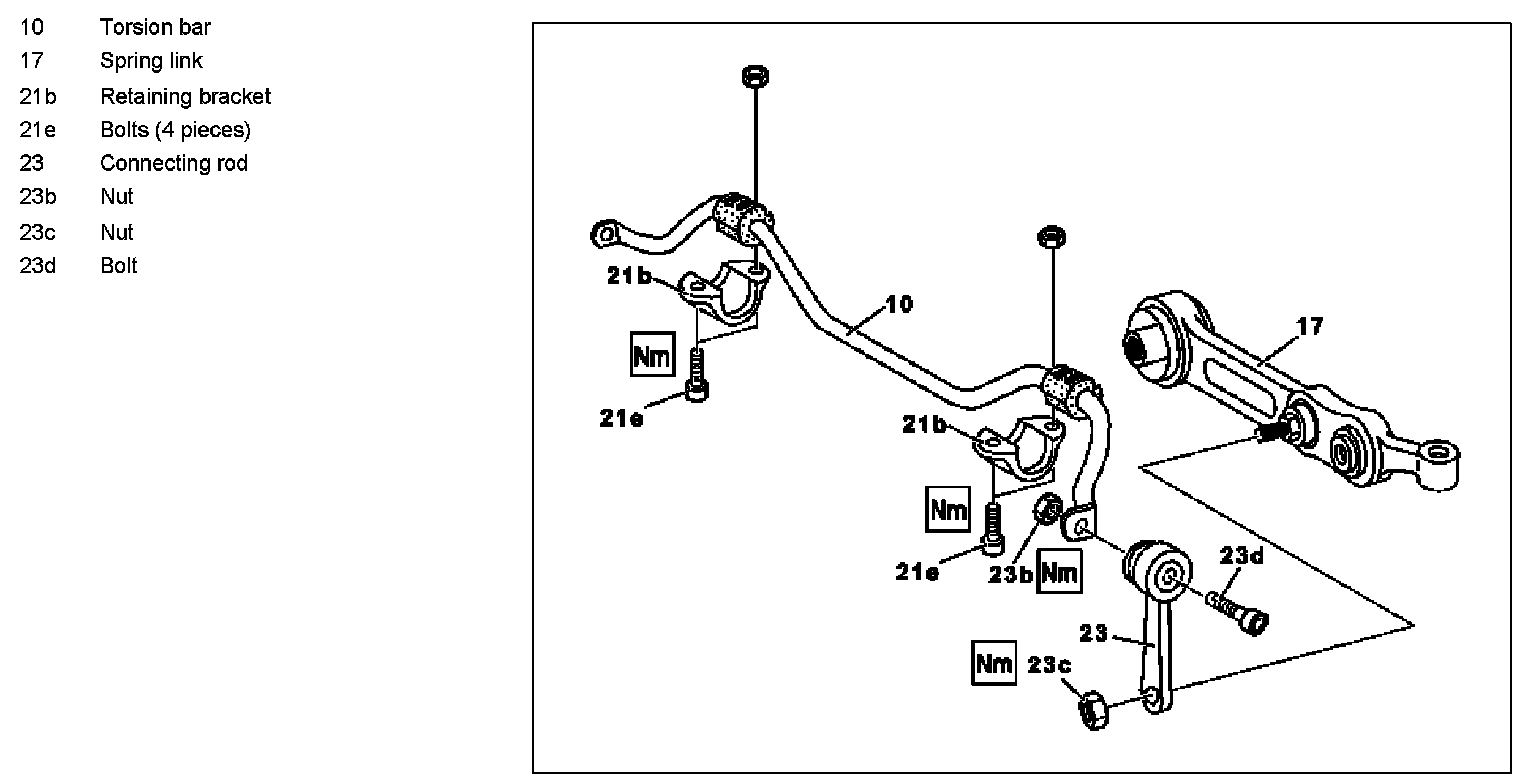

AR32.20-P-0300MB Remove/Install Torsion Bar on Front Axle



AR32.20-P-0300MB Remove/install torsion bar on front axle
- With CODE (Z07) Top Protection

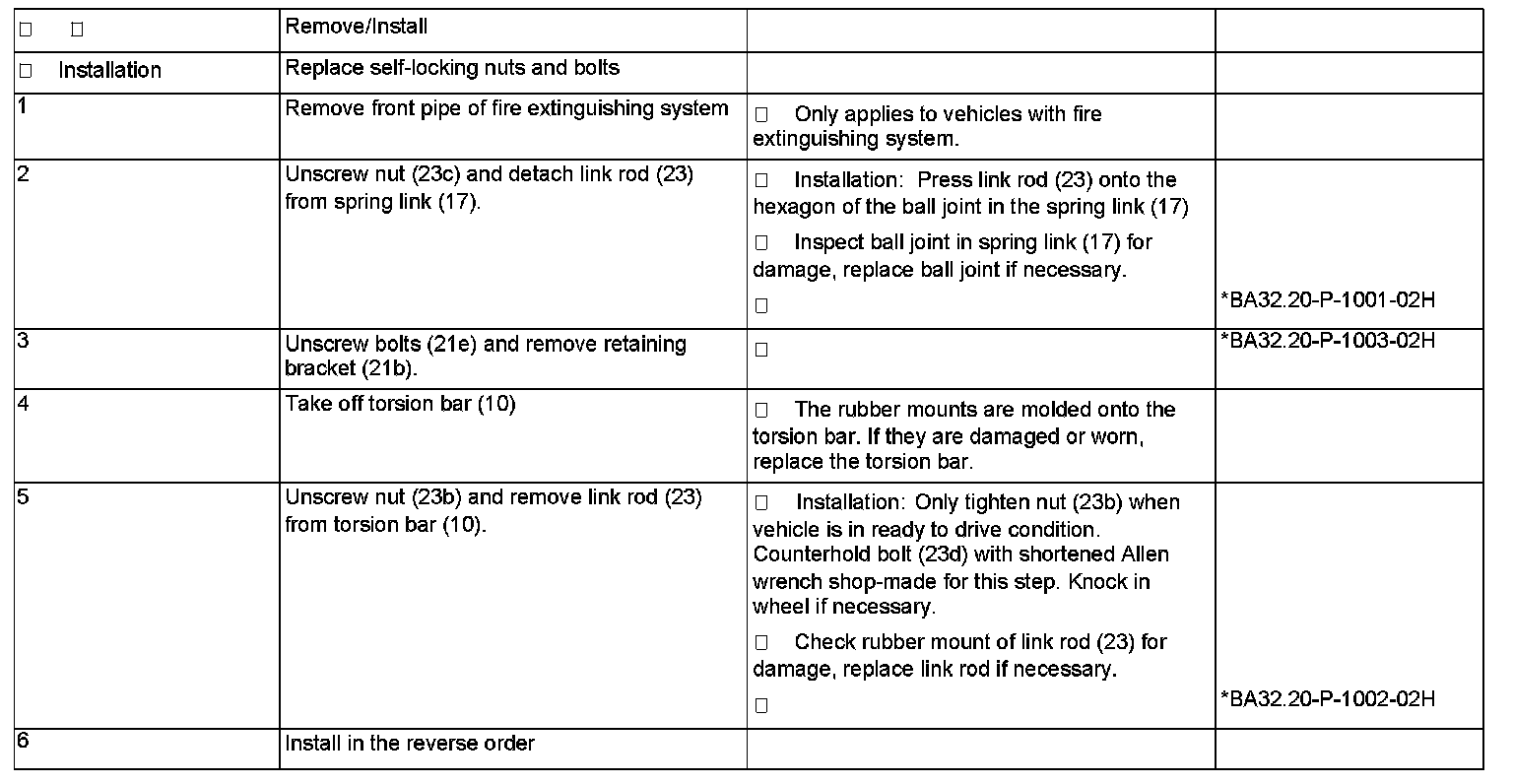

Steps 1-6:
