Home >> Mercedes Benz >> 2002 >> S 500 (220.175) V8-5.0L (113.960) >> Repair and Diagnosis >> Steering and Suspension >> Suspension >> Service and Repair >> Removal and Replacement >> AR33.10-P-0100I Remove/Install Front Axle

AR33.10-P-0100I Remove/Install Front Axle

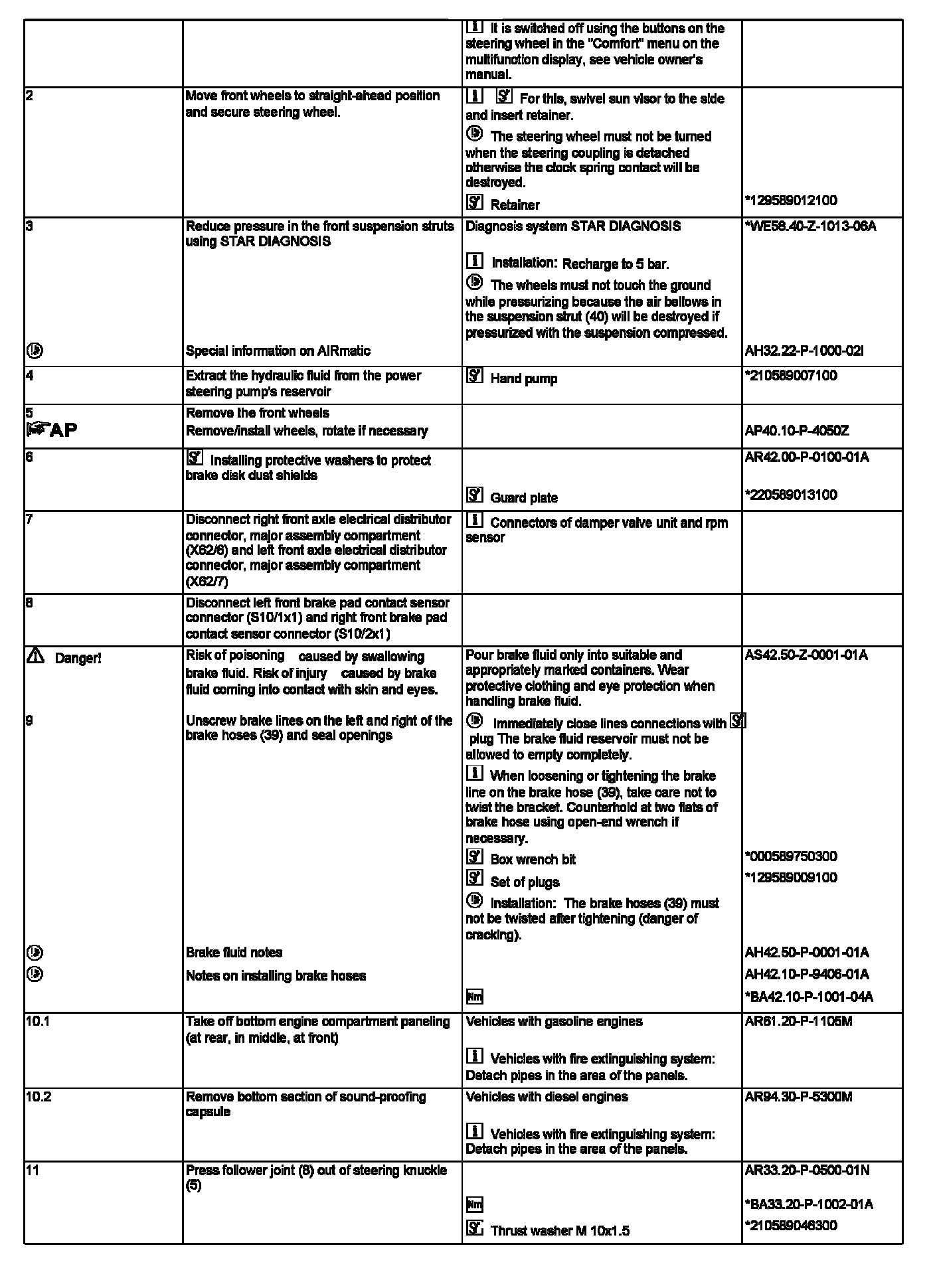

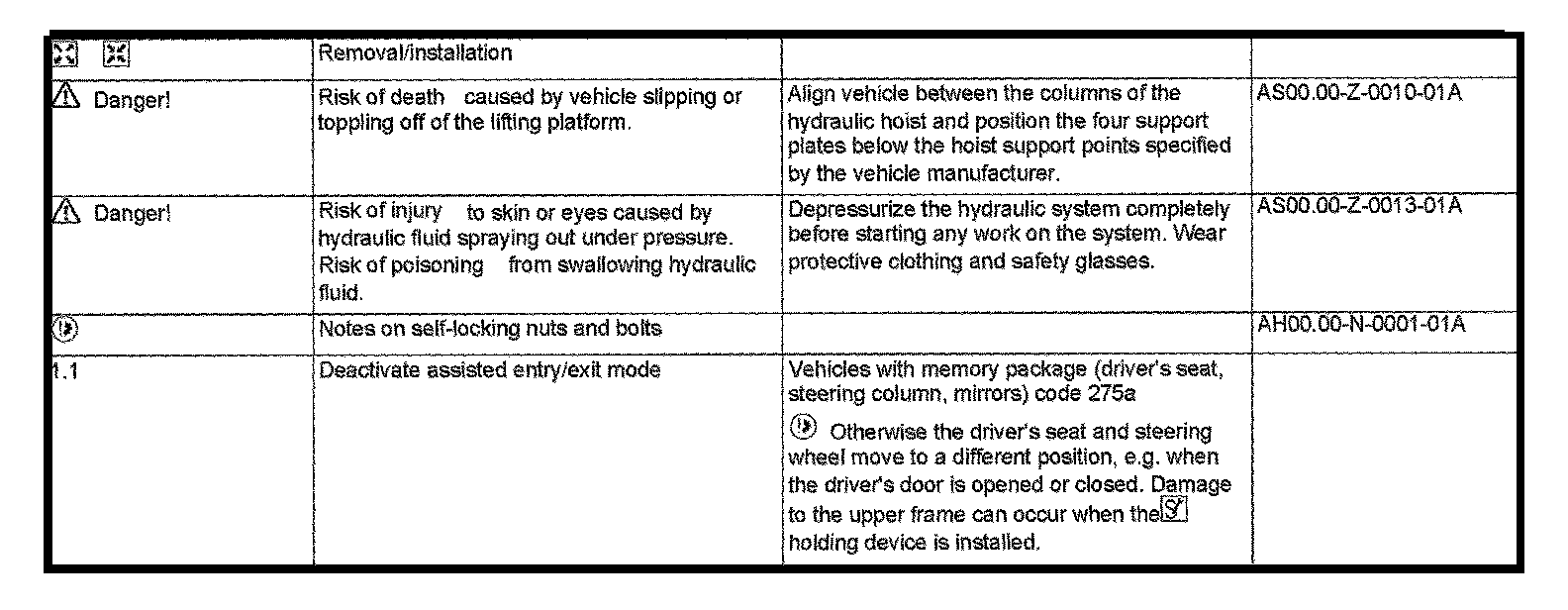

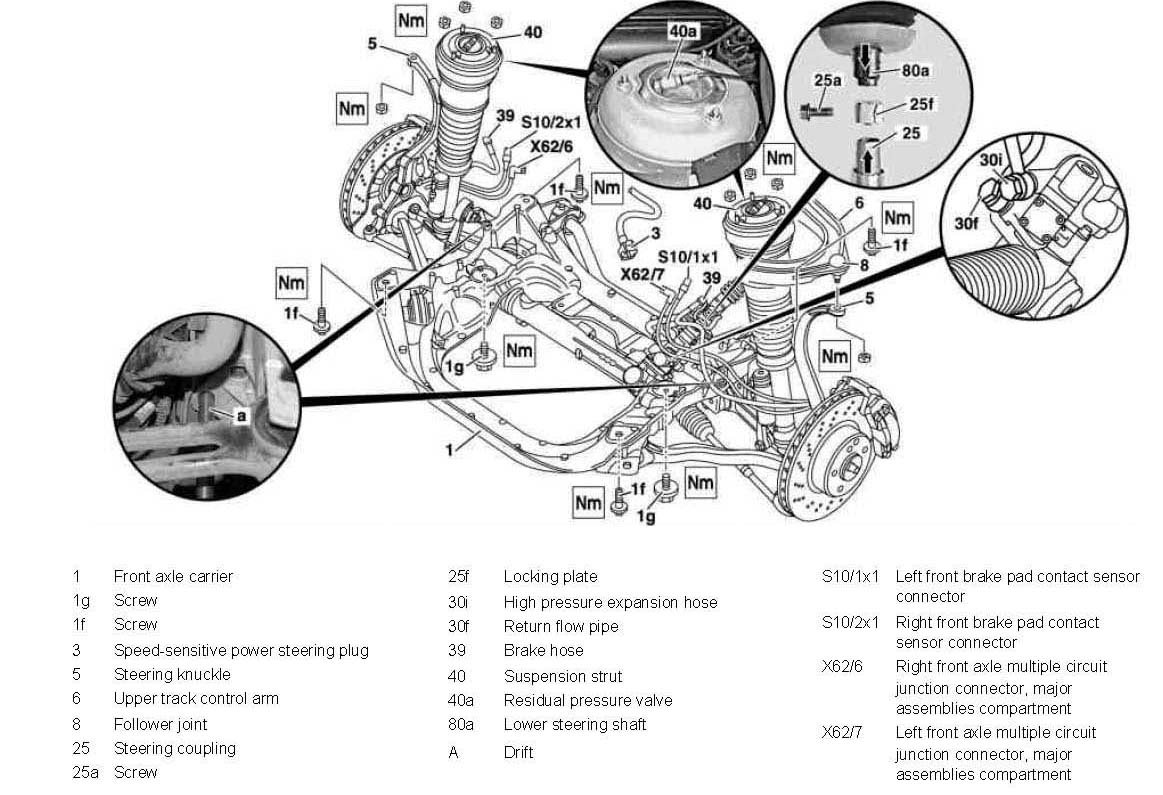

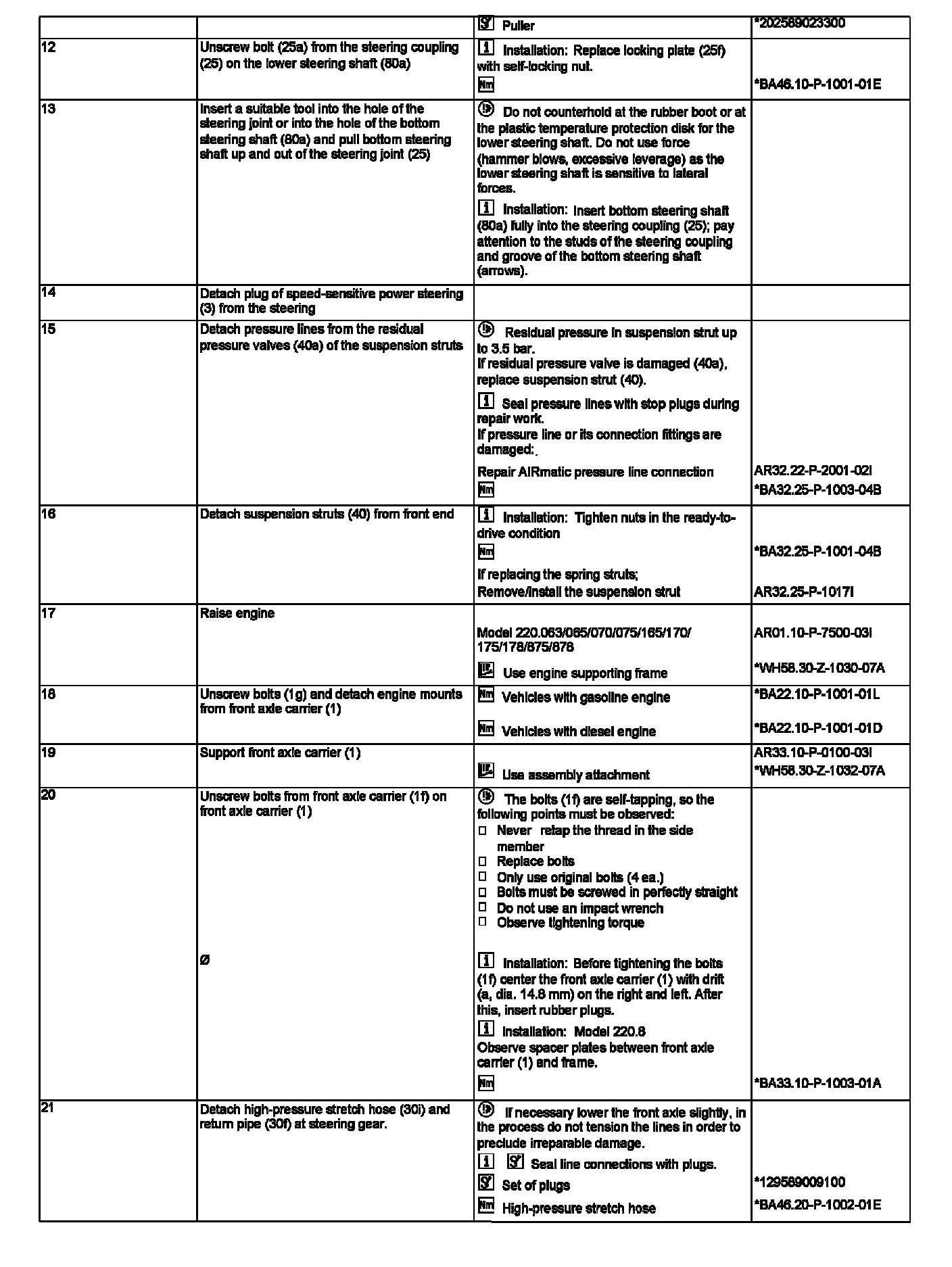

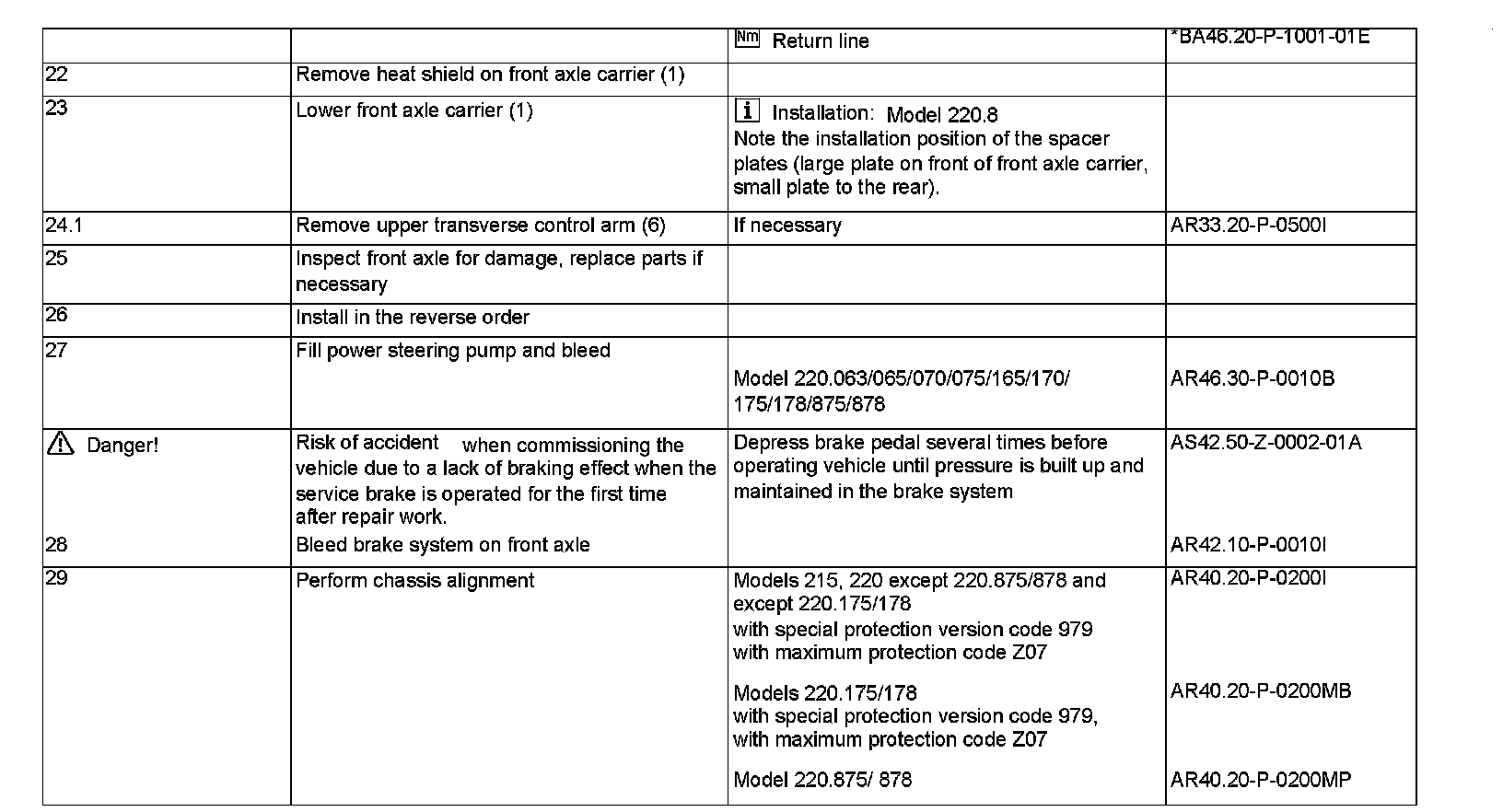

Removing and installing front axle
- except CODE (487) Active body control (ABC)
- except CODE (Z07) Top Protection
- except CODE (979) Special protection version

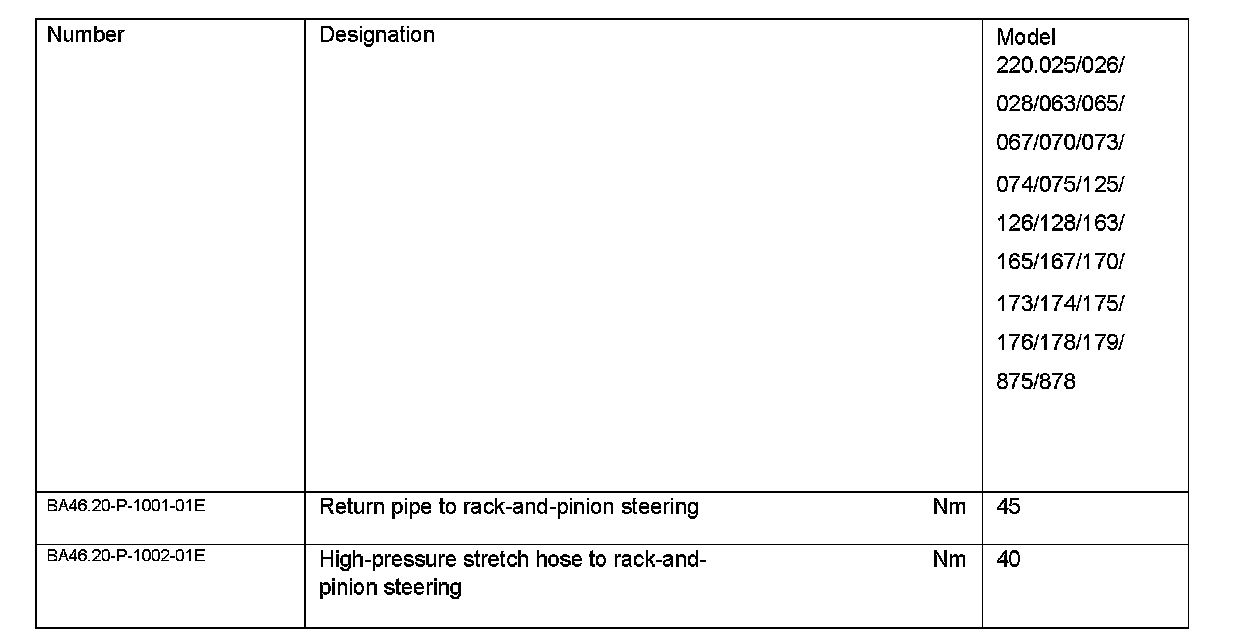

Steering gear:
