AR40.30-P-0450I Measure Front Axle Carrier (When Removed)
AR40.30-P-0450I Measure Front Axle Carrier (When Removed)
AR40.30-P-0450I Measure front axle carrier (when removed)

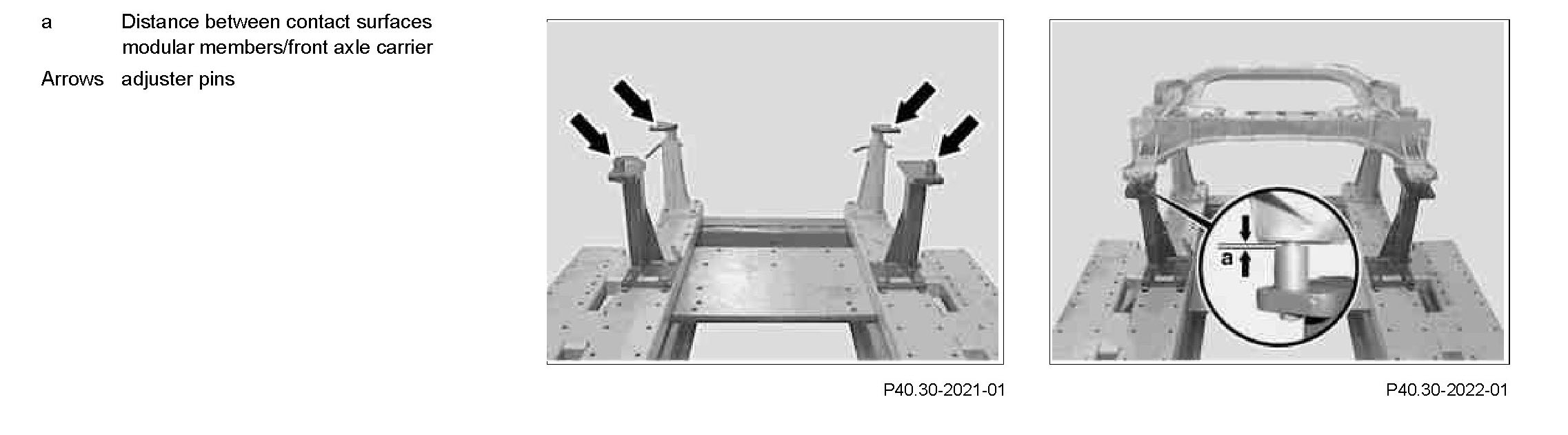

Component Identification:

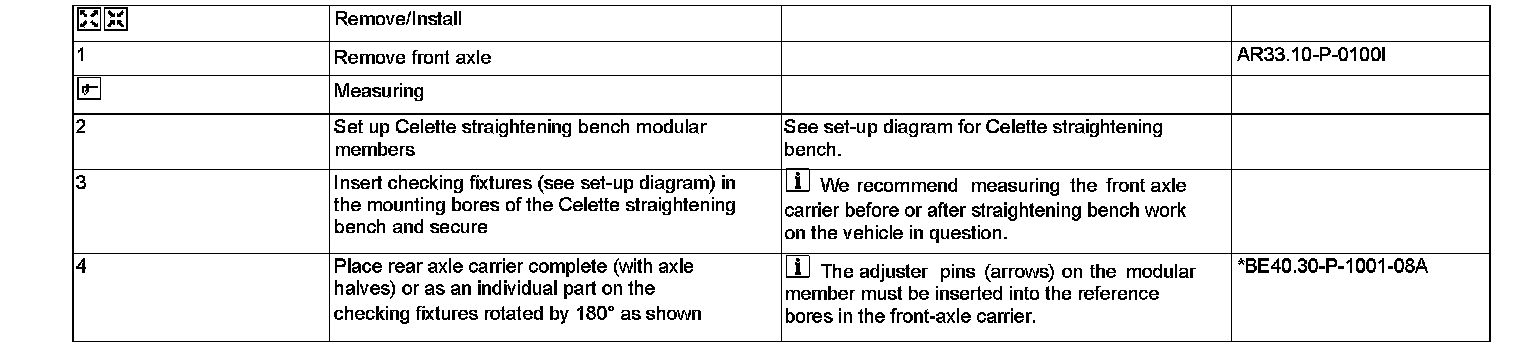

Steps 1 - 4:

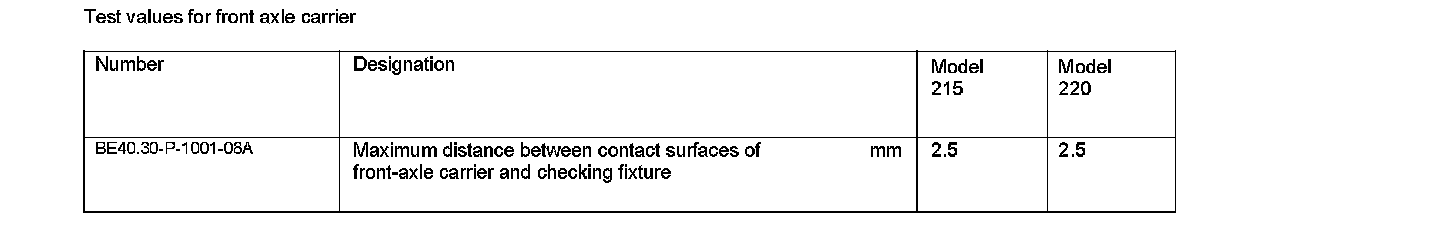

Test Values For Front Axle Carrier:
