Home >> Mercedes Benz >> 2002 >> S 500 (220.175) V8-5.0L (113.960) >> Repair and Diagnosis >> Steering and Suspension >> Suspension >> Service and Repair >> Procedures >> AR33.10-P-0101M Lower Front Axle

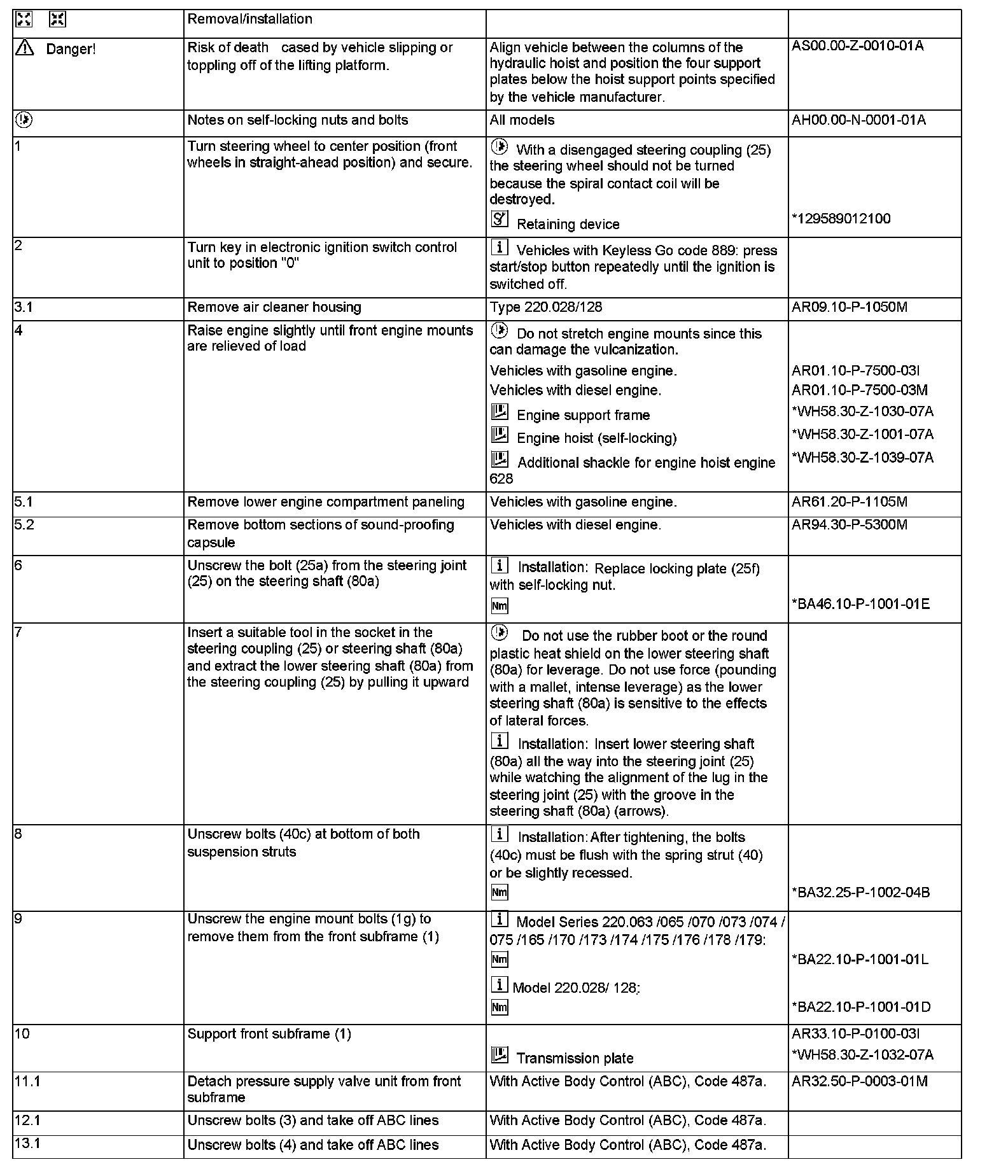

AR33.10-P-0101M Lower Front Axle

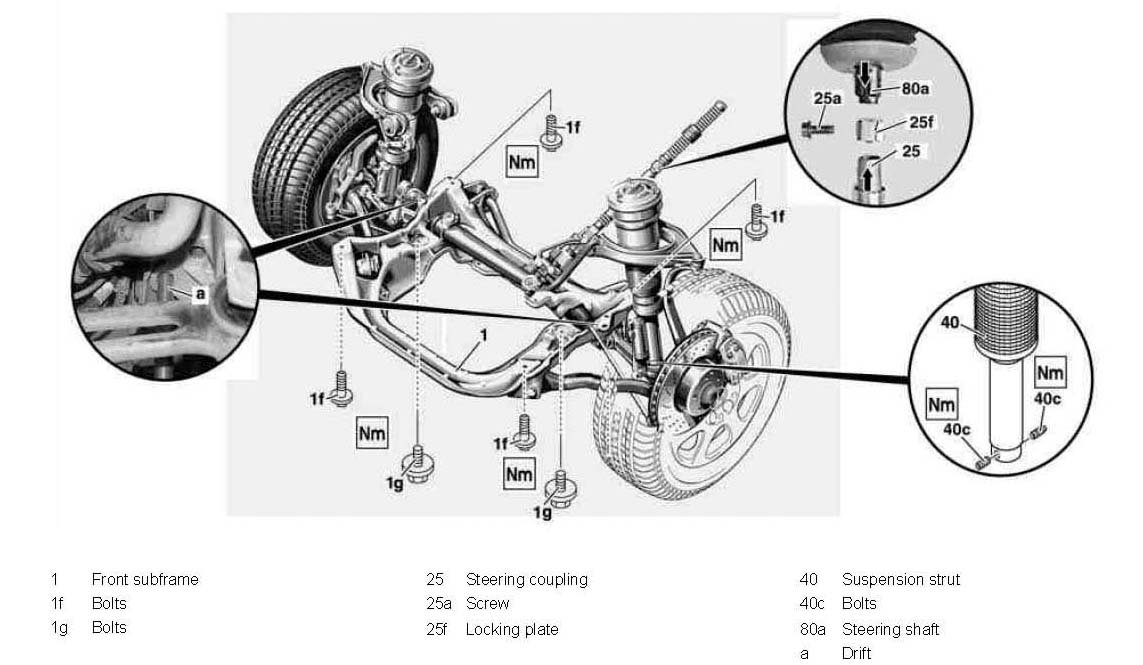

Lower front axle

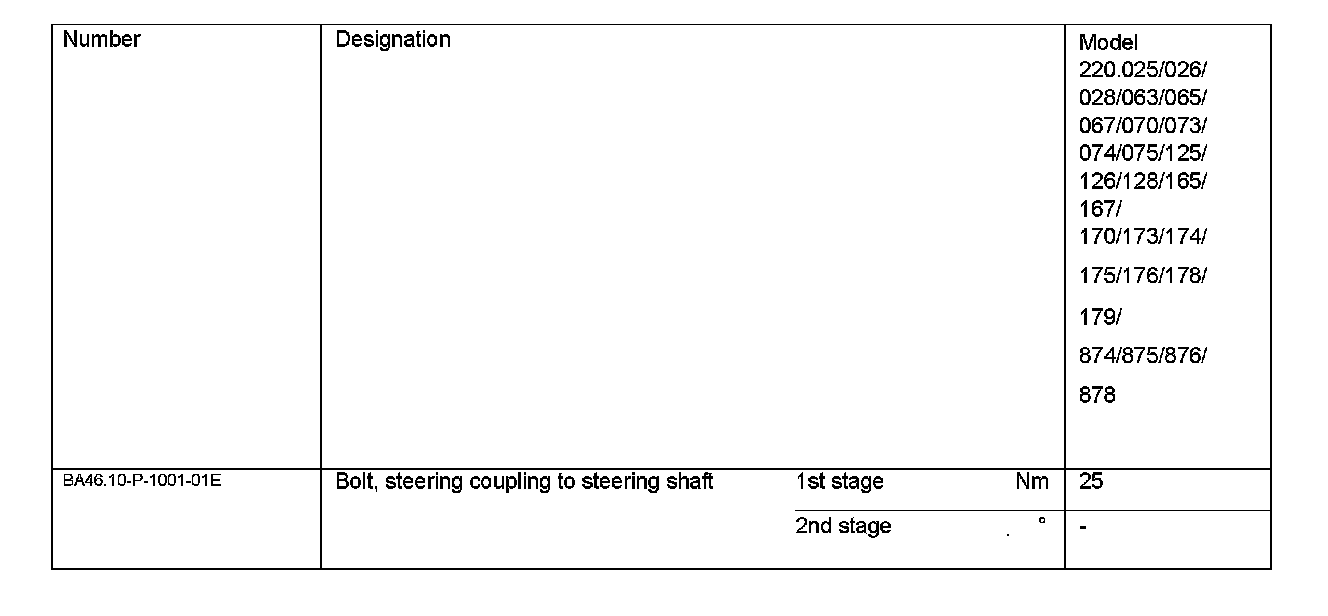

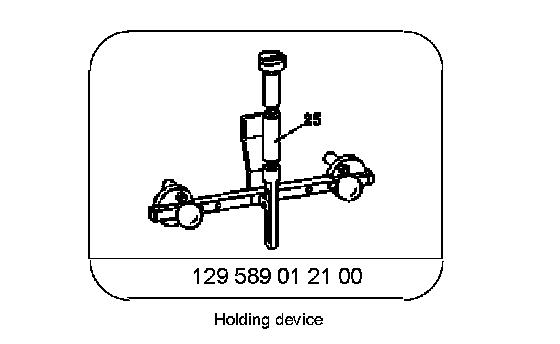

Steering shaft:
