AR35.20-P-0110MB Remove/Install Camber Strut

AR35.20-P-0110MB Removing and installing camber strut
- with CODE (Z04) Light armoring
- with CODE (Z07) Top protection

Component Identification:

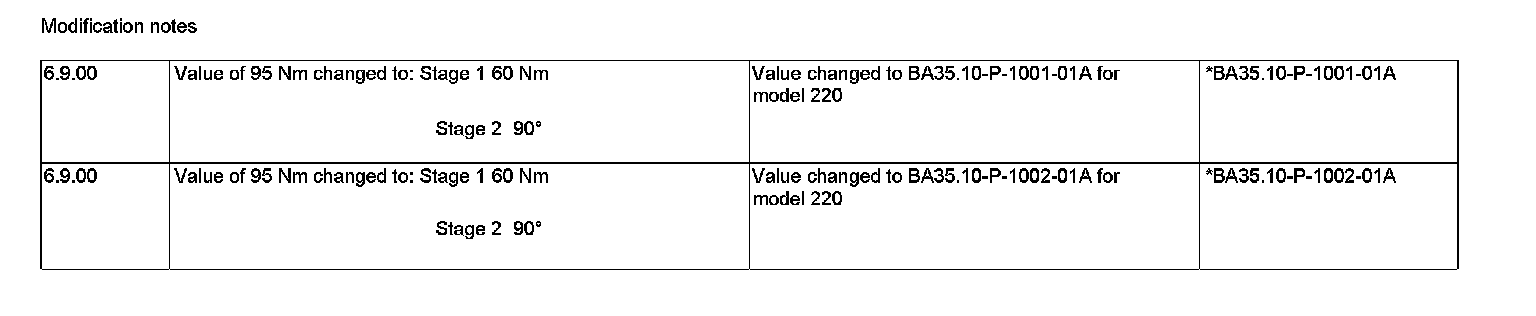

Modification Notes:

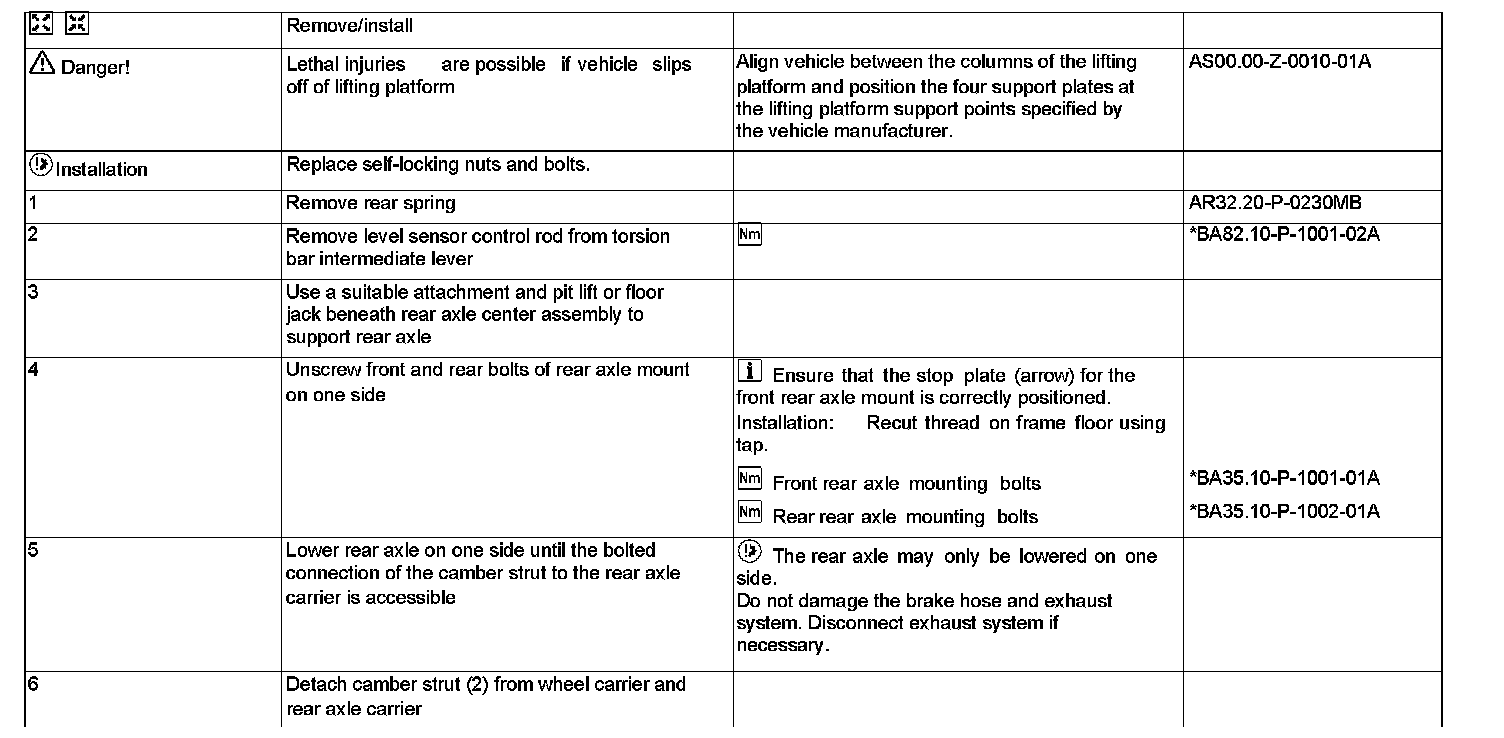

Steps 1 - 6:

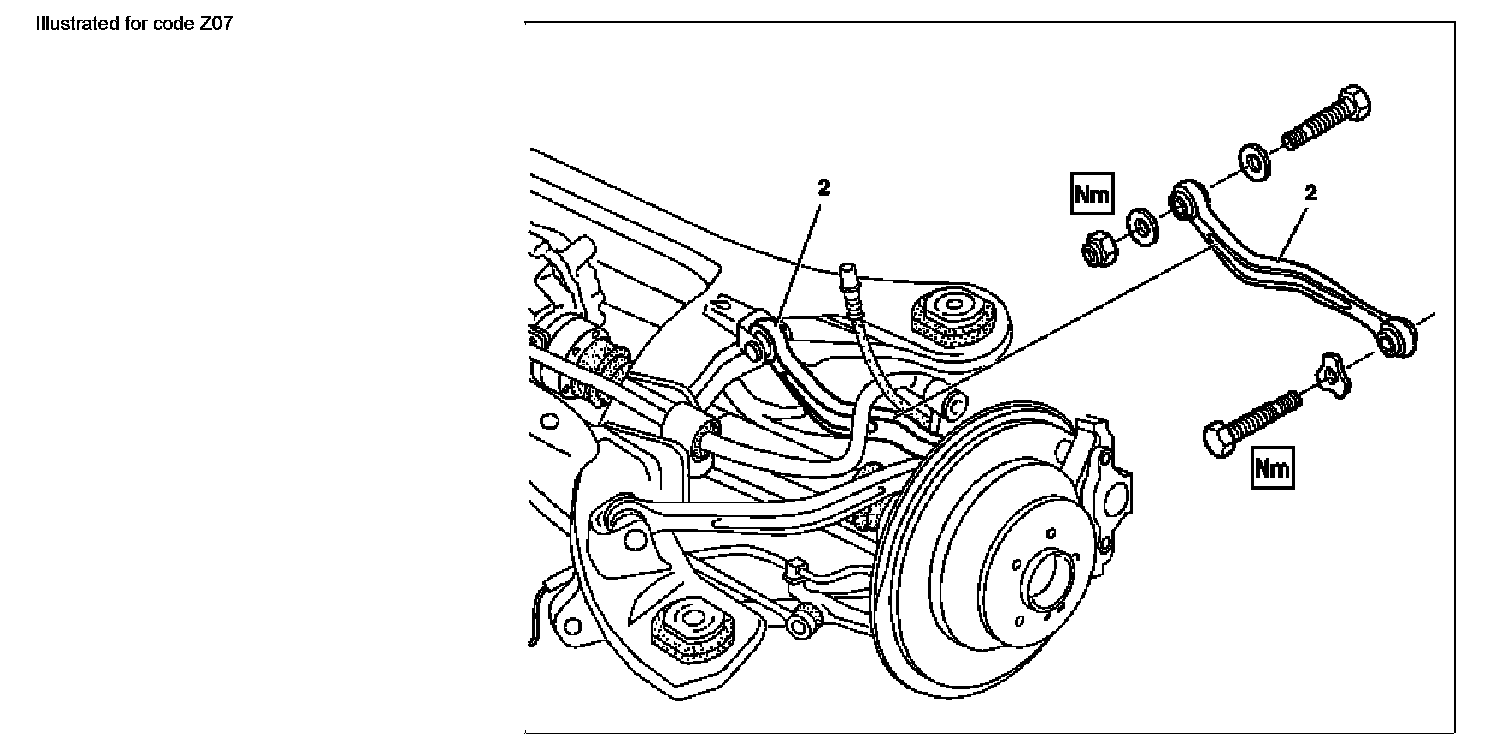

Step 7:

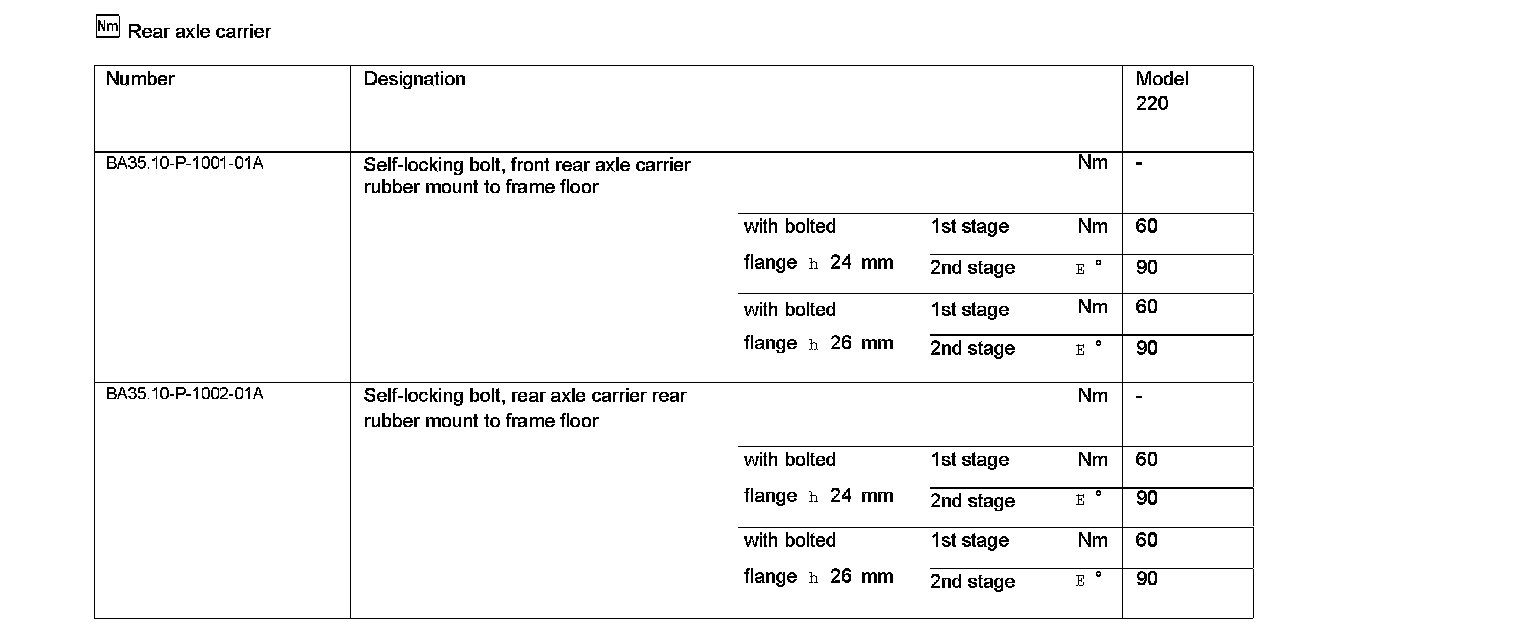

Rear Axle Carrier:

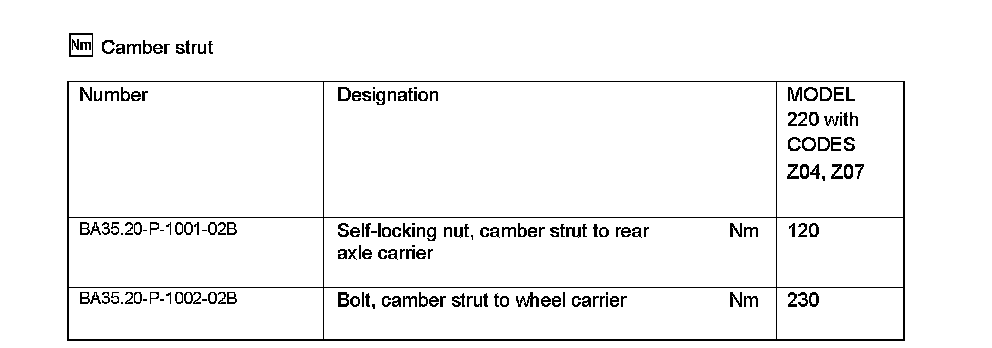

Camber Strut:

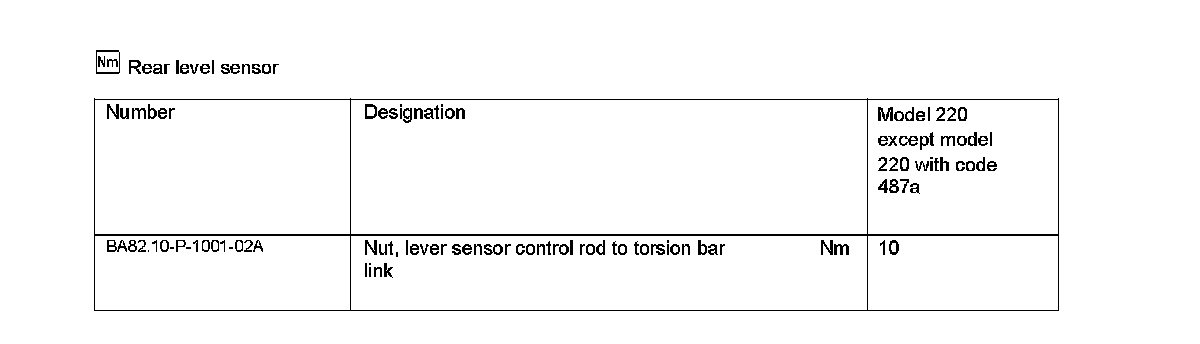

Rear Level Sensor:
