AR35.20-P-0114MC Remove/Install Spring Link and Replacement of Rubber Mount



AR35.20-P-0114MC Remove/install spring link and replacement of rubber mount
- with CODE (Z04) Light armoring

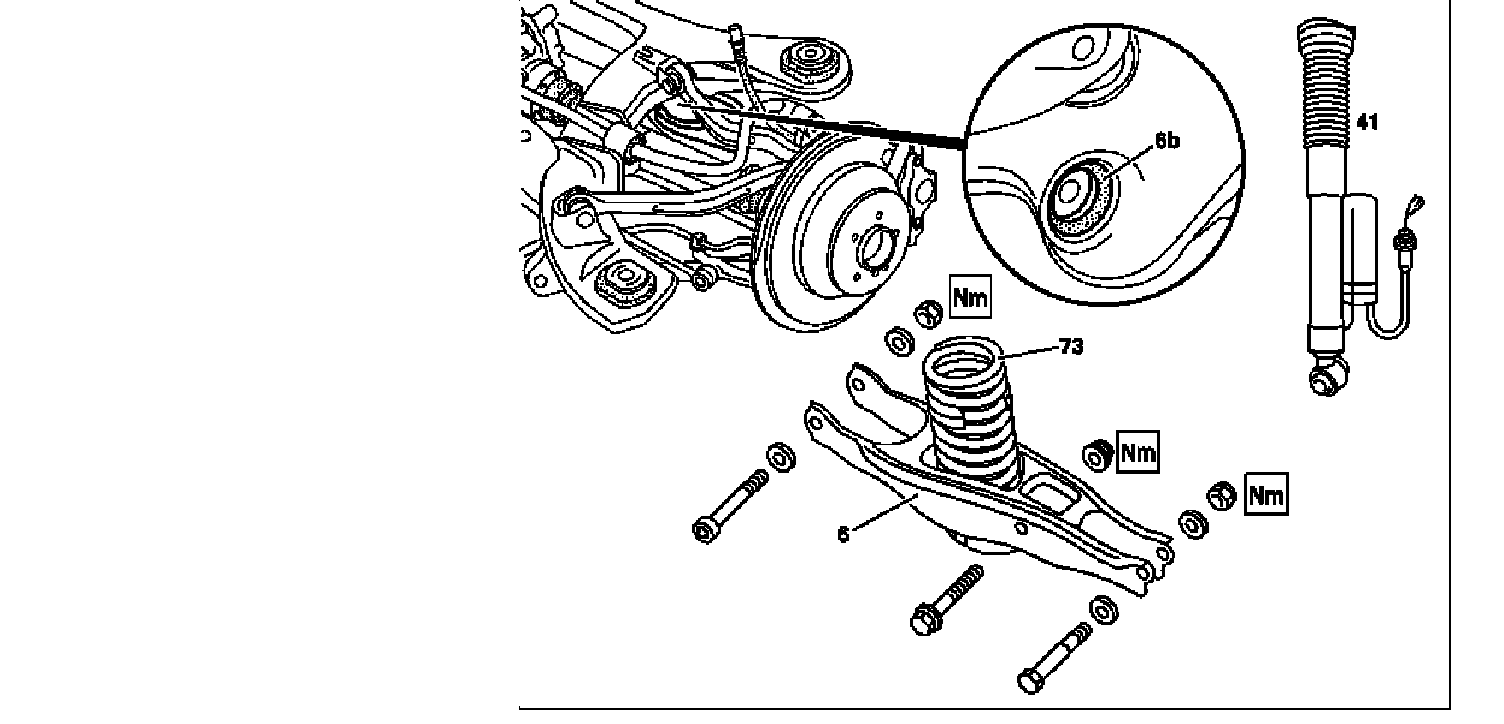

Component Identification:

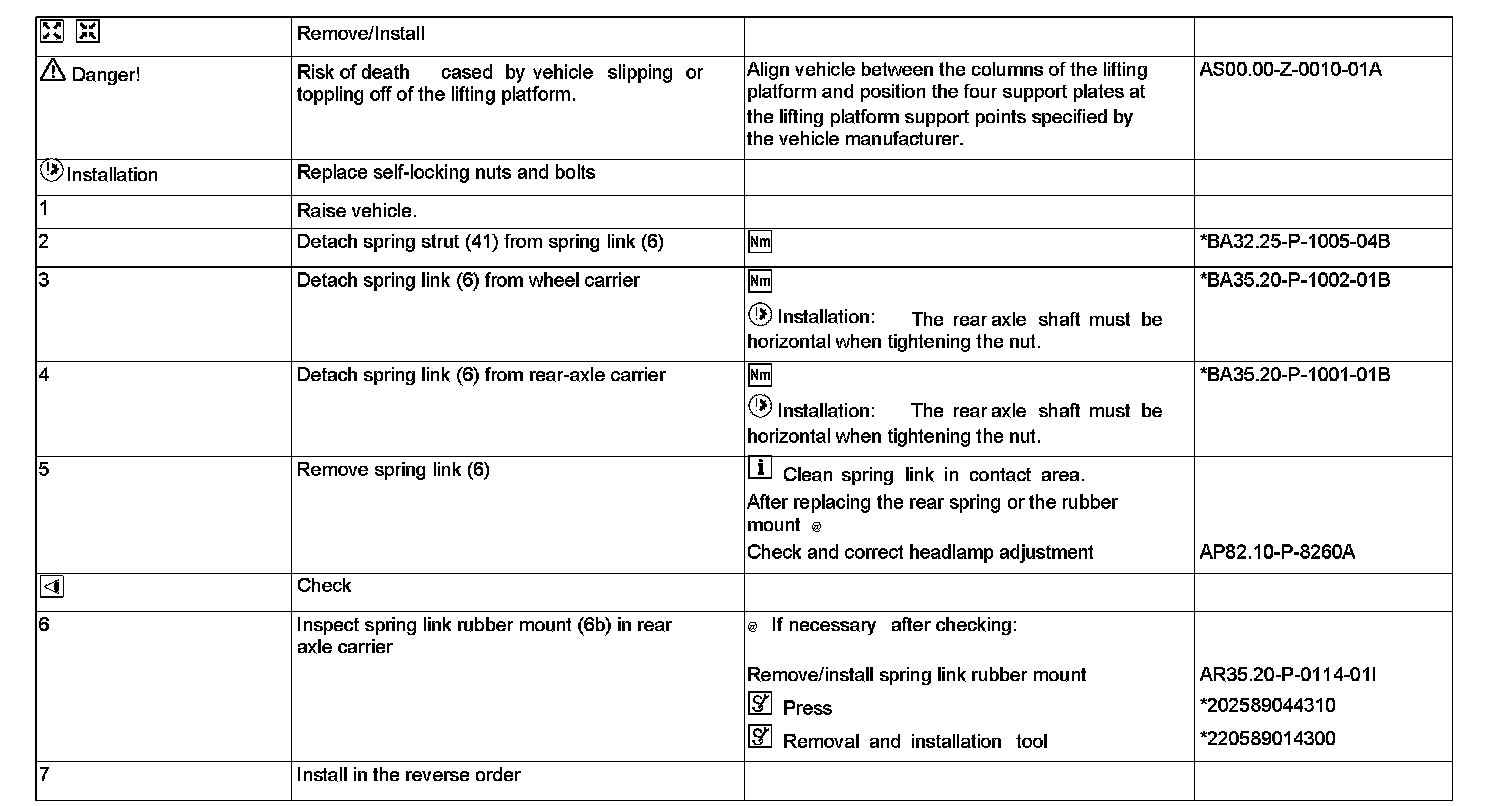

Steps 1 - 7:

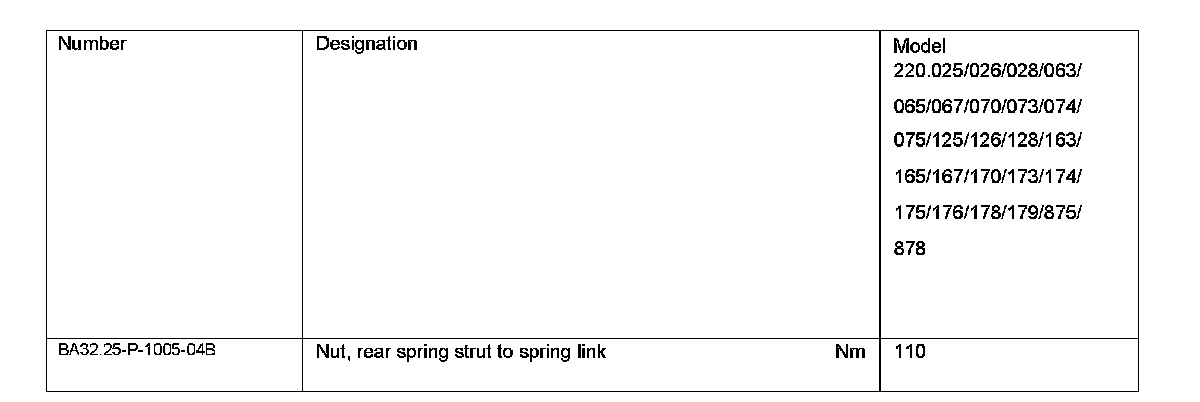

Struts:

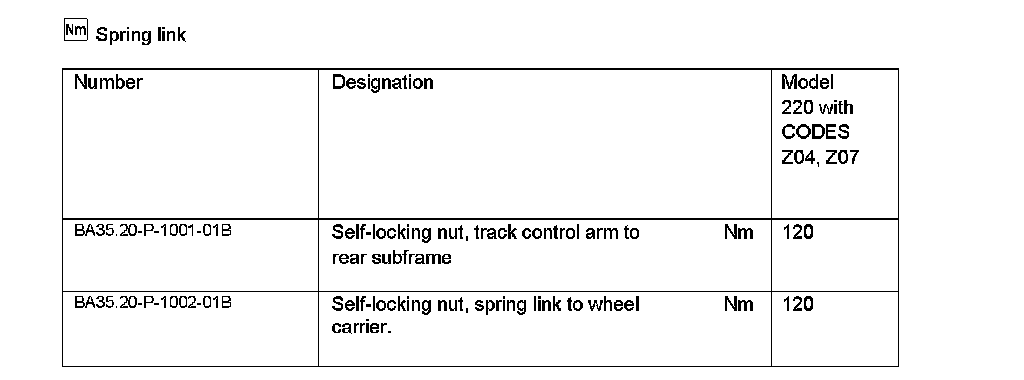

Spring Link:

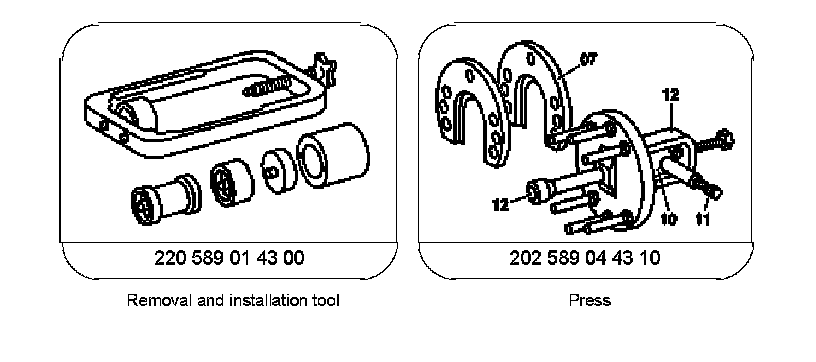

Special Tools:
