Home >> Mercedes Benz >> 2002 >> S 500 (220.175) V8-5.0L (113.960) >> Repair and Diagnosis >> Steering and Suspension >> Steering >> Steering Wheel >> Description and Operation >> GF46.11-P-4002M DC/DC Converter Control Module, Location/Task

GF46.11-P-4002M DC/DC Converter Control Module, Location/Task

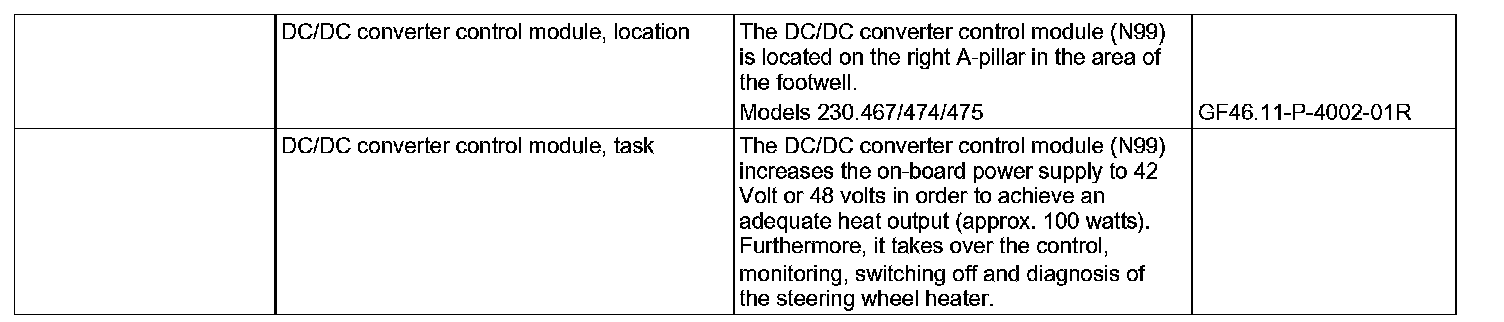

GF46.11-P-4002M DC/DC converter control module, location/task
- with CODE (443) Steering wheel heater

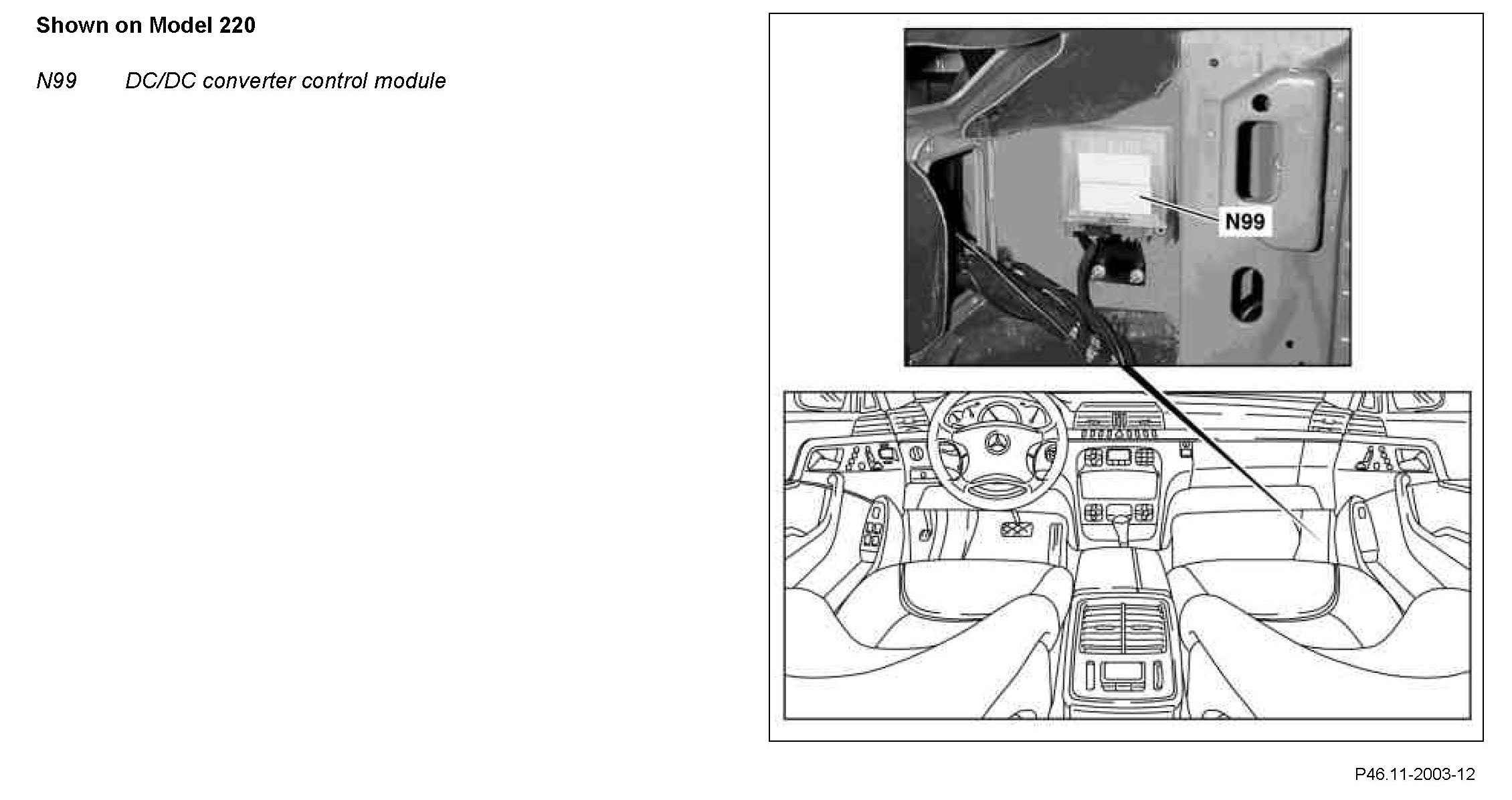

Component Identification:
