AP46.20-P-4654A Check Steering Damper Bolts For Leakage and Tight Installation



AP46.20-P-4654A Check steering damper bolts for leakage and tight installation

Component Identification:

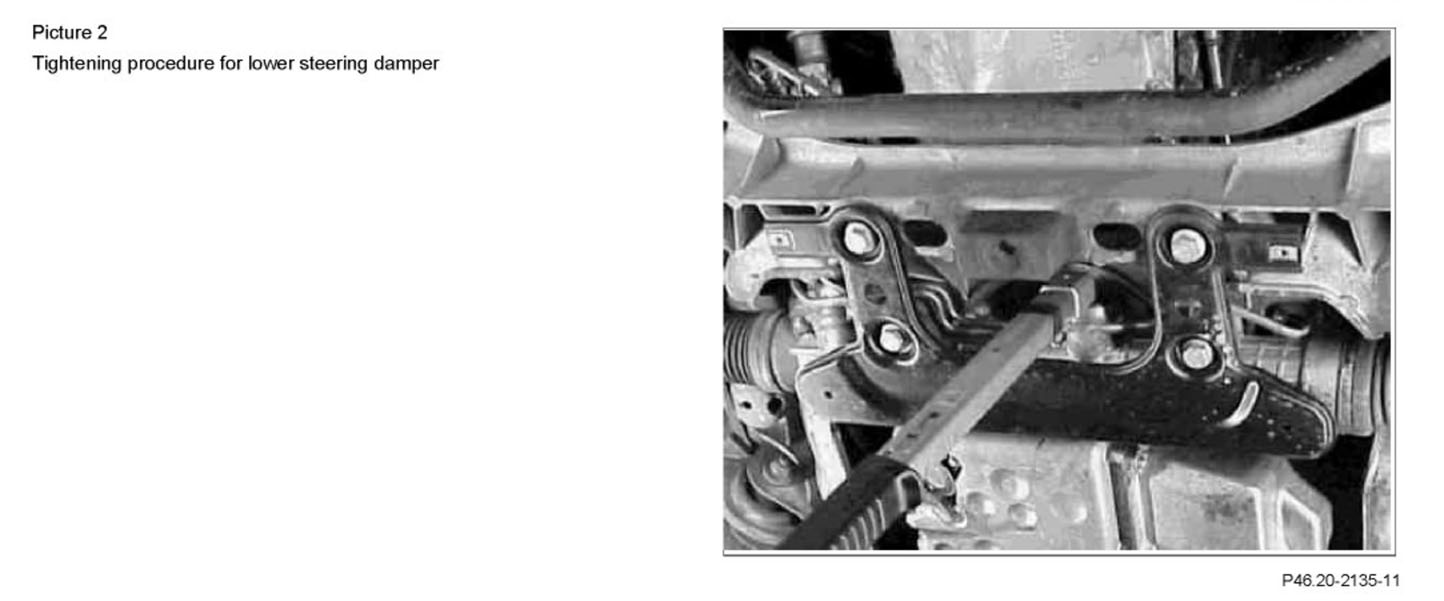

Component Identification:

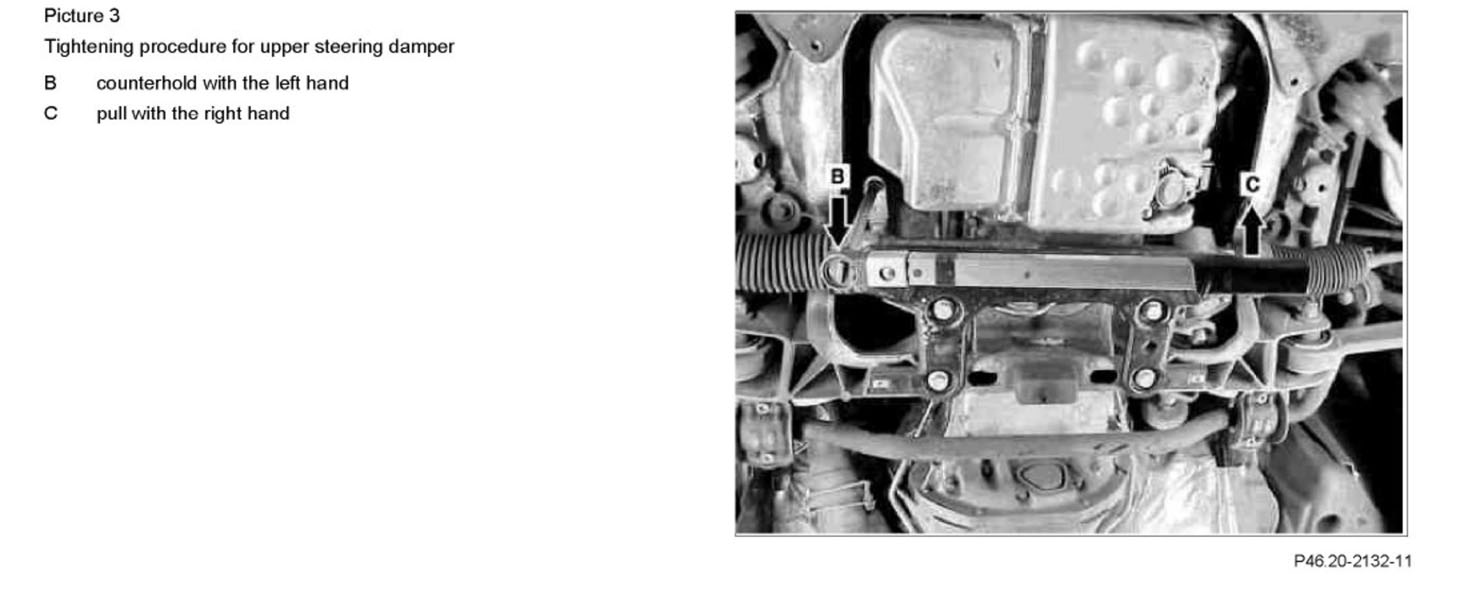

Component Identification:

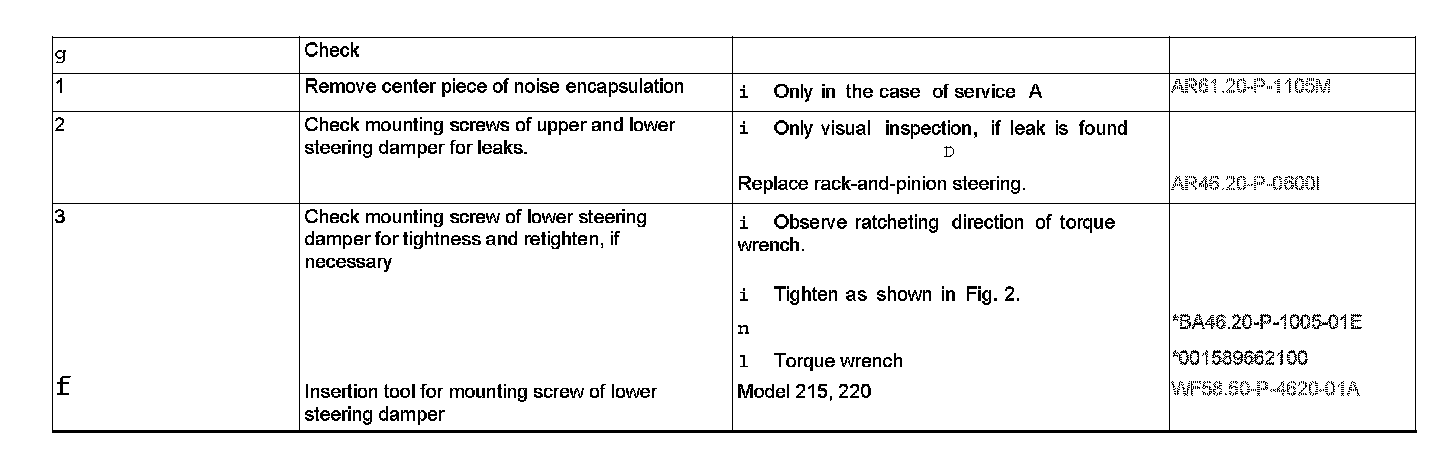

Steps 1-3:

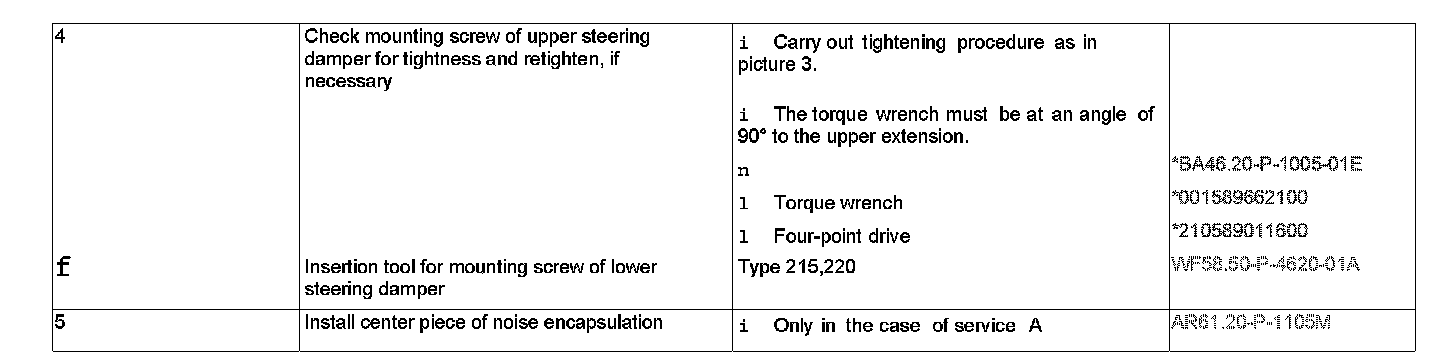

Remove/install Steps 4-5:

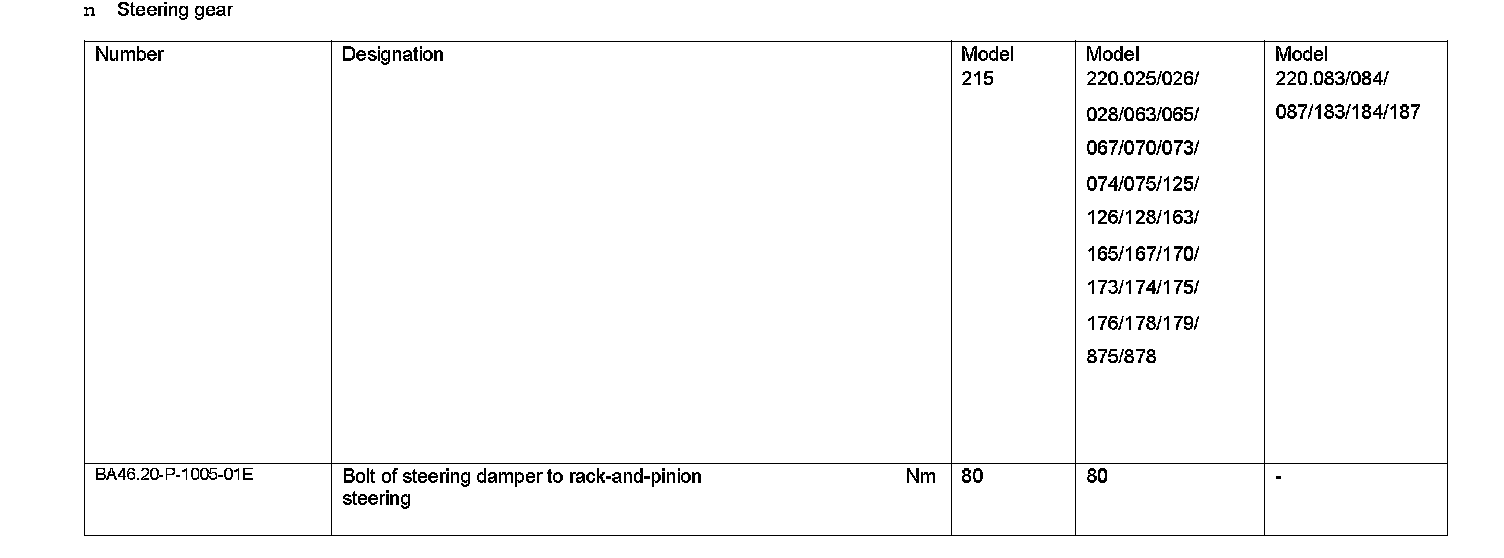

Steering gear:

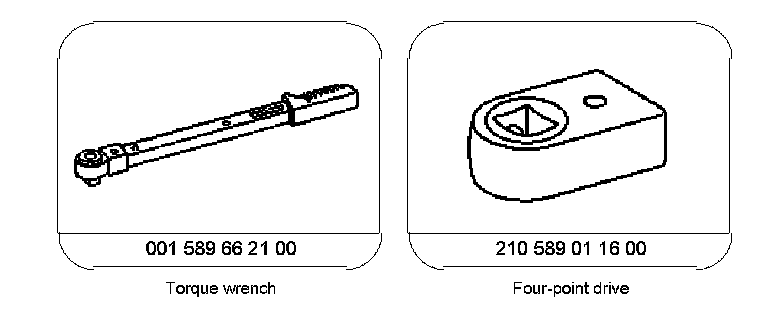

Special Tools:
