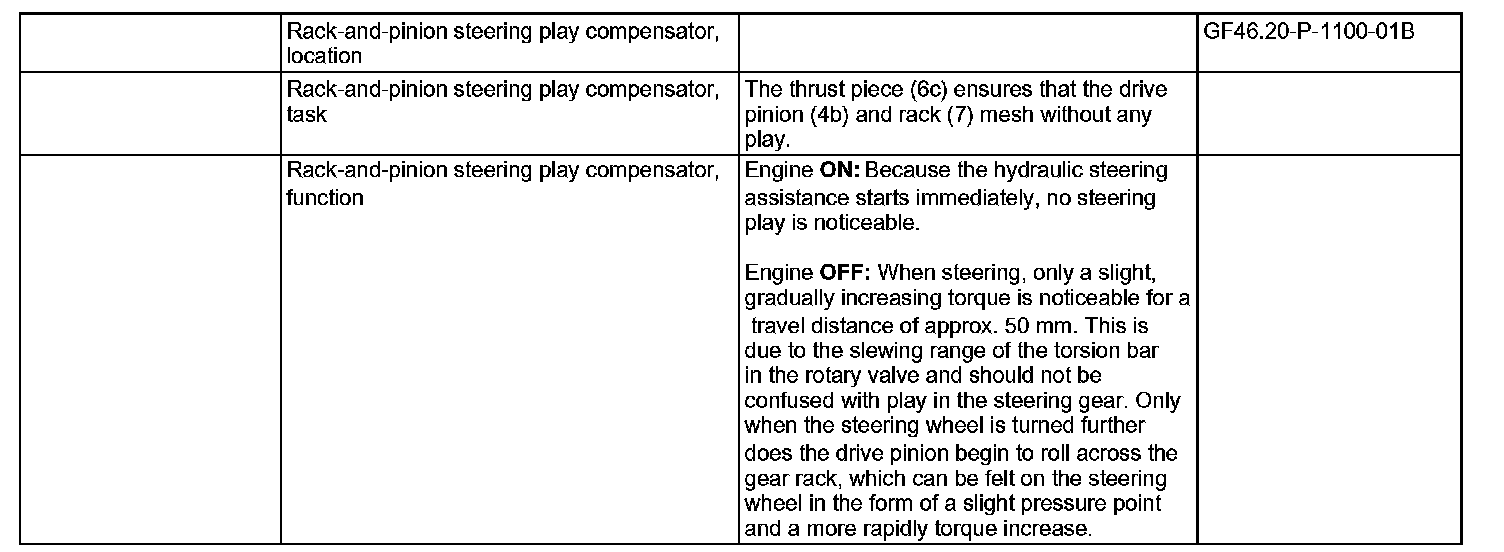

GF46.20-P-1100B Rack-and-Pinion Steering Play Compensator, Location/Task/Function



GF46.20-P-1100B Rack-and-pinion steering play compensator, location/task/function

Component Identification:
