Steering and Suspension: Specifications

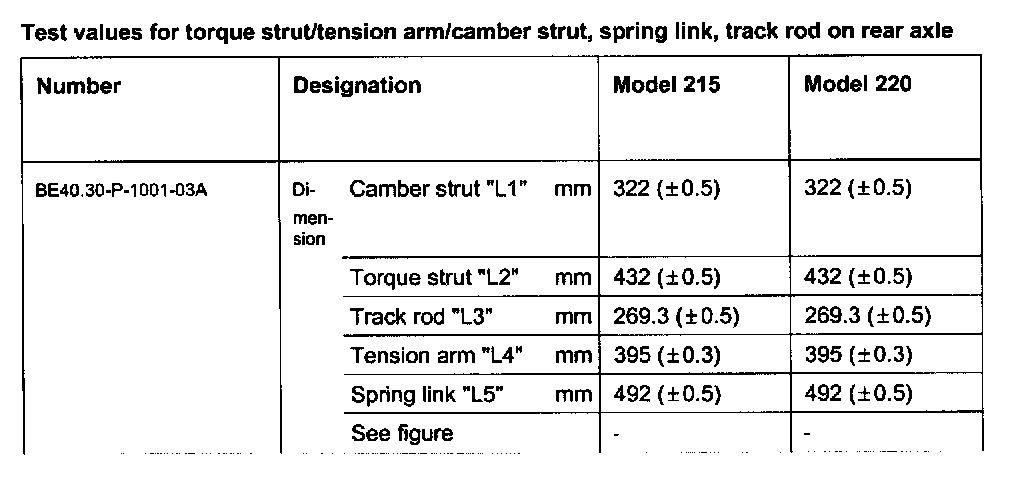

Test Values For Torque Strut/tension Arm/camber Strut, Spring Link, Track Rod On Rear Axle


Test Values For Torque Strut/tension Arm/camber strut, Spring Link, Track Rod On Rear Axle:
