AR54.10-P-1030I Check Quiescent Current Consumption
AR54.10-P-1030I Check Quiescent Current Consumption
AR54.10-P-1030I Check Quiescent Current Consumption

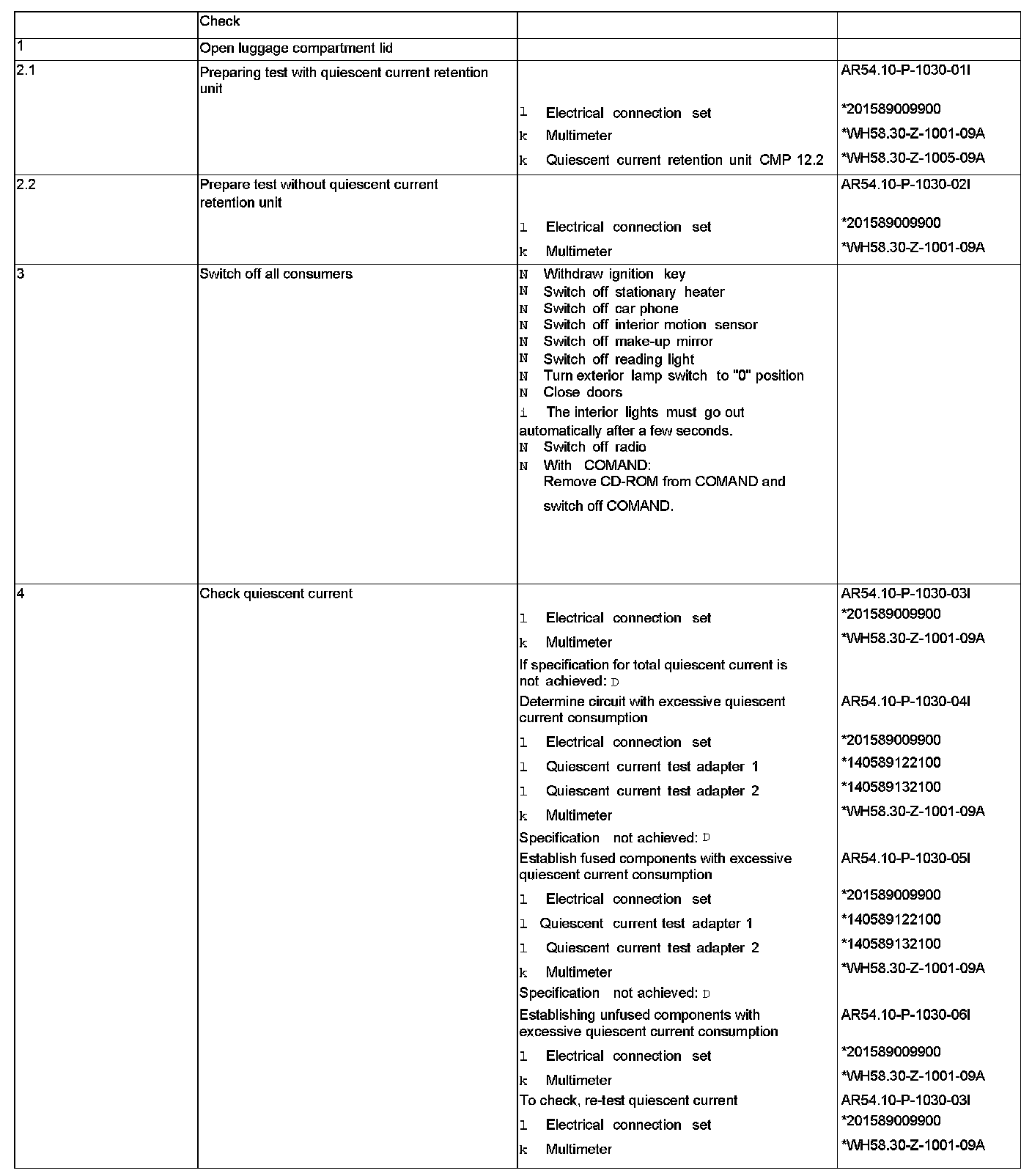

Steps 1 - 4:

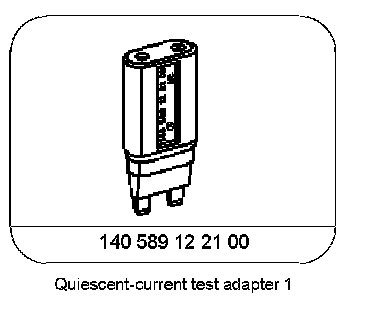

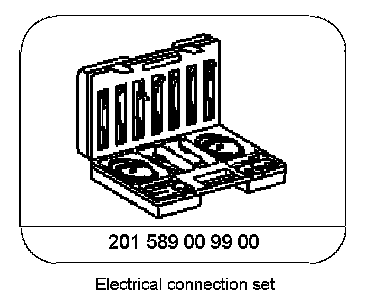

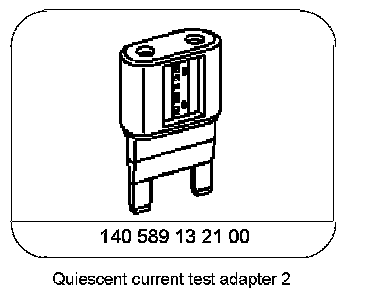

Special Tools:
Special Tools:
Special Tools:

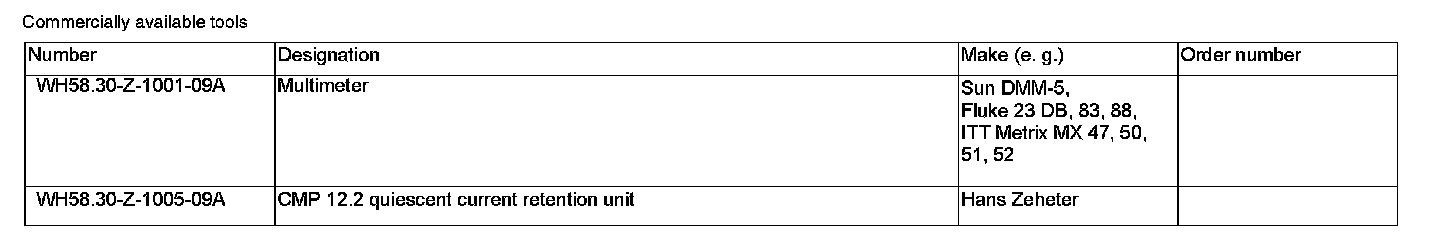

Commercially Available Tools:
