Home >> Mercedes Benz >> 2002 >> S 500 (220.175) V8-5.0L (113.960) >> Repair and Diagnosis >> Starting and Charging >> Starting System >> Ignition Lock >> Ignition Lock Cable >> Service and Repair

Ignition Lock Cable: Service and Repair



AR27.60-P-0122I Remove/install ignition lock control cable

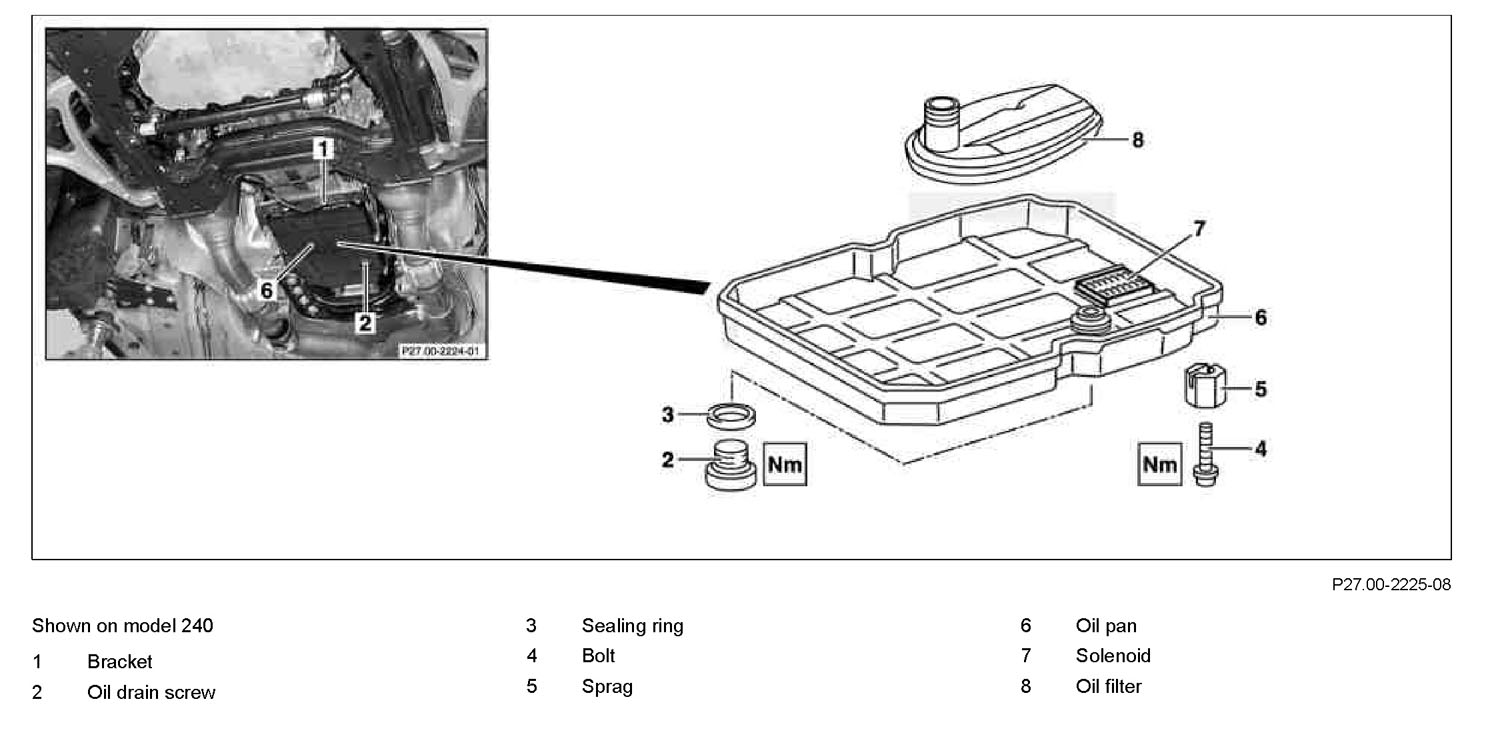

Component Identification:

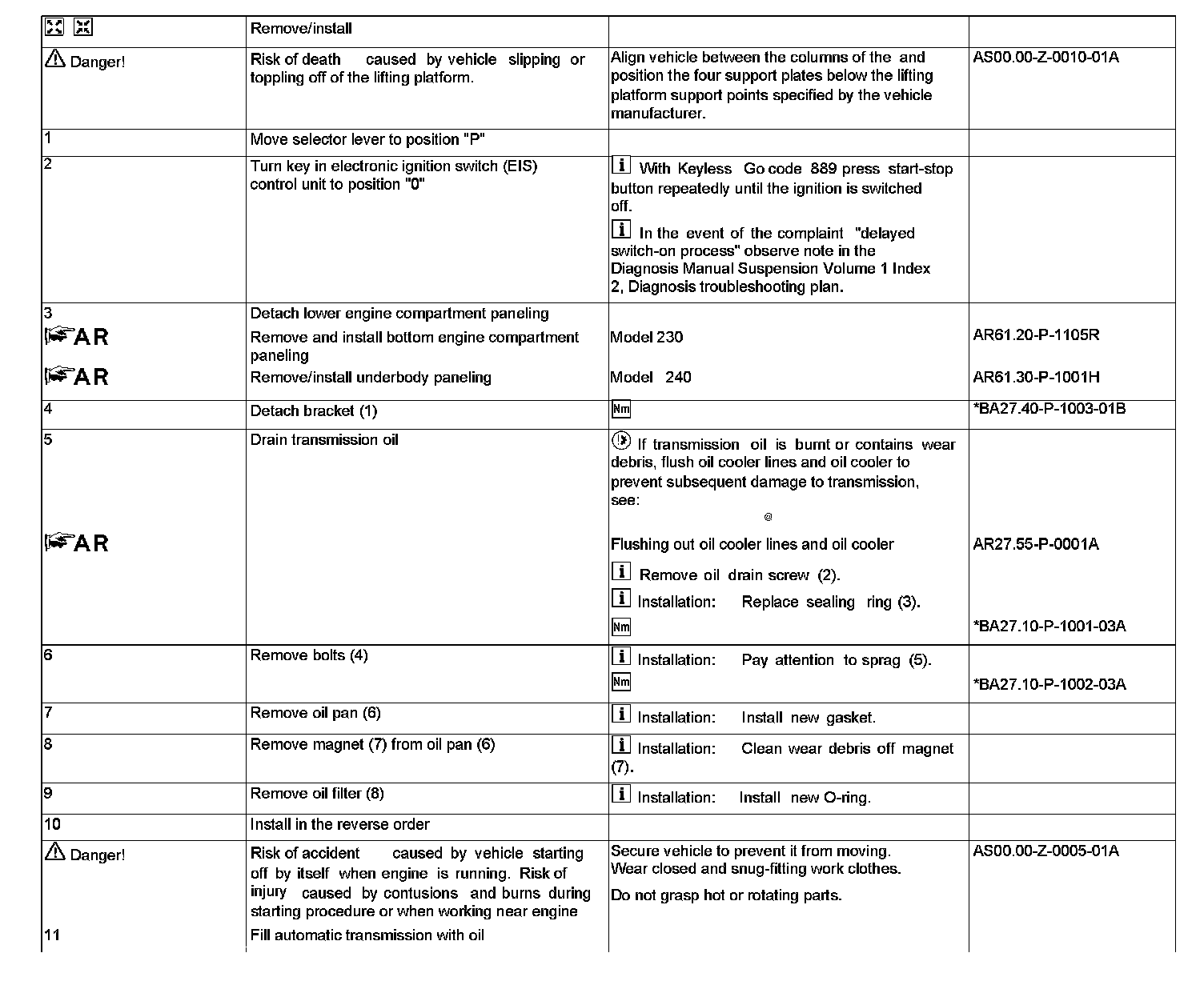

Steps 1 - 10:

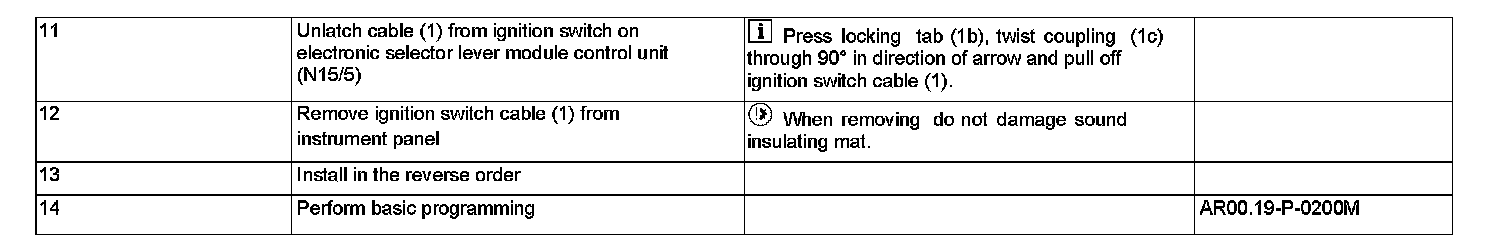

Steps 11 - 14:

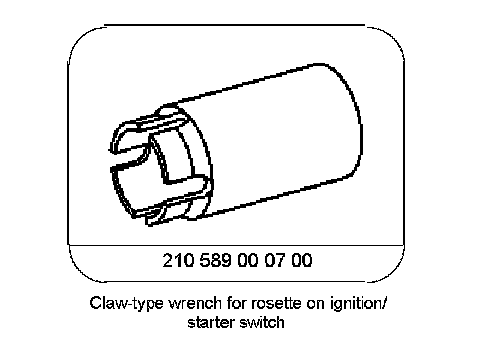

Special Tools:

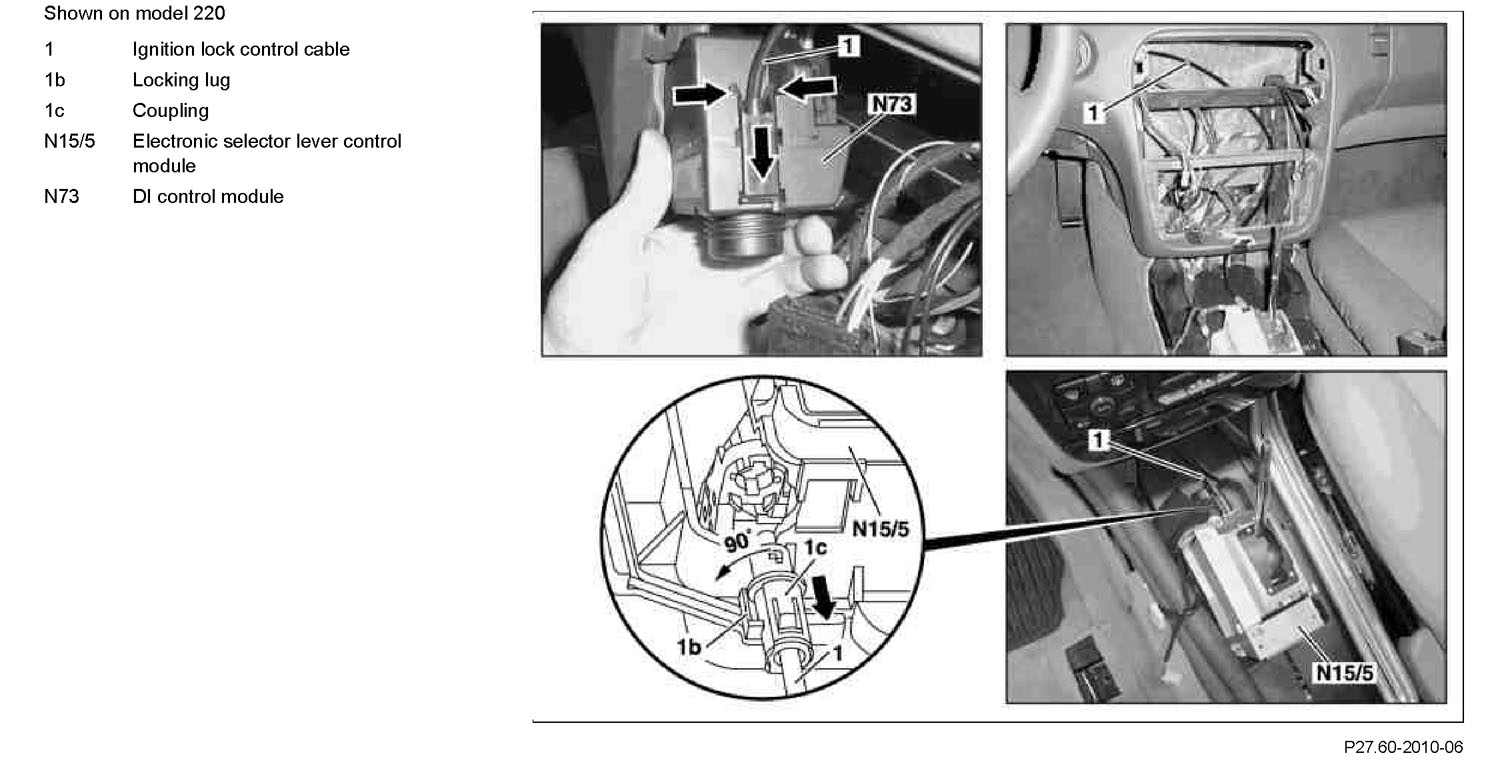

Component Identification:




Steps 1 - 11:
