FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Mercedes Benz
>>
2002
>>
S 500 (220.175) V8-5.0L (113.960)
>>
Repair and Diagnosis
>>
Starting and Charging
>>
Charging System
>>
Alternator
>>
Specifications
>>
BE15.40-P-1000-01K Test Values For Alternator
BE15.40-P-1000-01K Test Values For Alternator
BE15.40-P-1000-01K Test values for
alternator

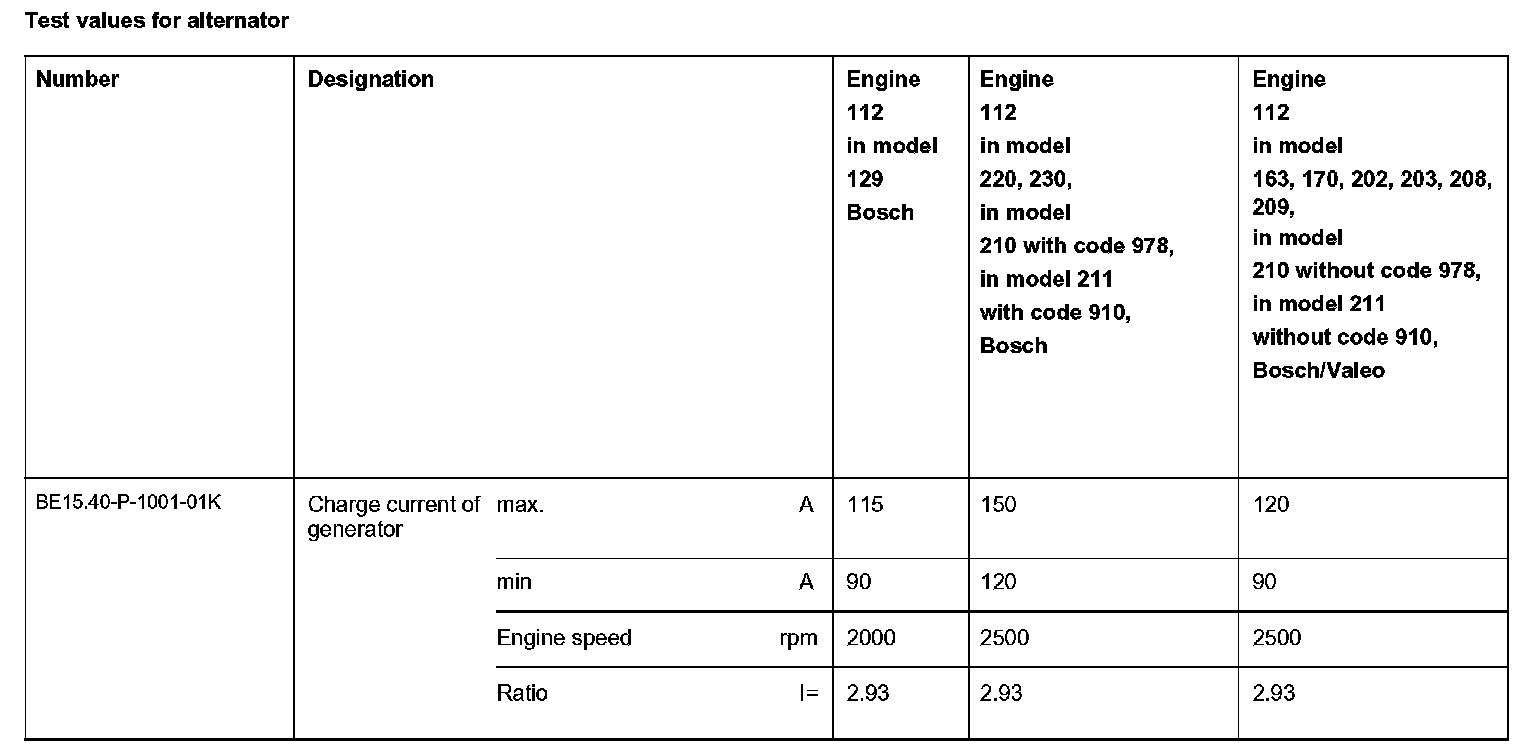

Test values for alternator:

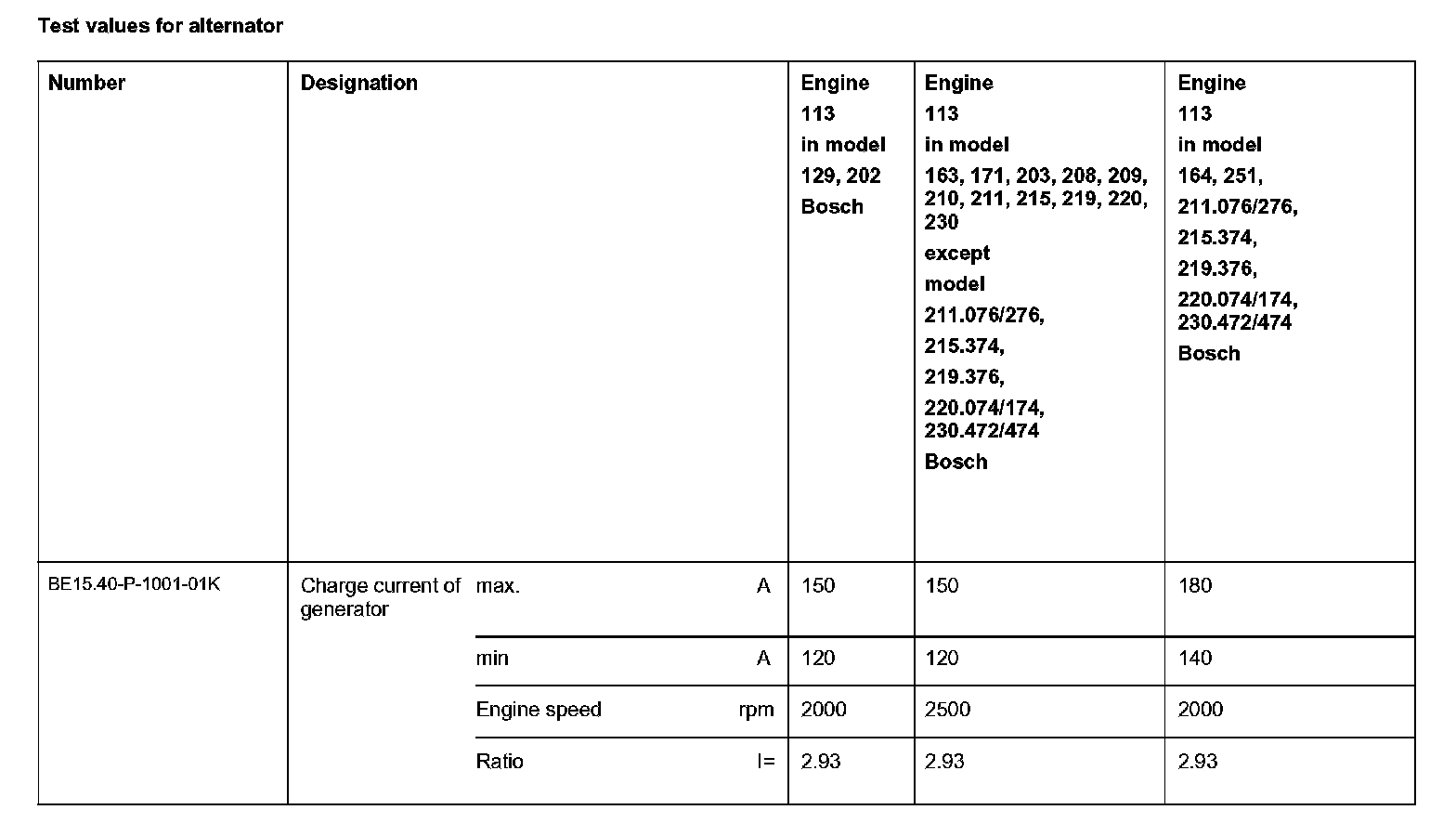

Test values for alternator:
