AP54.10-P-5452M Batteries - Check State of Charge, Recharge



AP54.10-P-5452M Batteries - Check State of Charge, Recharge
- Emergency Start Battery
- with CODE (Z04) Light armoring
- with CODE (Z07) Top protection

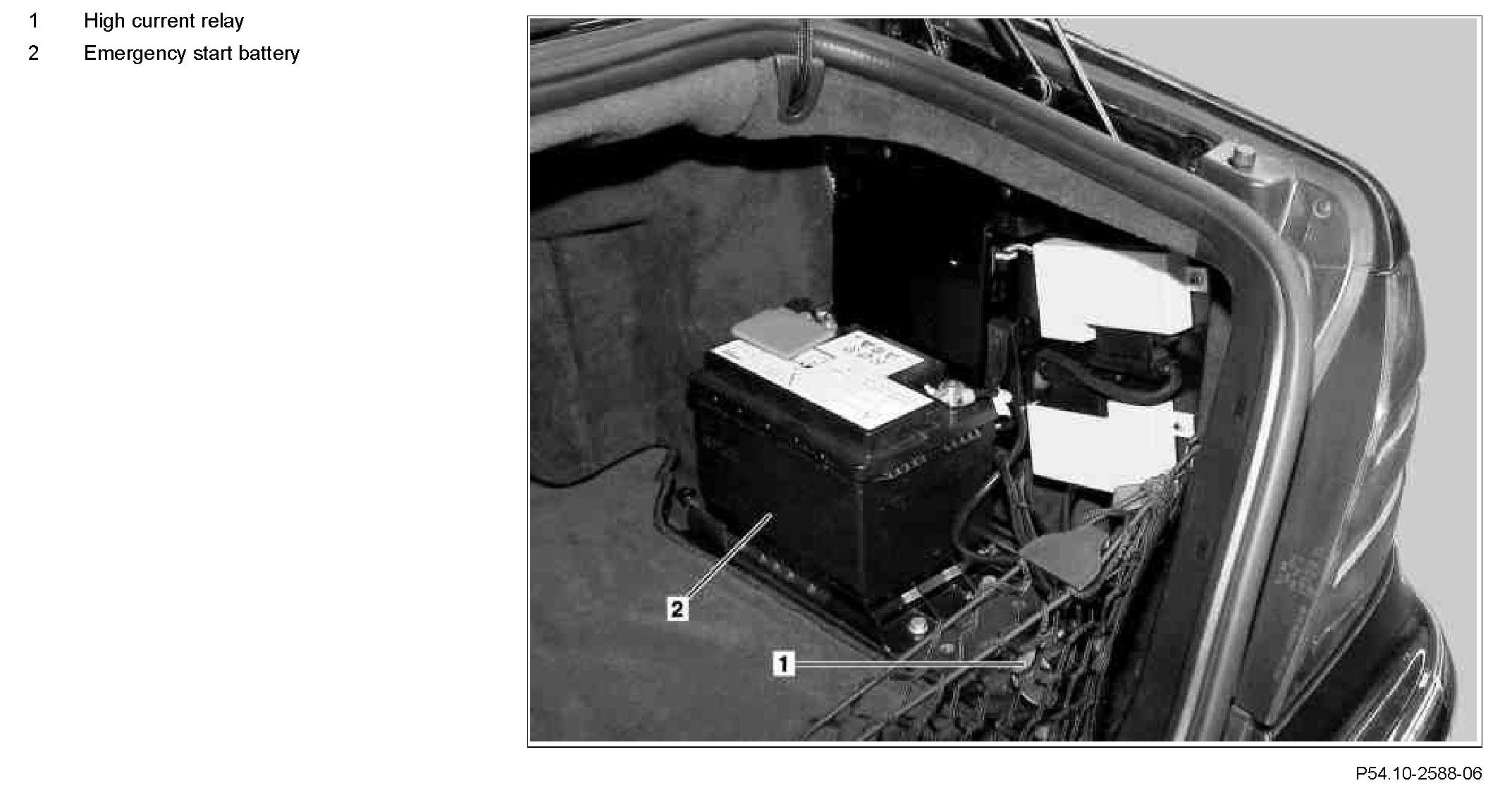

Component Identification:

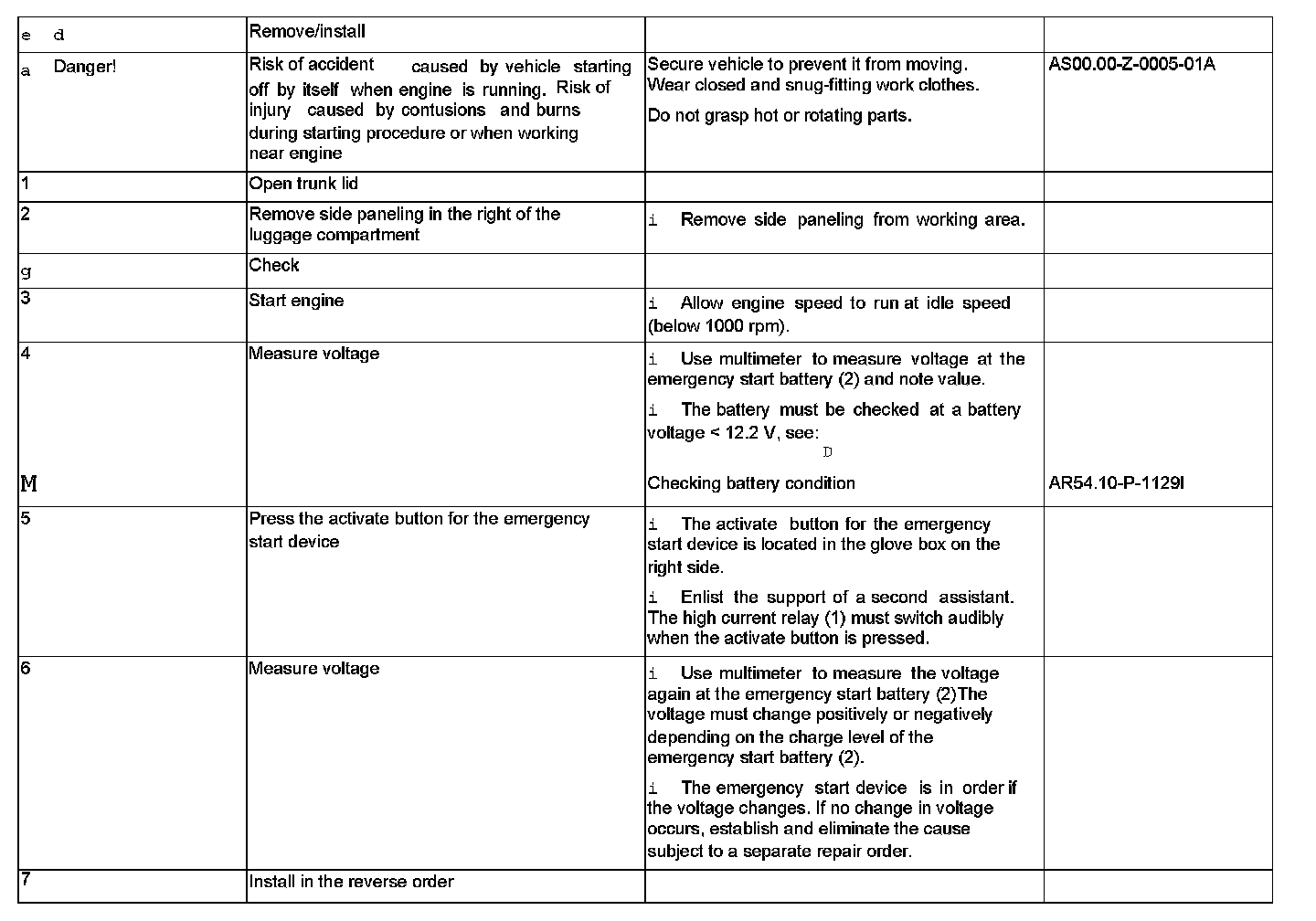

Steps 1 - 7:
