System Specifications

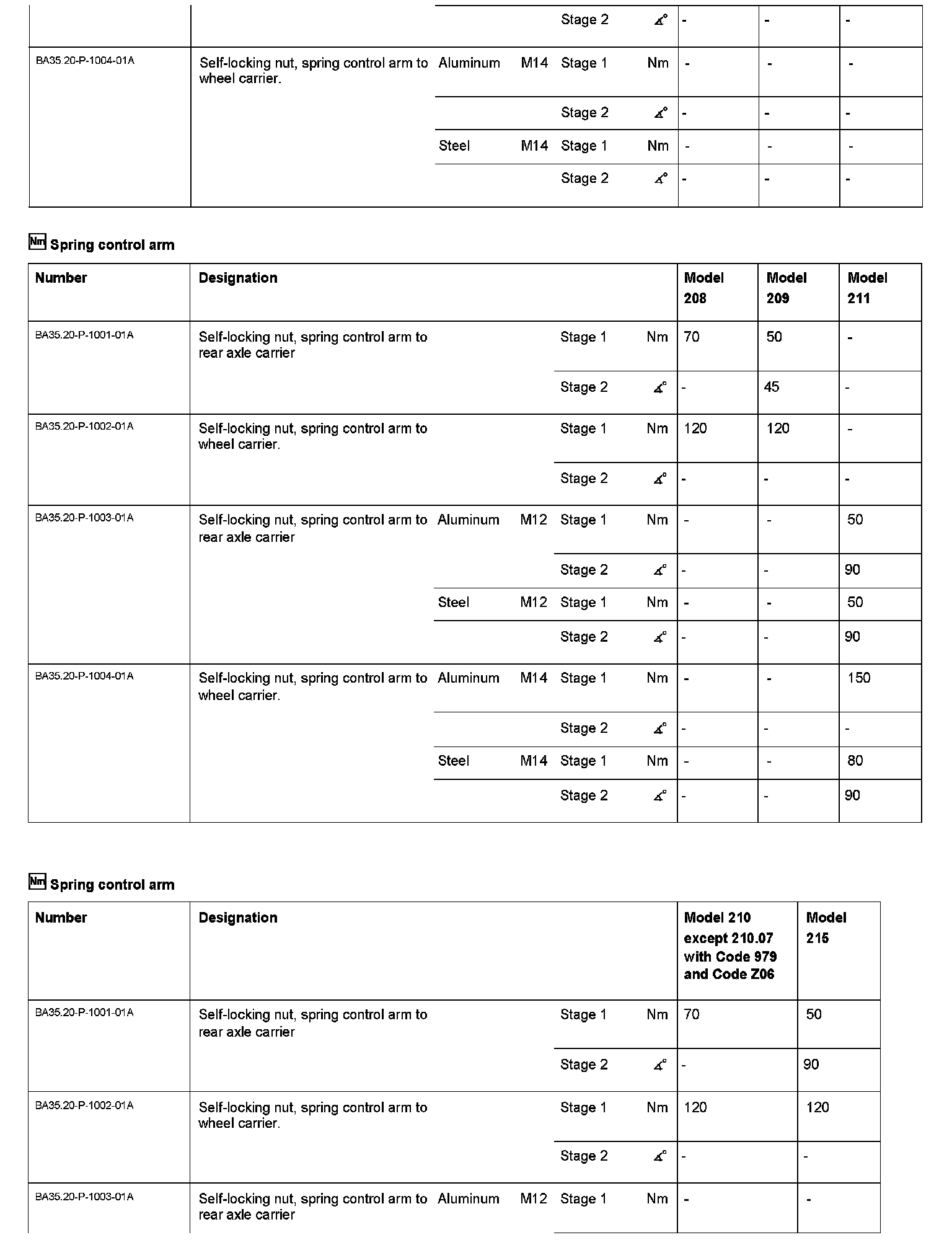

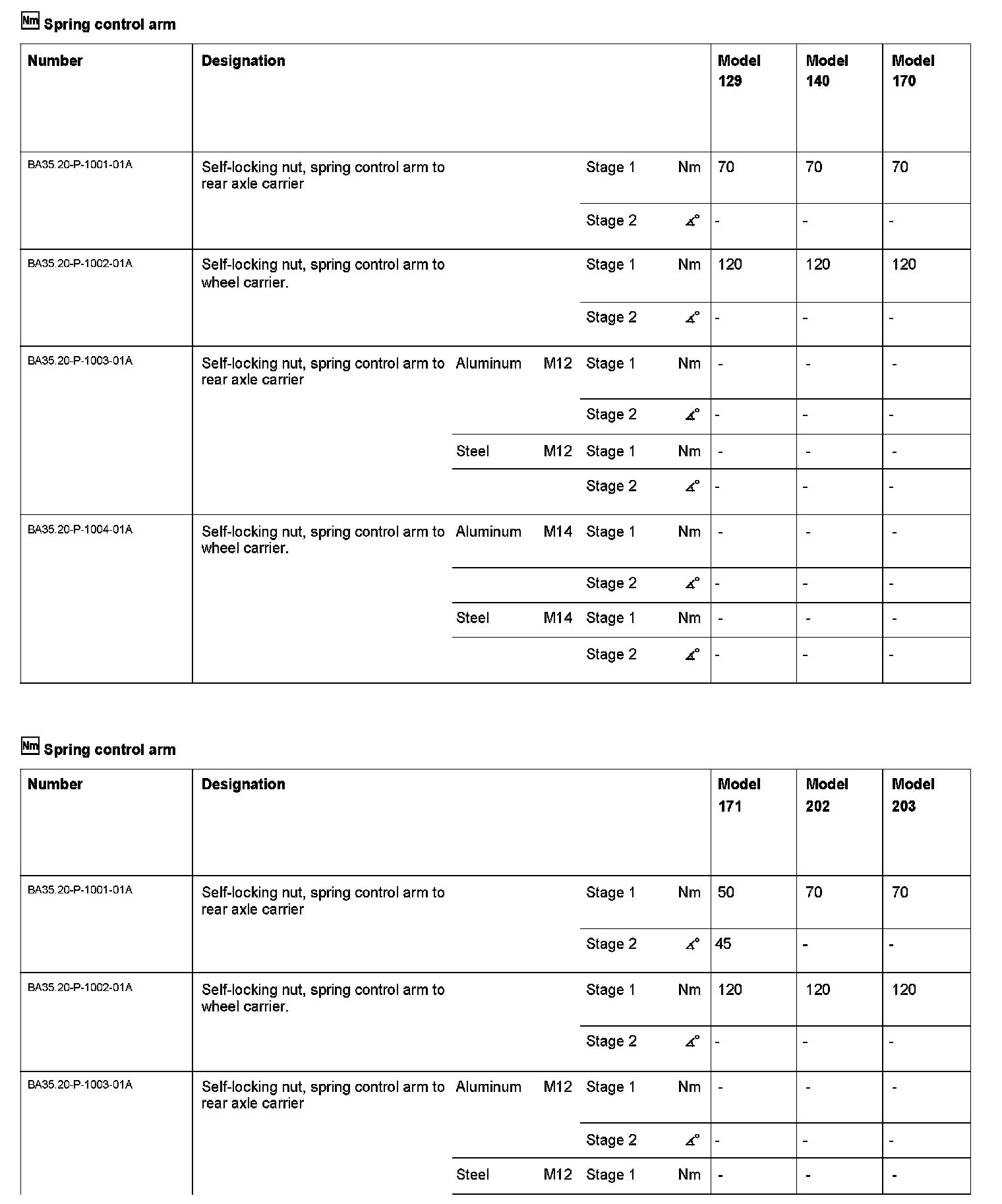

BA35.20-P-1000-01A Spring Control Arm
Model 129, 140, 170, 171, 202, 203, 208, 209, 210, 211, 215, 216, 220, 221, 230
