Compressor HVAC



BA83.55-P-1000-01A Refrigerant Compressor

Modification notes

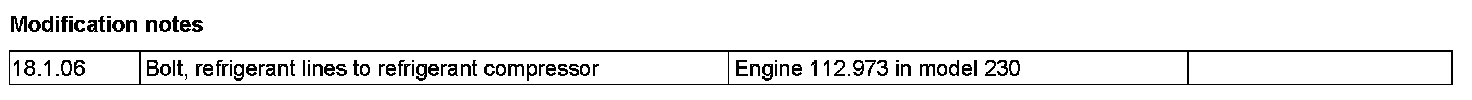

Modification Notes:






Refrigerant compressor


Refrigerant Compressor:

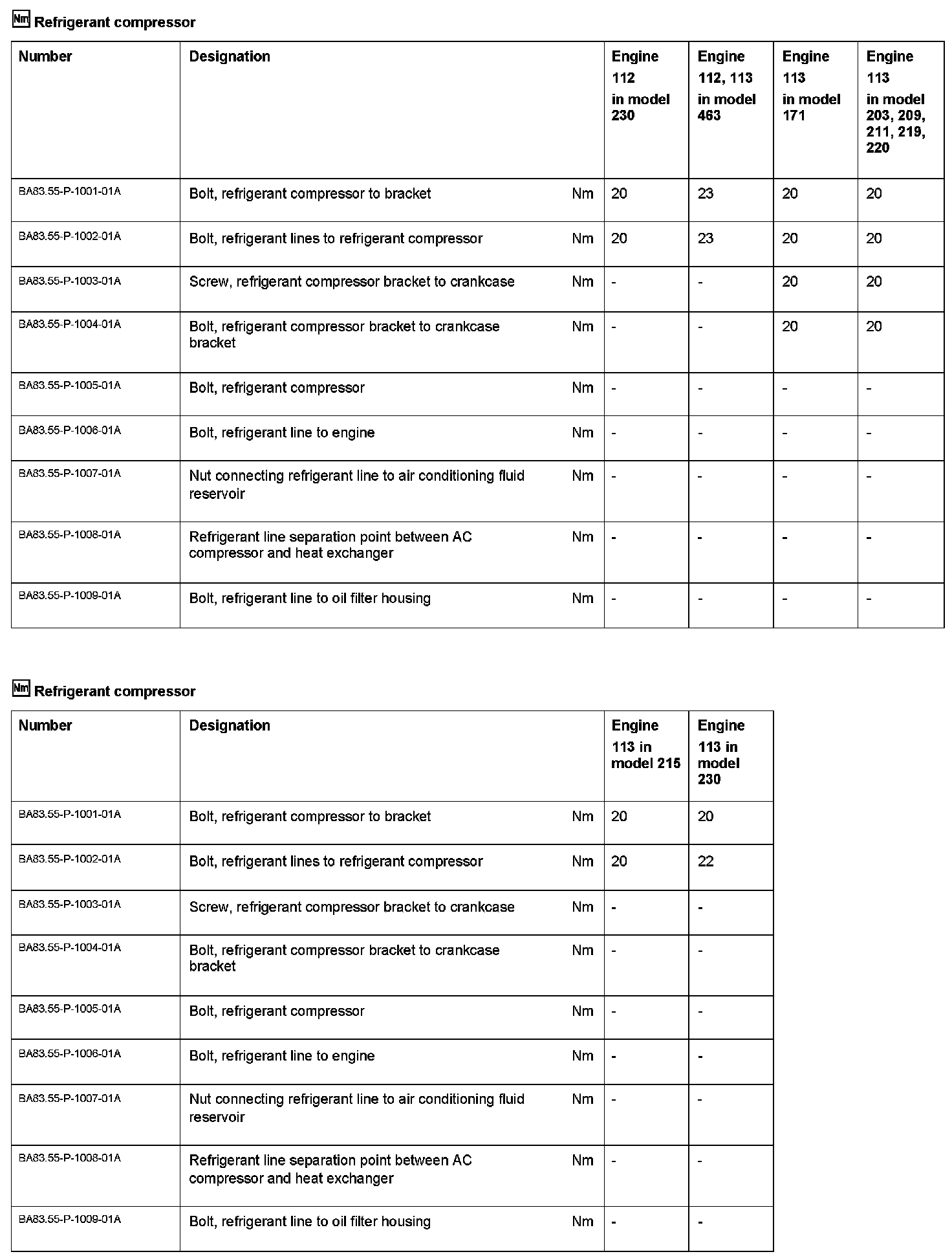

Refrigerant Compressor:

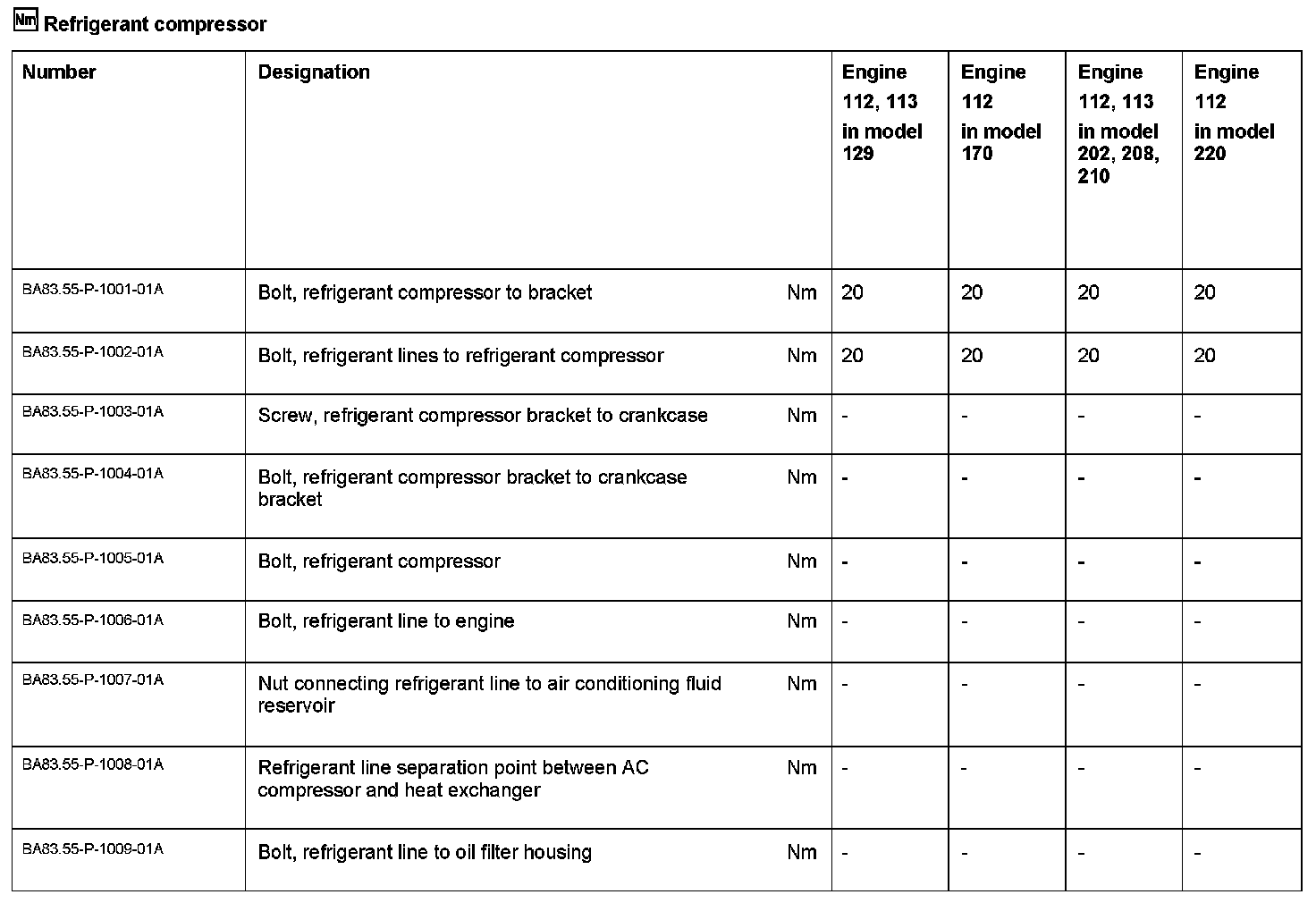

Refrigerant Compressor:

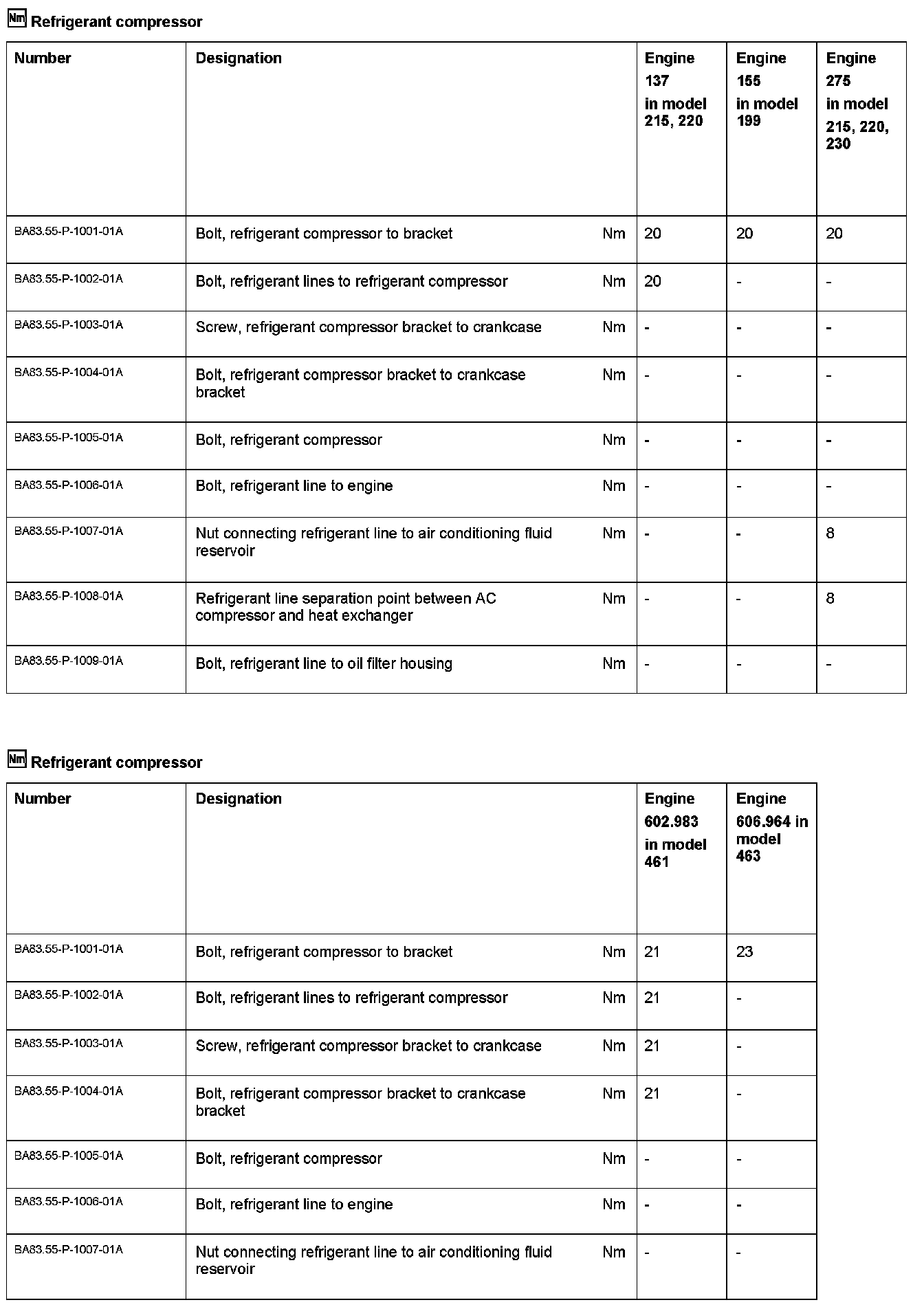

Refrigerant Compressor:

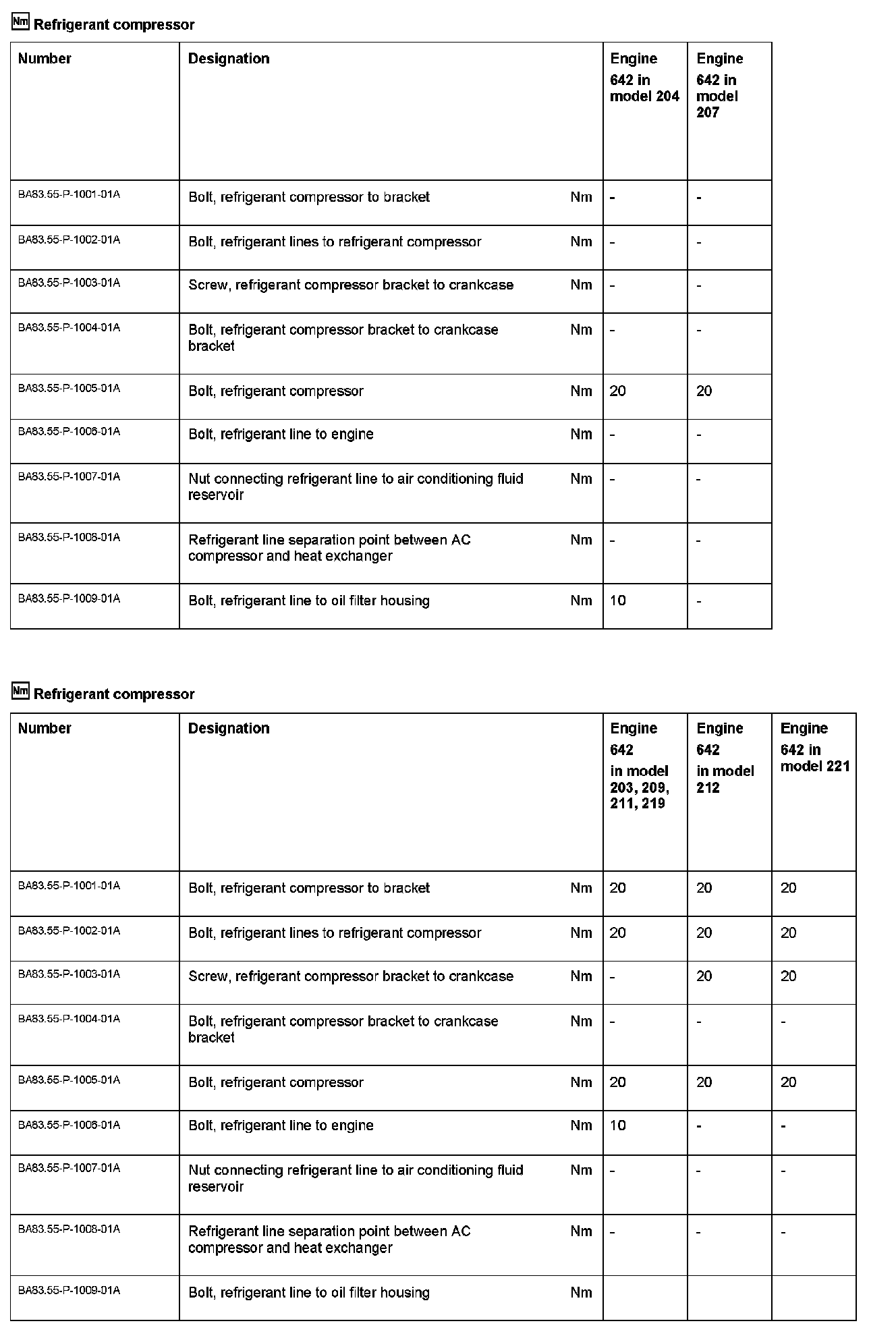

Refrigerant Compressor:
