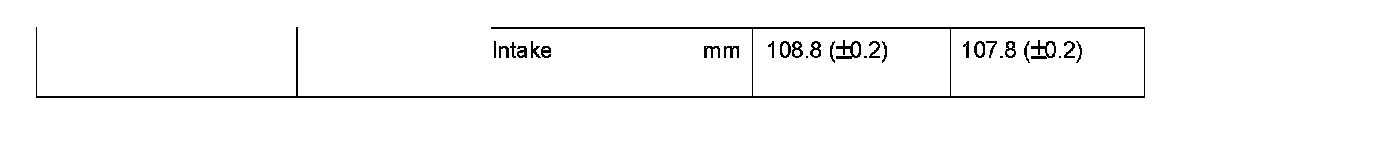

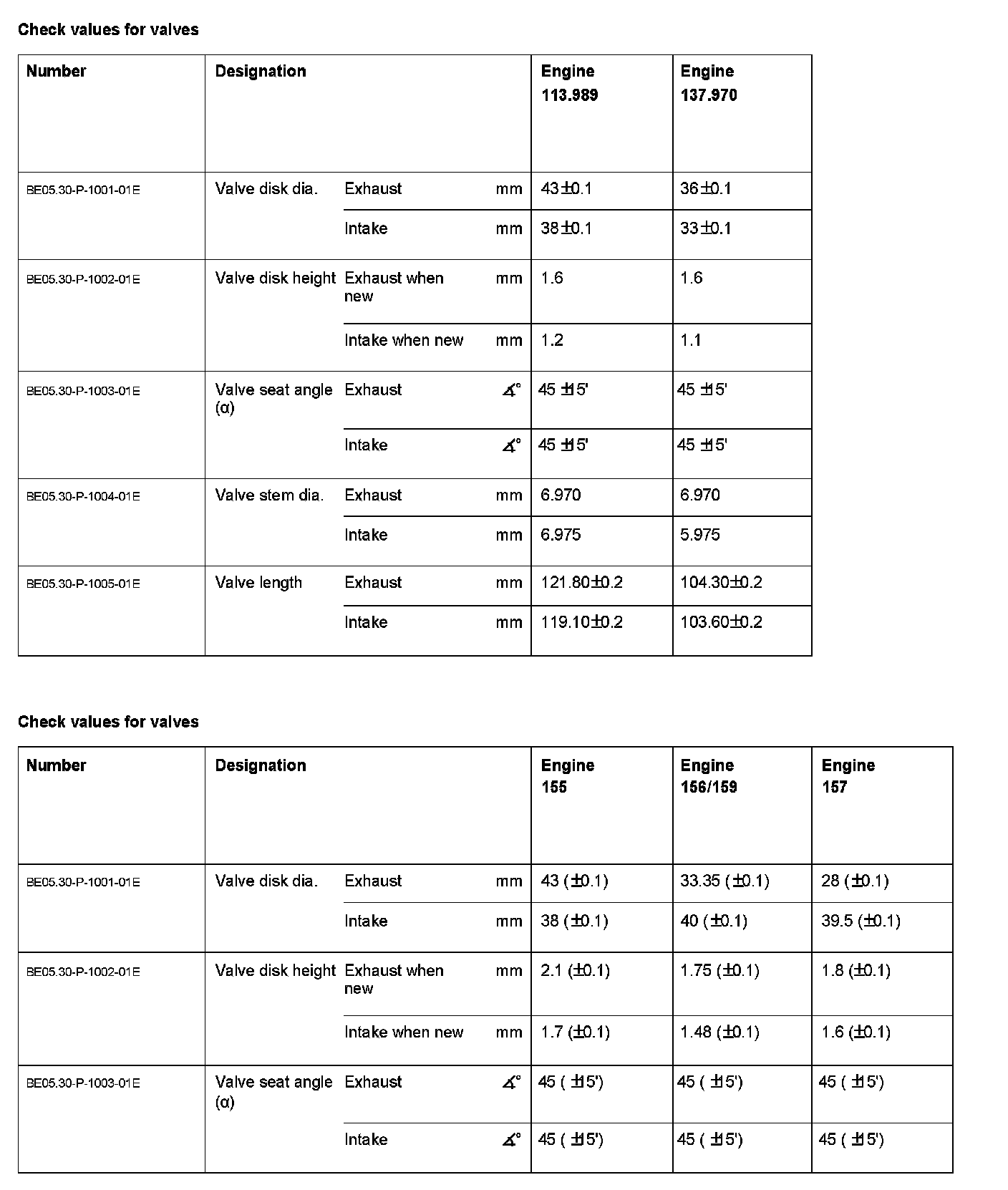

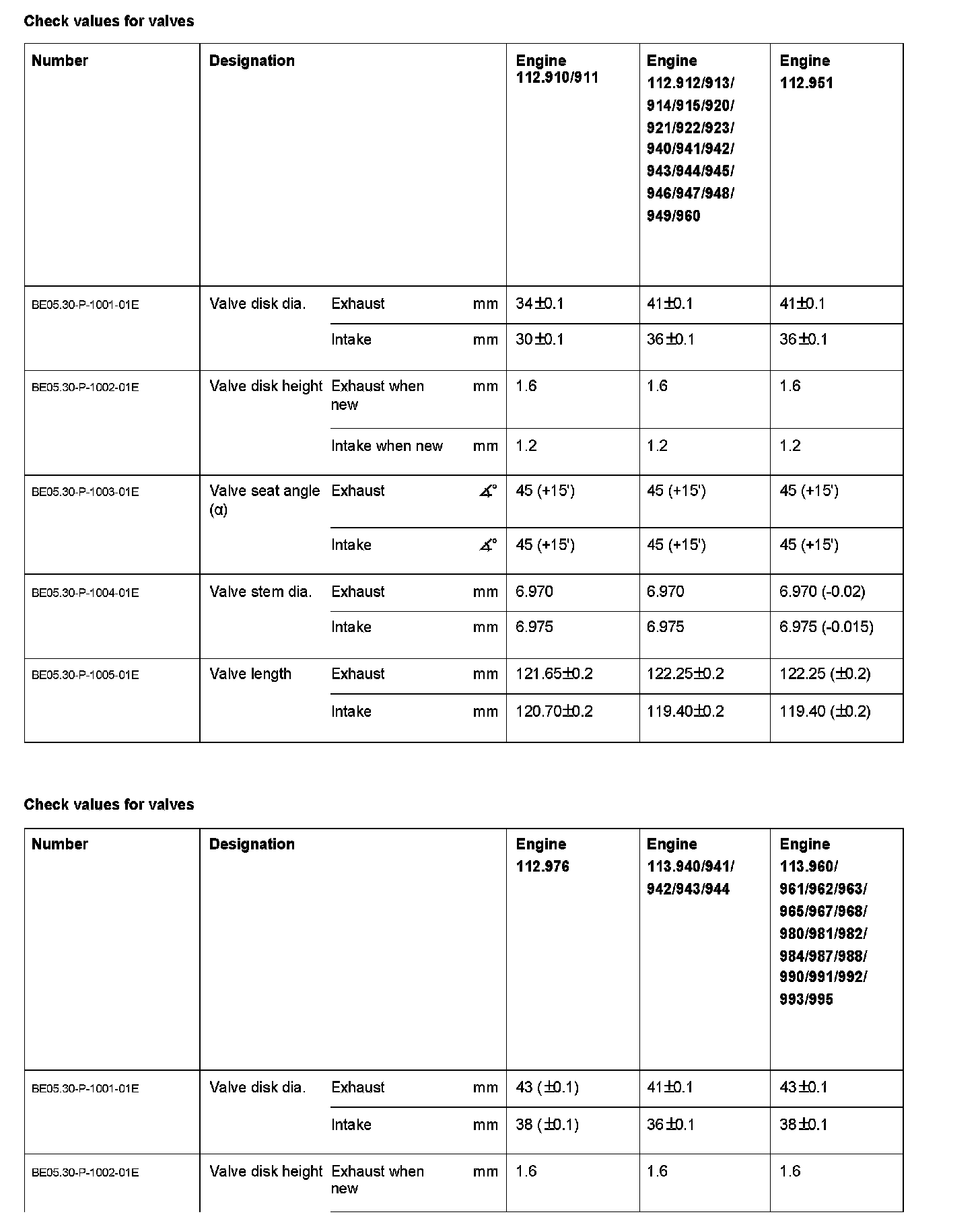

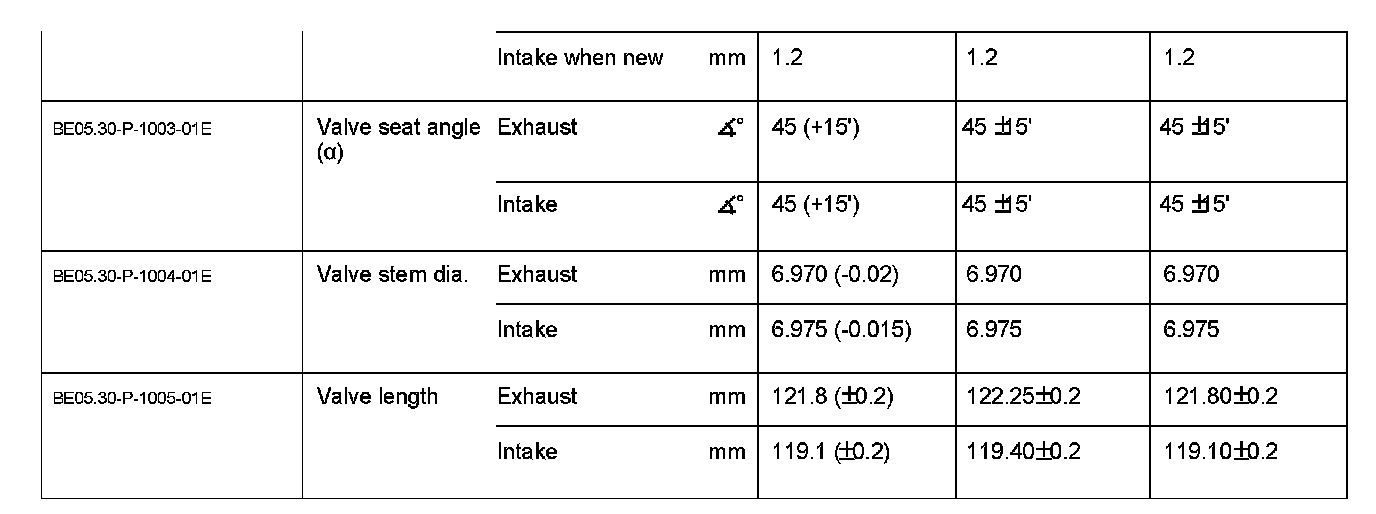

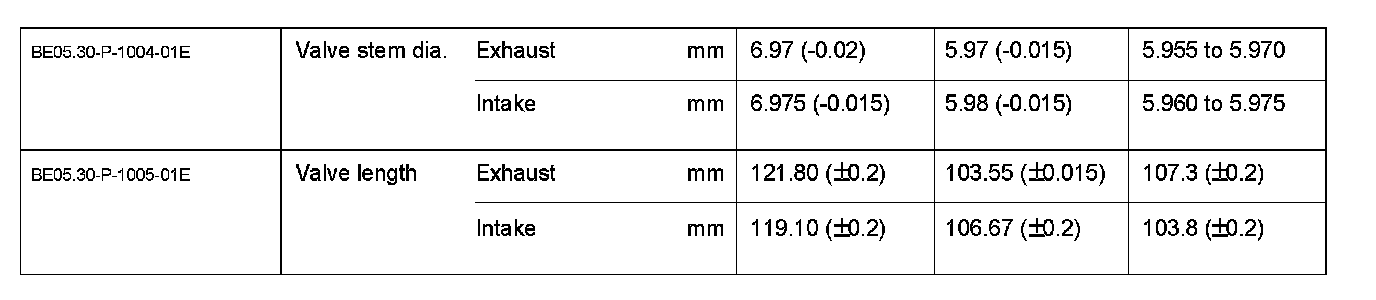

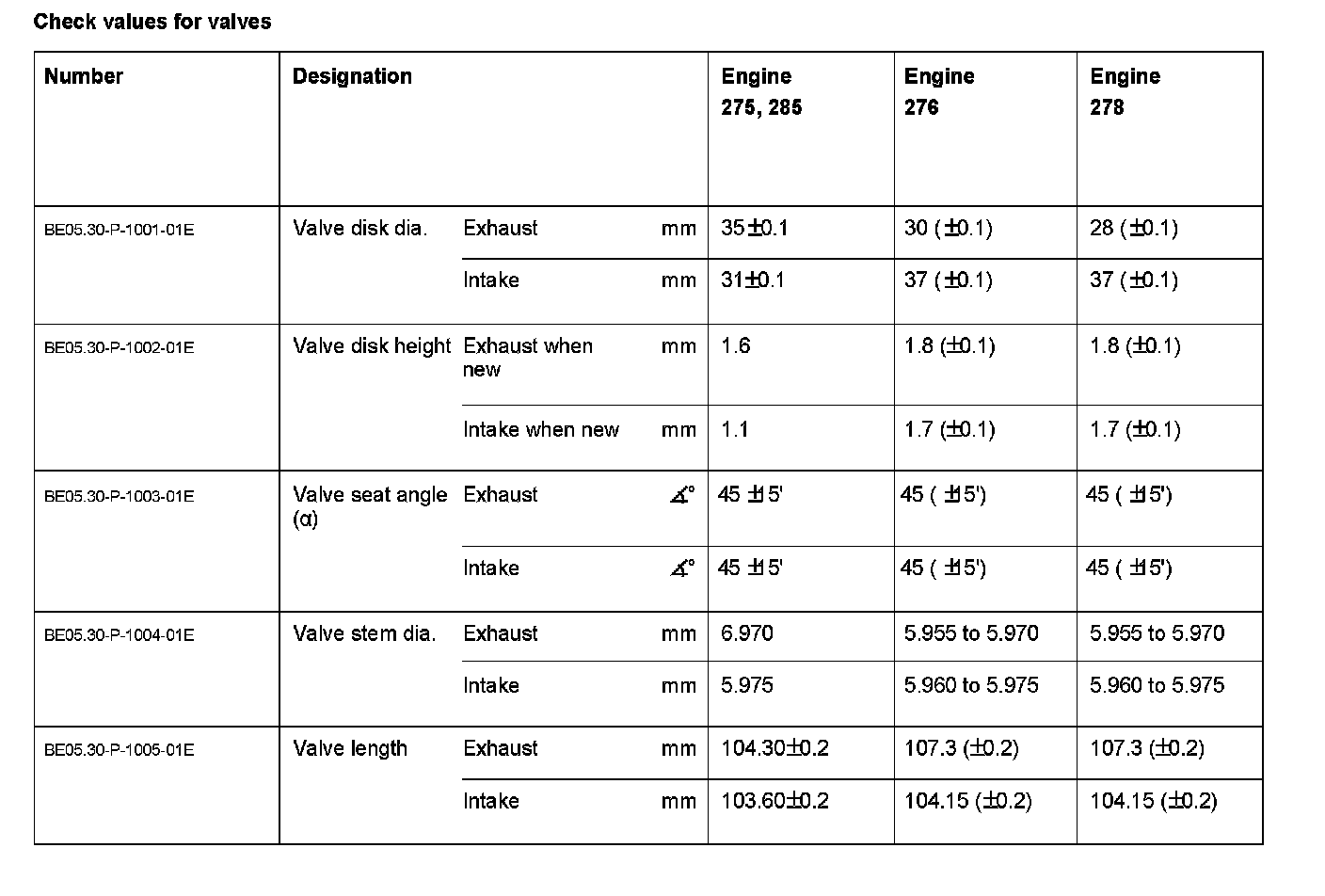

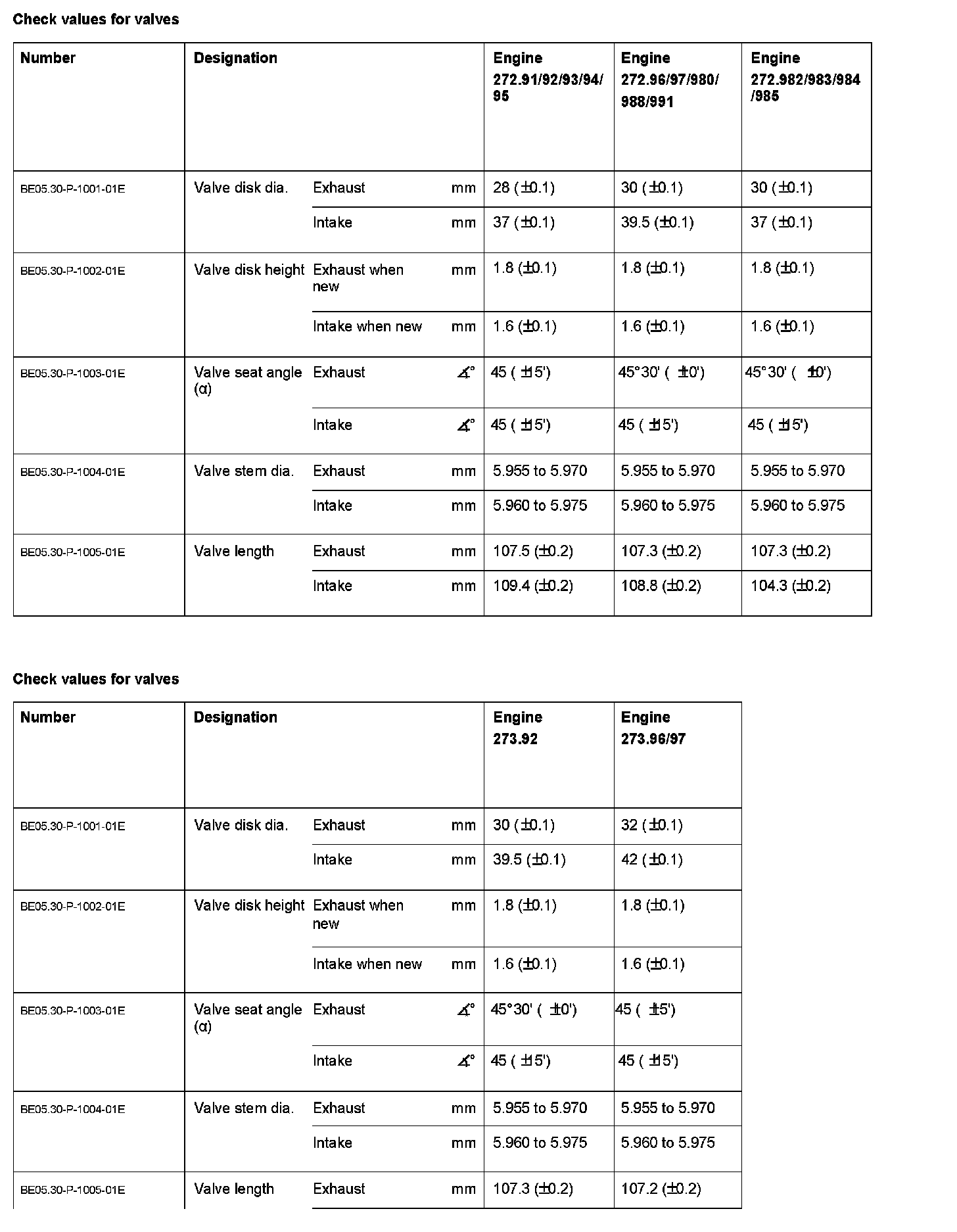

BE05.30-P-1000-01E Check Values For Valves
ENGINE 112, 113, 137, 155, 156, 157, 159, 275, 276, 278, 285
