FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Mercedes Benz
>>
2002
>>
S 500 (220.175) V8-5.0L (113.960)
>>
Repair and Diagnosis
>>
Specifications
>>
Mechanical Specifications
>>
Engine
>>
Cylinder Block Assembly
>>
Piston, Engine
>>

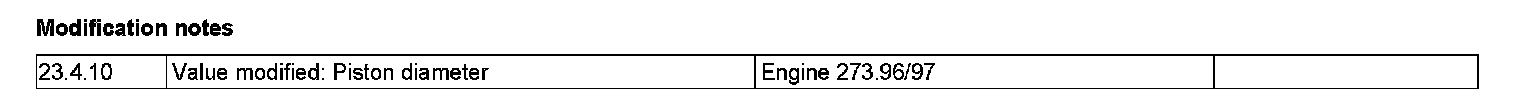

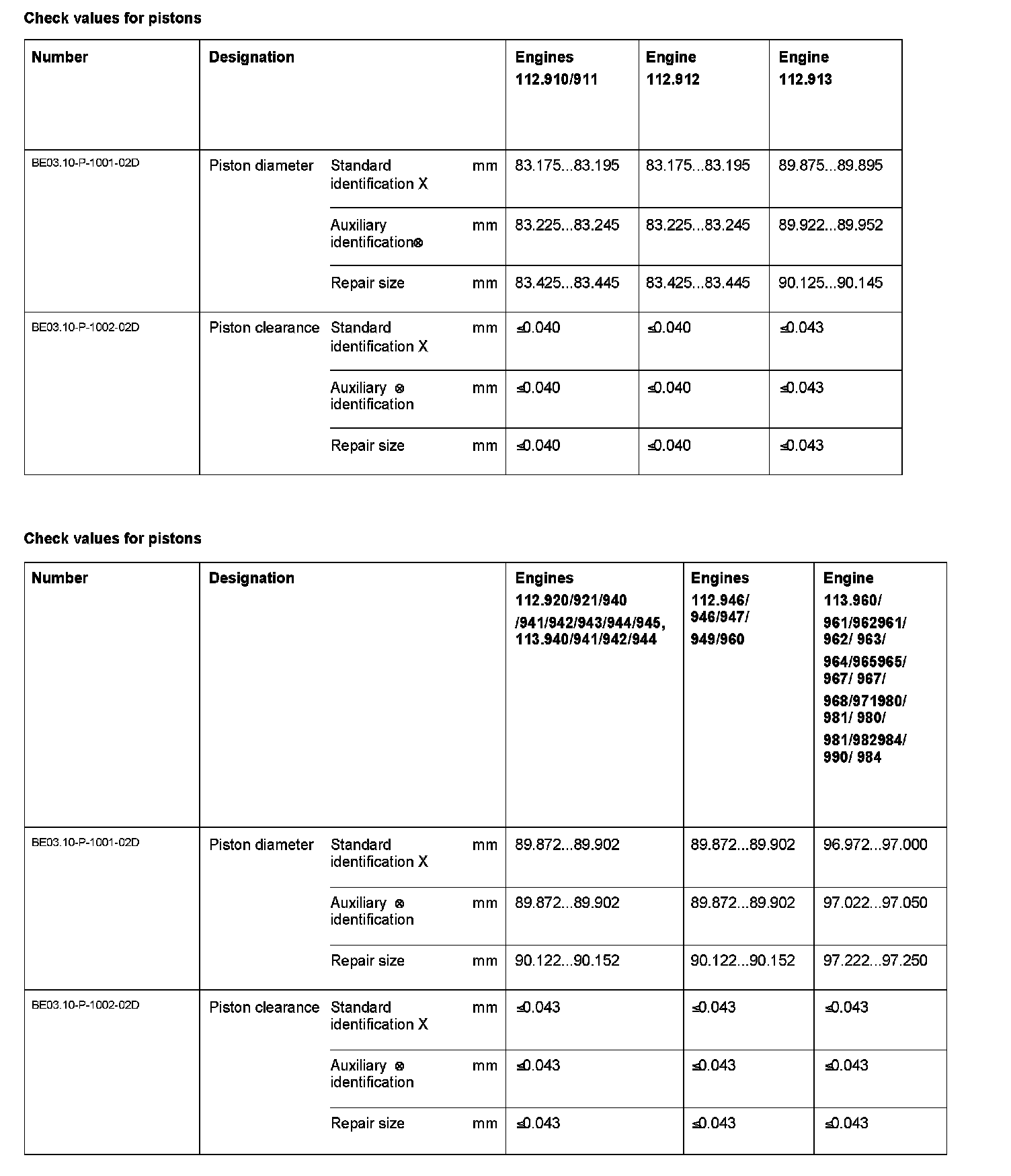

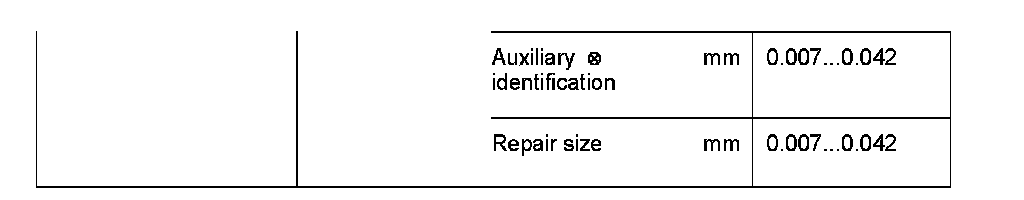

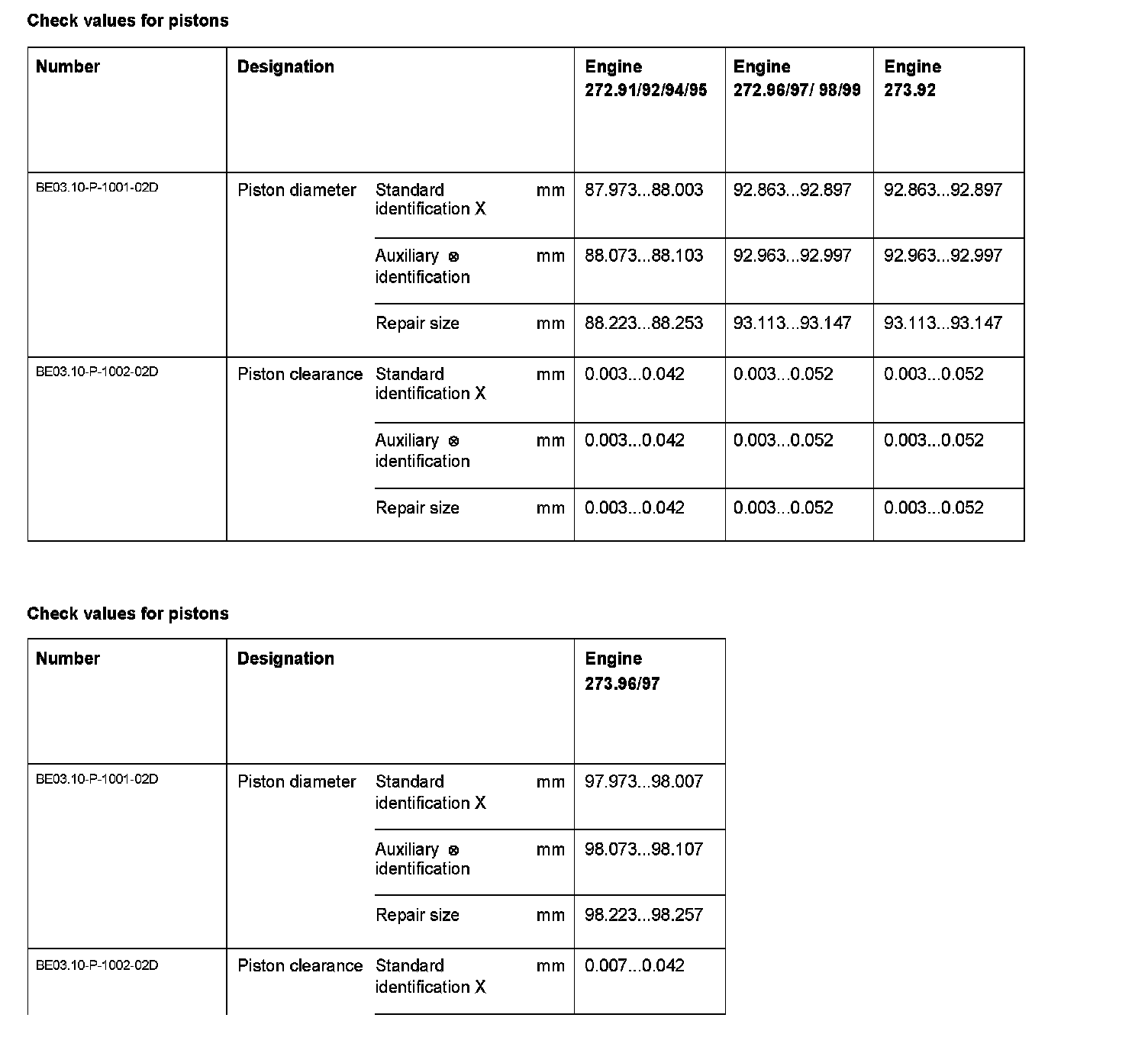

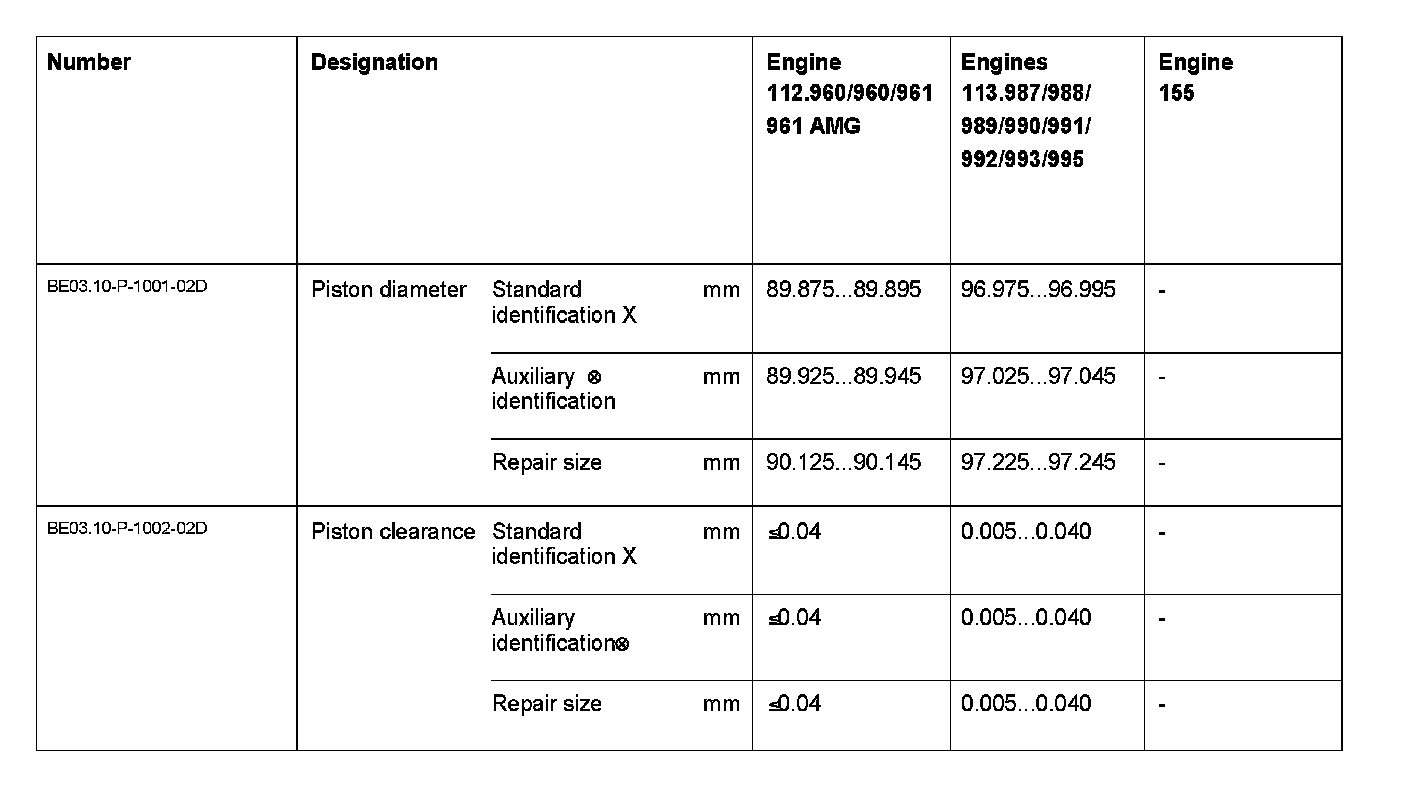

BE03.10-P-1000-02D Check Values For Pistons
BE03.10-P-1000-02D Check Values For Pistons
BE03.10-P-1000-02D Check Values For Pistons
ENGINES 112, 113, 155, 272, 273
