Rain Sensor: Service and Repair

AR82.30-P-7700M Remove/Install Rain Sensor

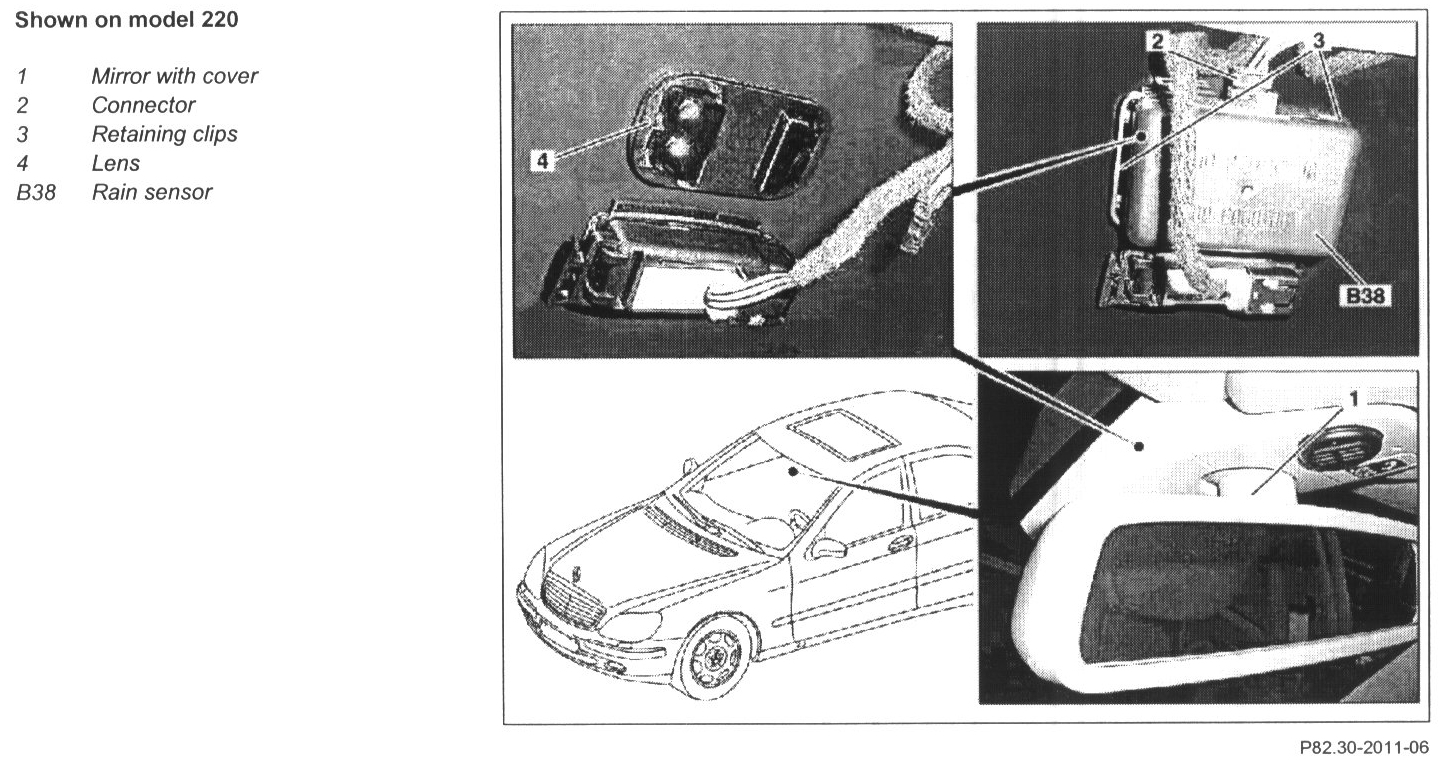

Shown On Model 220:

DANGER:
- Risk of injury by trapping or crushing, in extreme cases with loss of limbs when working in windshield wiper mechanism
- Always remove ignition key when working on windshield wiper mechanism.

1 Pull mirror with cover (1) downward
2 Disconnect connector (2)
3 Unlock retaining clips on left and right
4 Remove rain sensor (B38)

NOTE: Lens (4) is glued to the windscreen. Do not change!

5 Install in the reverse order
6 Carry out operational check.
