AR72.29-P-0110M Remove/Install Front Driver Door Power Window Switch

AR72.29-P-0110M Remove/Install Front Driver Door Power Window Switch

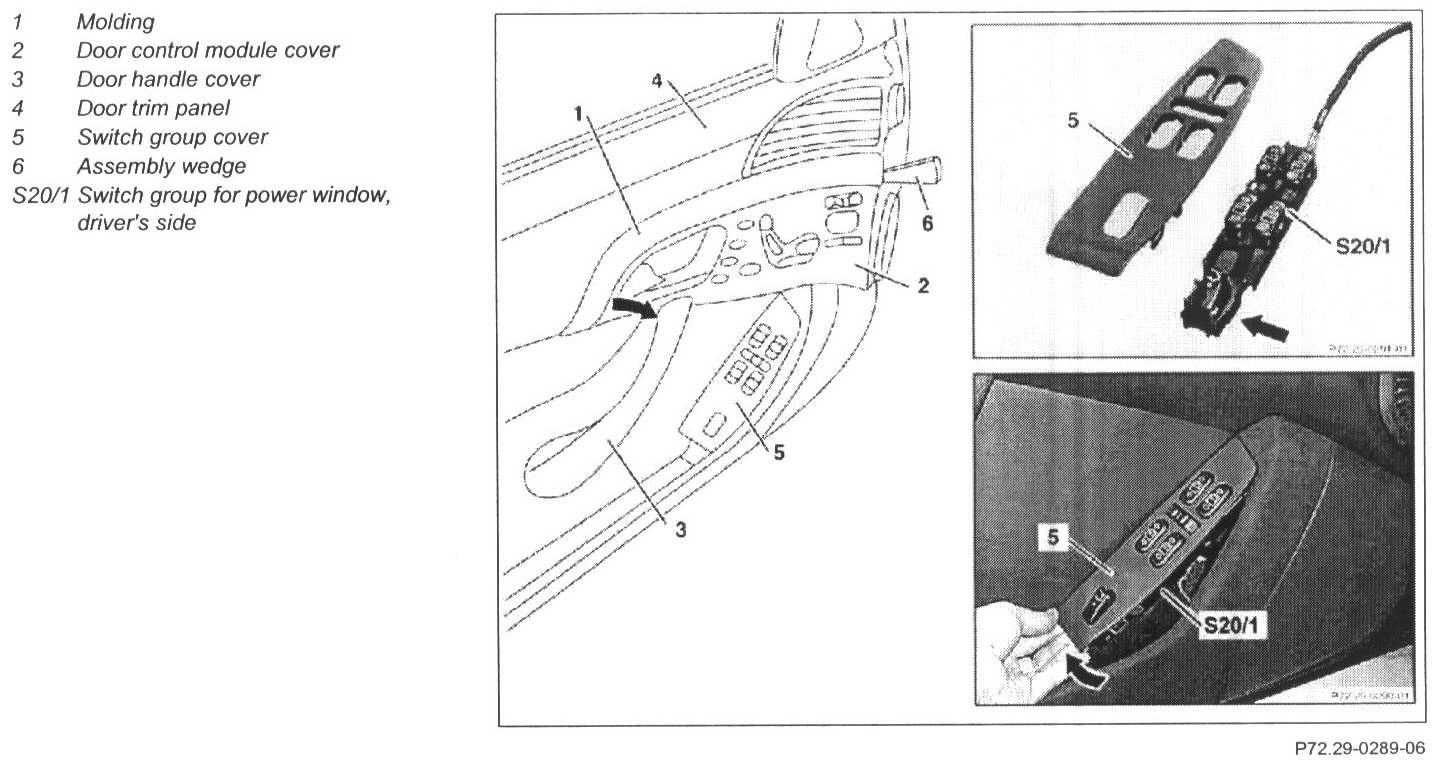

1 Press molding strip (1) out of door control module cover (2) on driver's door with assembly wedge (6)
- See "Special Tools" below.

2 Remove door handle cover (3) from door handle in direction of arrow
3 Unscrew door control module cover (2) from door liner (4) of driver's door and press off with assembly wedge (6)
- See "Special Tools" below.

4 Unclip switch group cover (5) with switch group for power window, driver's side (S20/1) from door liner

CAUTION: For this purpose slightly press cover in at bottom edge (arrow) and lift until cover can be removed together with switch group for power window, driver's side (S20/1)

5 Remove power window switch group connector, driver's side from door control module
6 Remove switch group cover (5) from power window switch group, driver's side (S20/1)

CAUTION: For this purpose press retaining lugs (arrows) for power window switch group, driver's side (S20/1) together with suitable tool until power window switch group, driver's side (S20/1) can be removed out of switch group cover (5) toward inside

NOTE: Power window switch group, driver's side (S20/1) can only be replaced completely.

7 Install in the reverse order.

Special tools

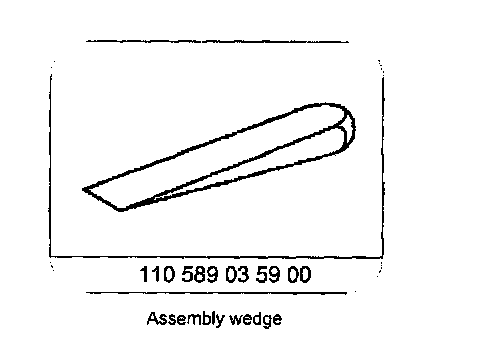

Assembly Wedge P/N # 110 589 03 59 00:
