Tire Pressure Sensor: Testing and Inspection



AP40.15-P-4056M Checking tire pressure monitor battery
- with CODE (Z04) Light armoring
- with CODE (Z07) Top protection
- with CODE (475) Tire pressure monitor (Beru)

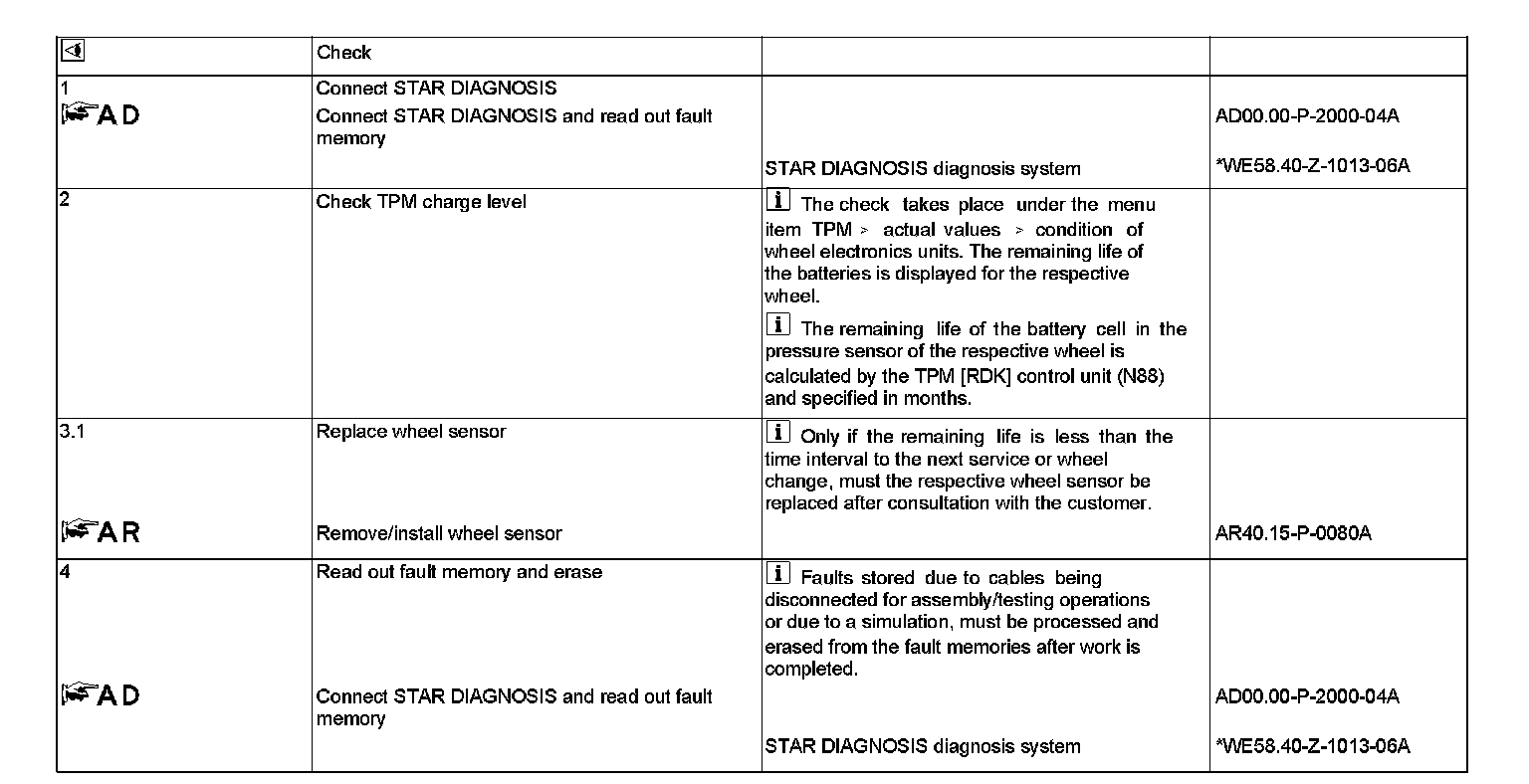

Steps 1 - 4:

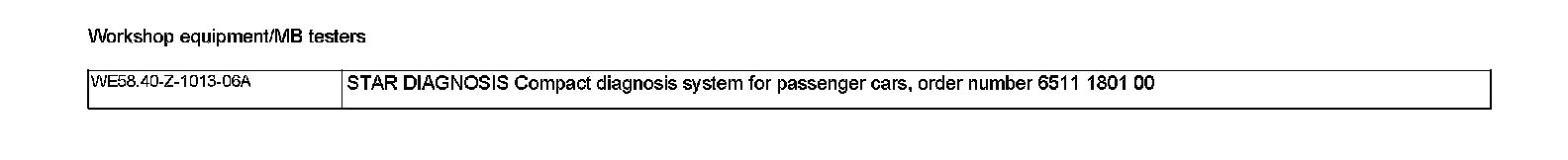

Workshop Equipment/MB Testers:
