Suspension Control Pressure Sensor/Switch: Service and Repair



AR32.50-P-0014N Remove/install pressure sensor for Active Body Control

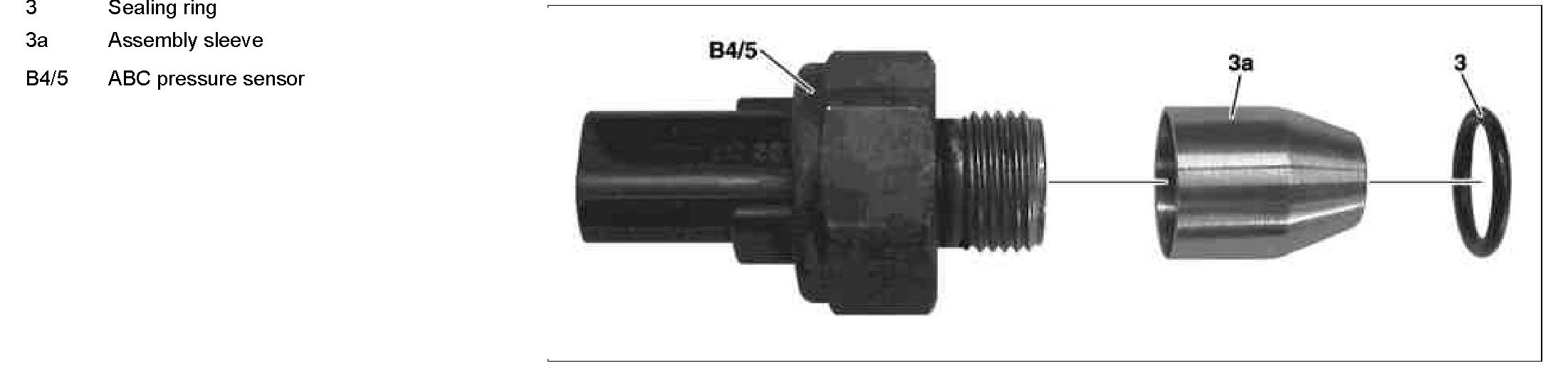

Component Identification:

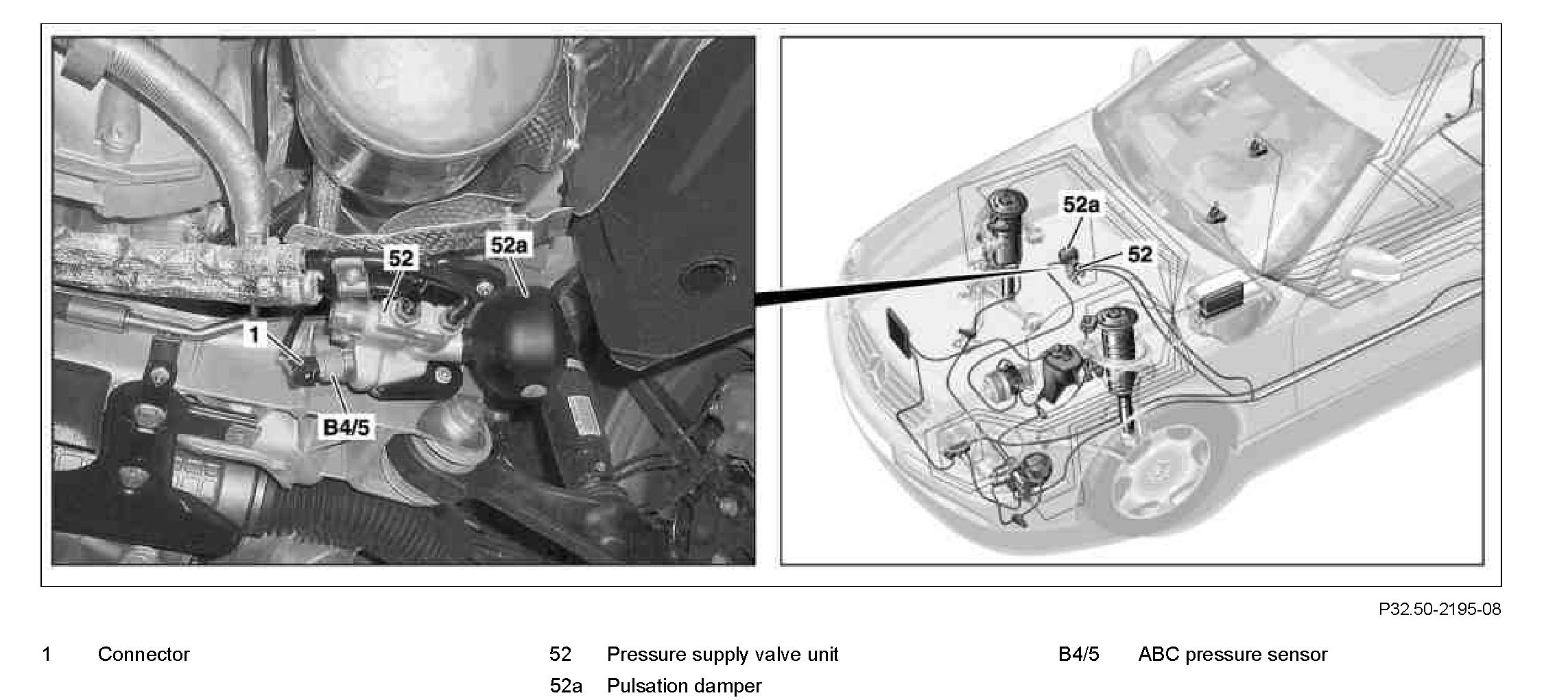

Component Identification:

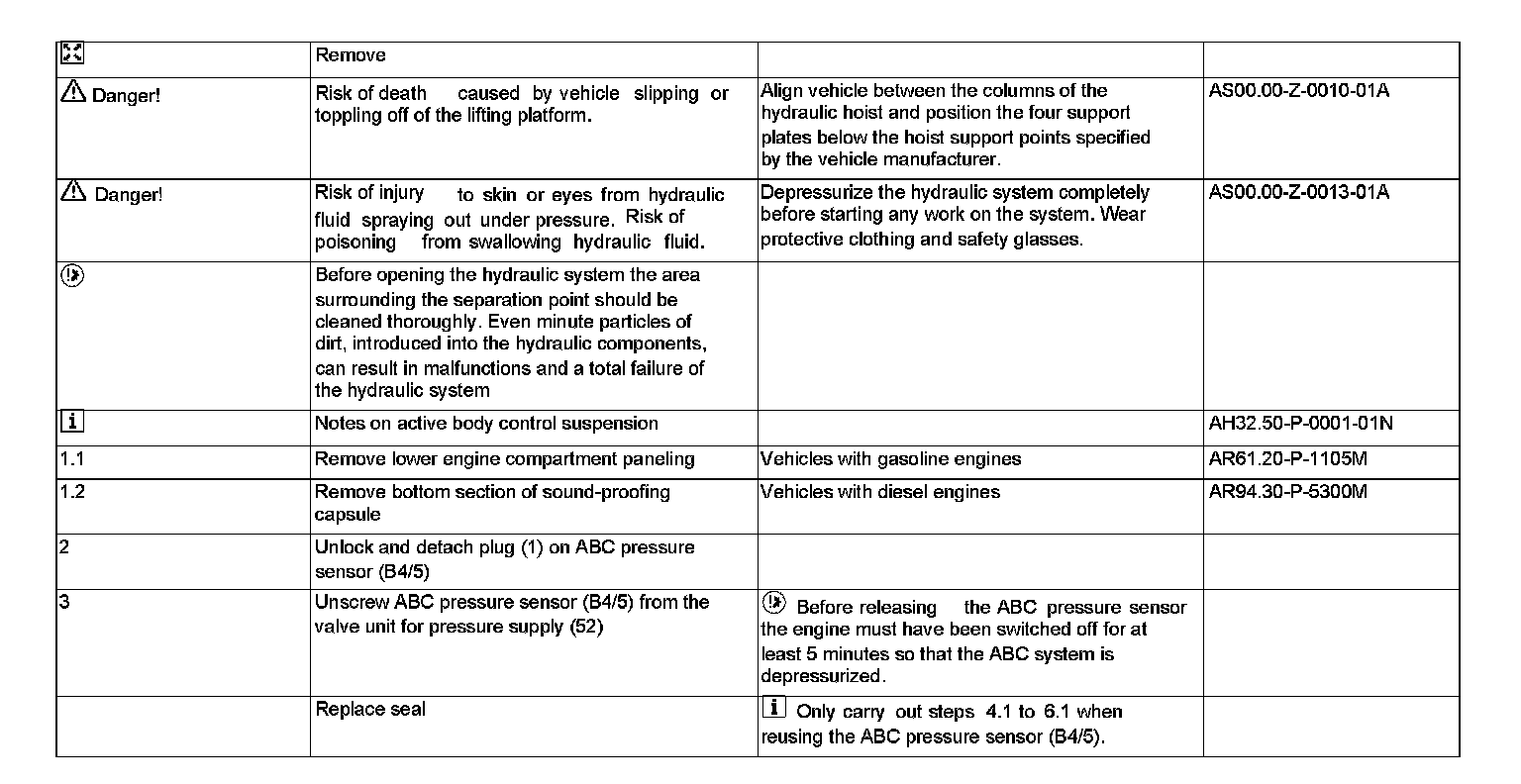

Steps 1 - 3:

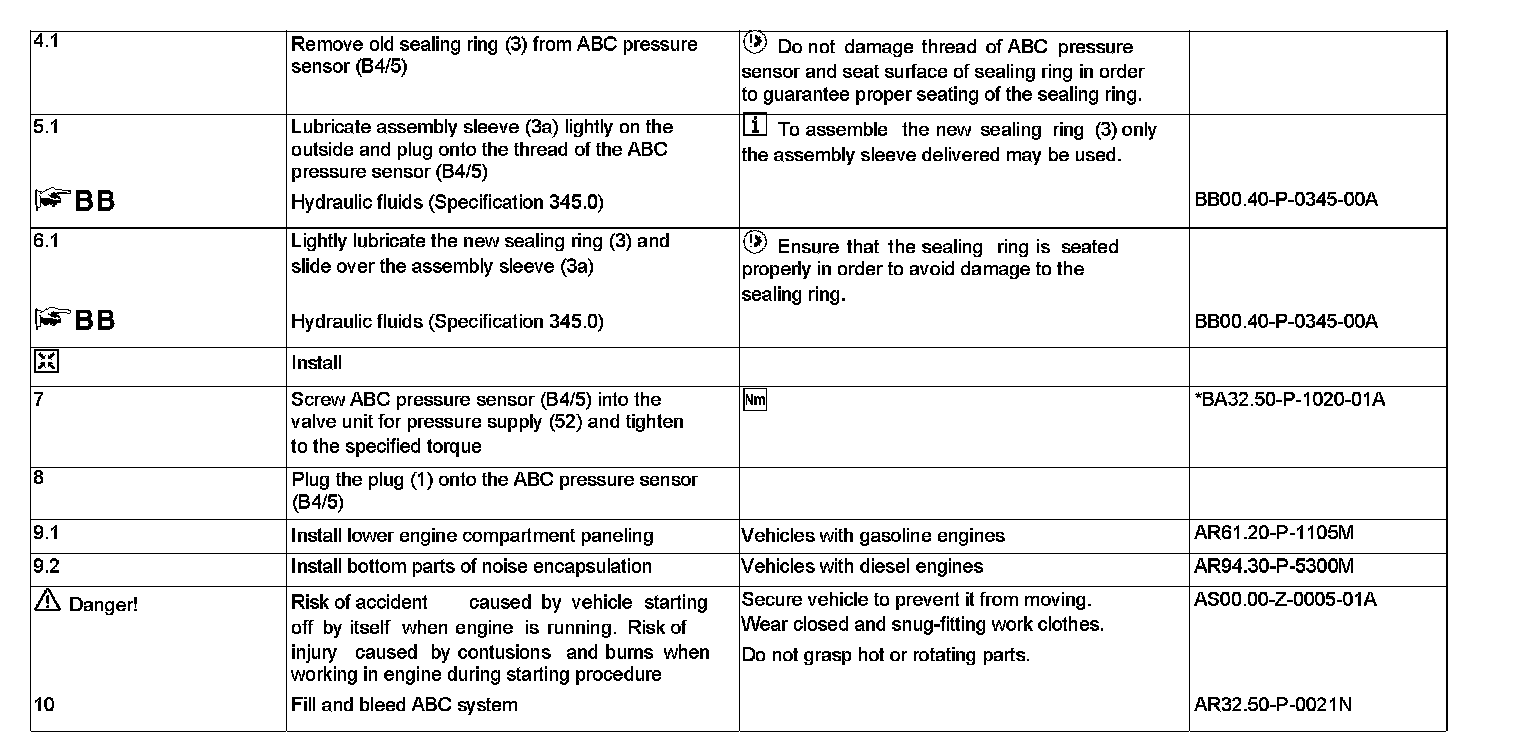

Steps 4.1 - 10:

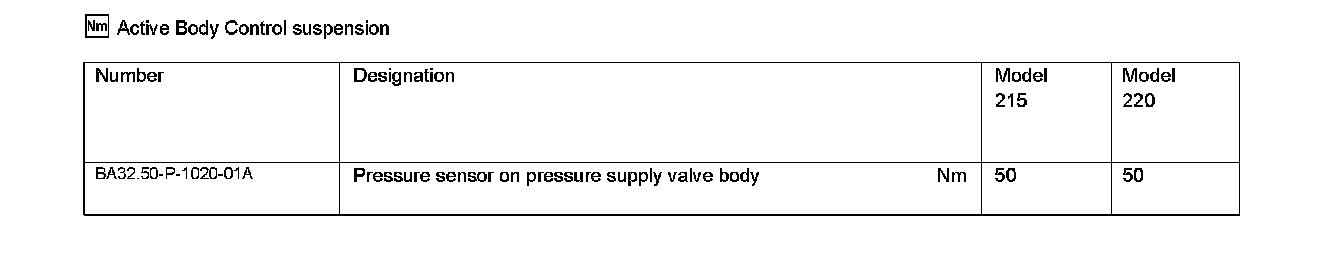

Active Body Control Suspension:
