Ride Height Sensor: Description and Operation



GF32.31-P-4400B Level sensor, location/task/design/function
- with CODE (489a) Airmatic (semi-active air suspension)

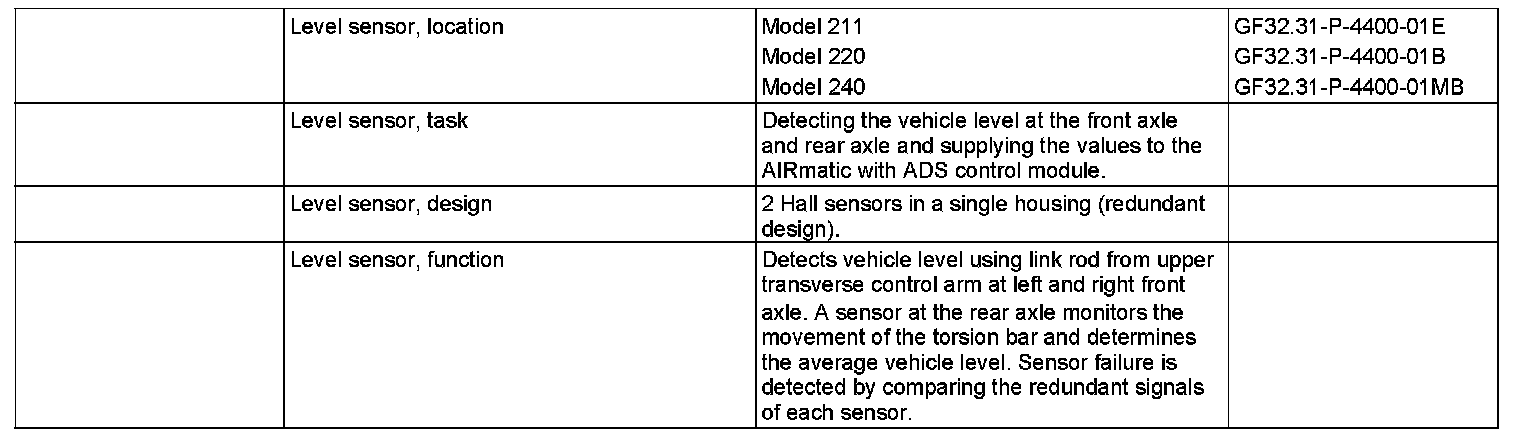

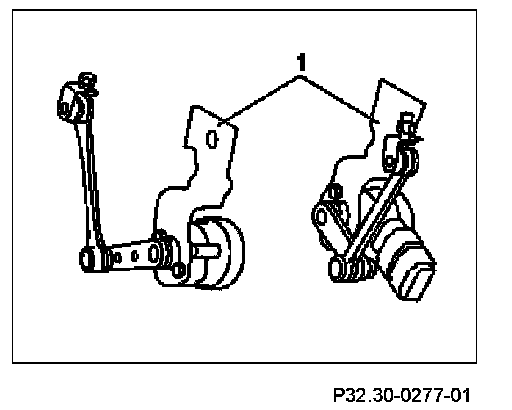

Component Identification:
