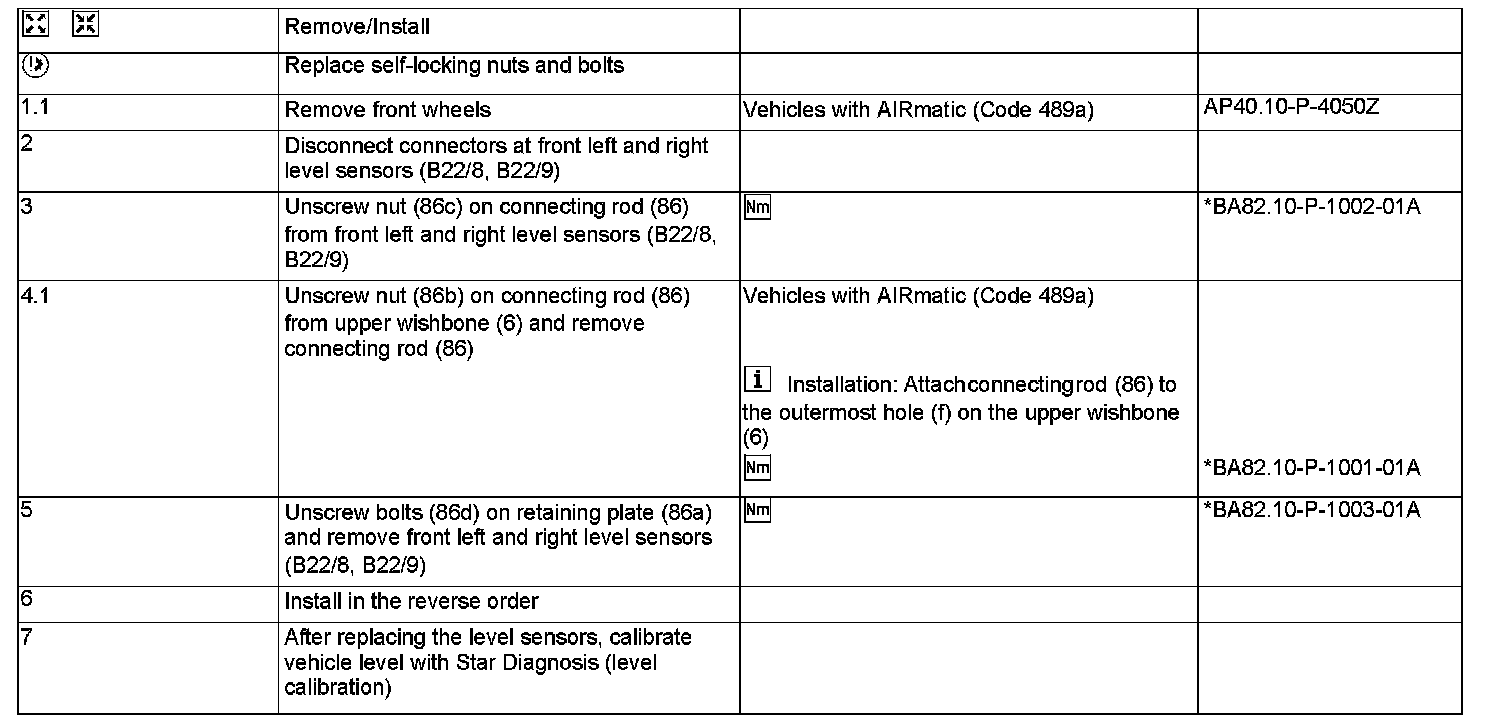

AR82.10-P-0004I Remove/Install Front Axle Level Sensors
AR82.10-P-0004I Remove/Install Front Axle Level Sensors
AR82.10-P-0004I Remove/Install Front Axle Level Sensors

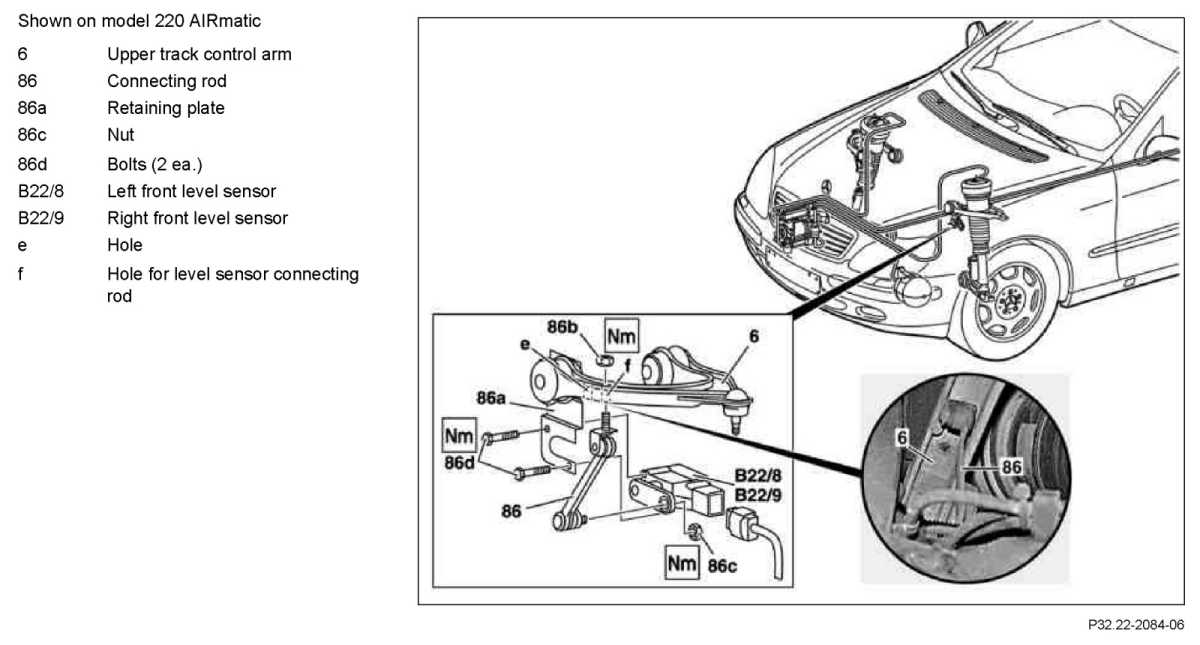

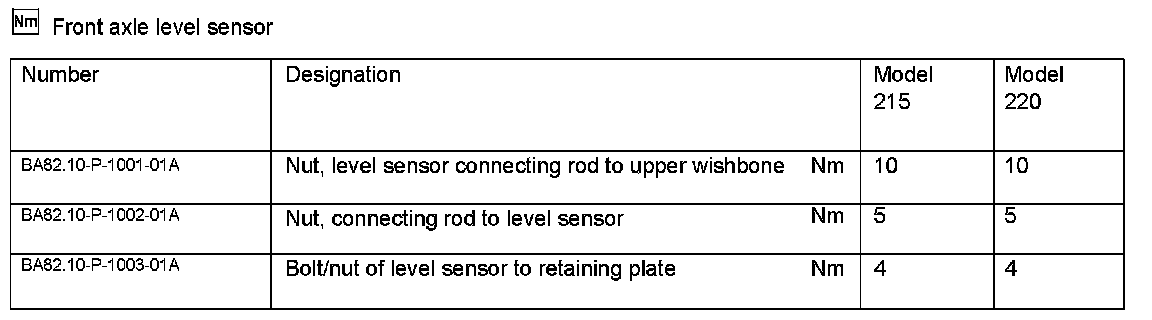

Front Axle Level Sensor:
