Ambient Light Sensor: Service and Repair

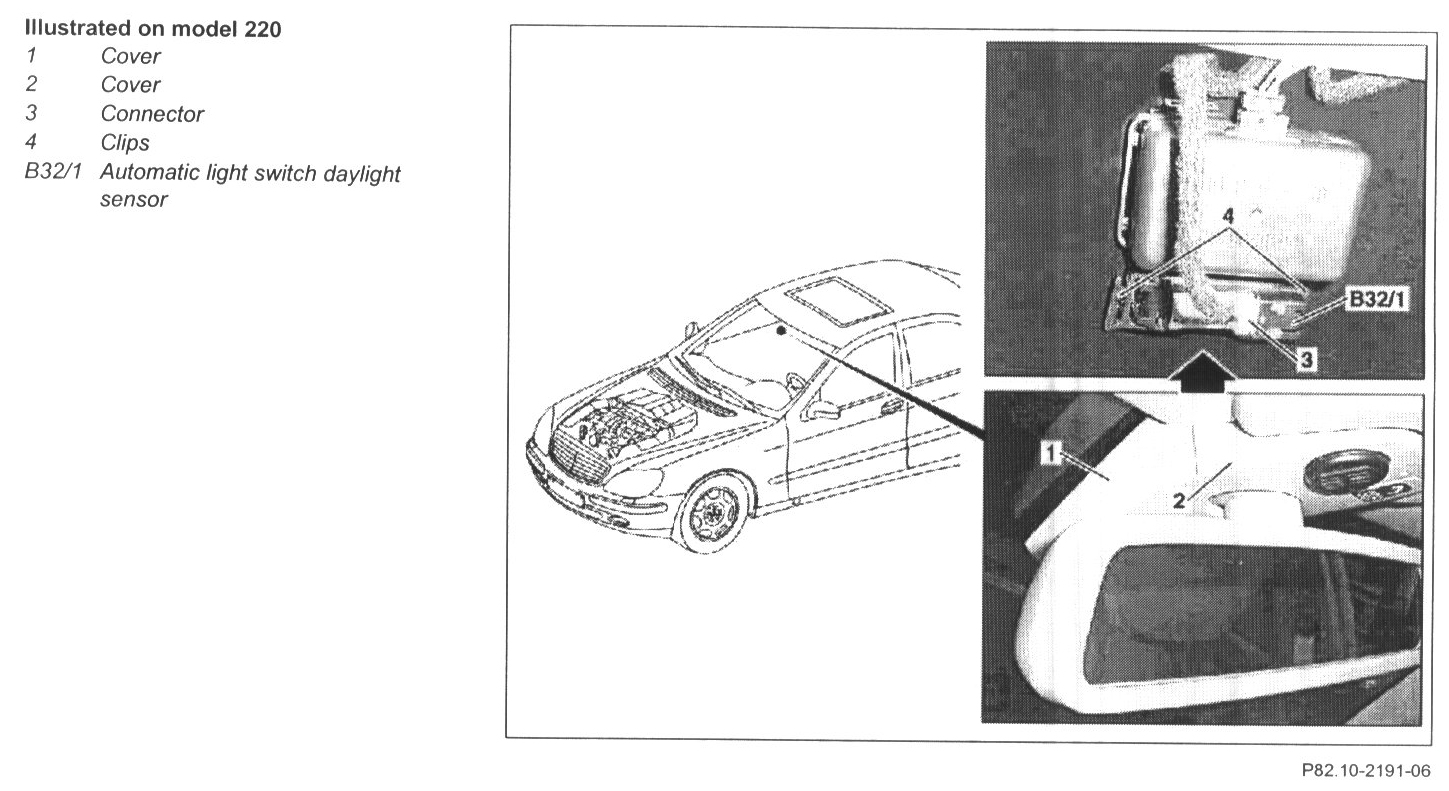

AR82.10-P-2400I Remove/Install Daylight Sensor







1 Remove overhead control panel control module.
2 Unclip cover (1)
3 Unclip cover (2)
4 Release clips (4) on left and right
5 Remove automatic light switch daylight sensor (B32/1).

NOTE: Sensor lens is glued to windshield. Do not replace.

6 Disconnect connector (3)
7 Install in opposite order.
