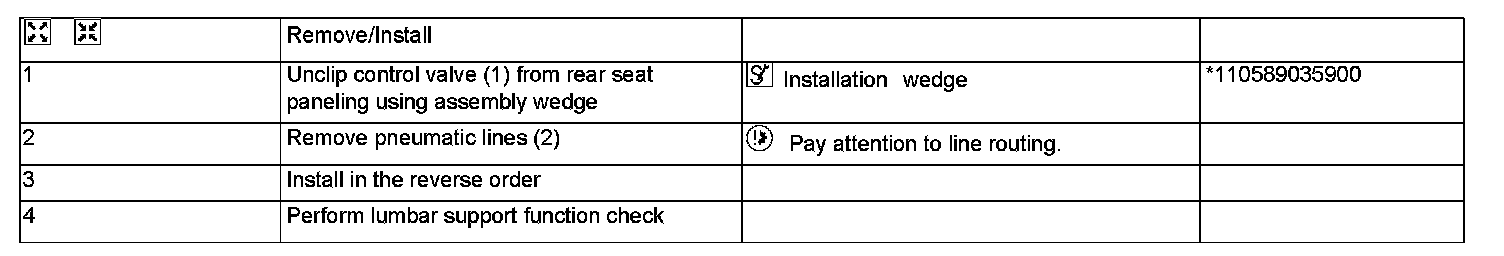

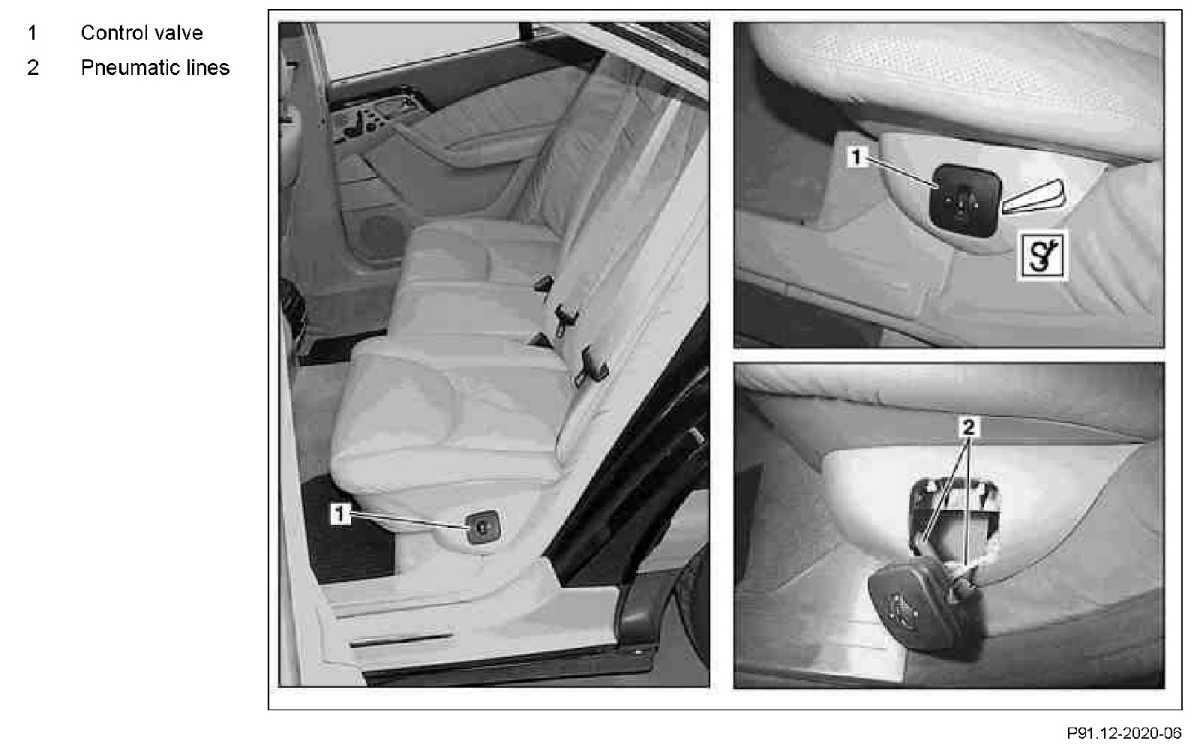

AR91.12-P-1670M Remove/Install Rear Seat Backrest Lumbar Support Control Valve
AR91.12-P-1670M Remove/Install Rear Seat Backrest Lumbar Support Control Valve
AR91.12-P-1670M Remove/Install Rear Seat Backrest Lumbar Support Control Valve
- with CODE (223b) Electrically adjustable rear bench seat
