Home >> Mercedes Benz >> 2002 >> S 500 (220.175) V8-5.0L (113.960) >> Repair and Diagnosis >> Sensors and Switches >> Sensors and Switches - Body and Frame >> Trunk / Liftgate Position Sensor >> Service and Repair >> AR88.50-P-5065N Remove/Install Trunk Lid Opening Angle Detection Sensor

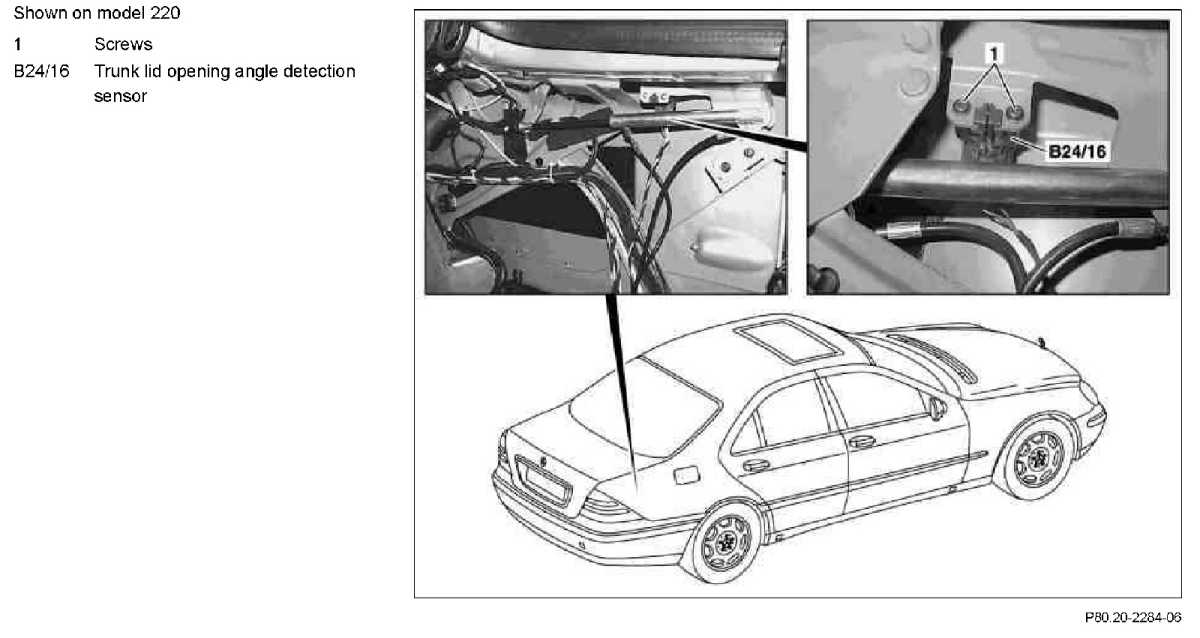

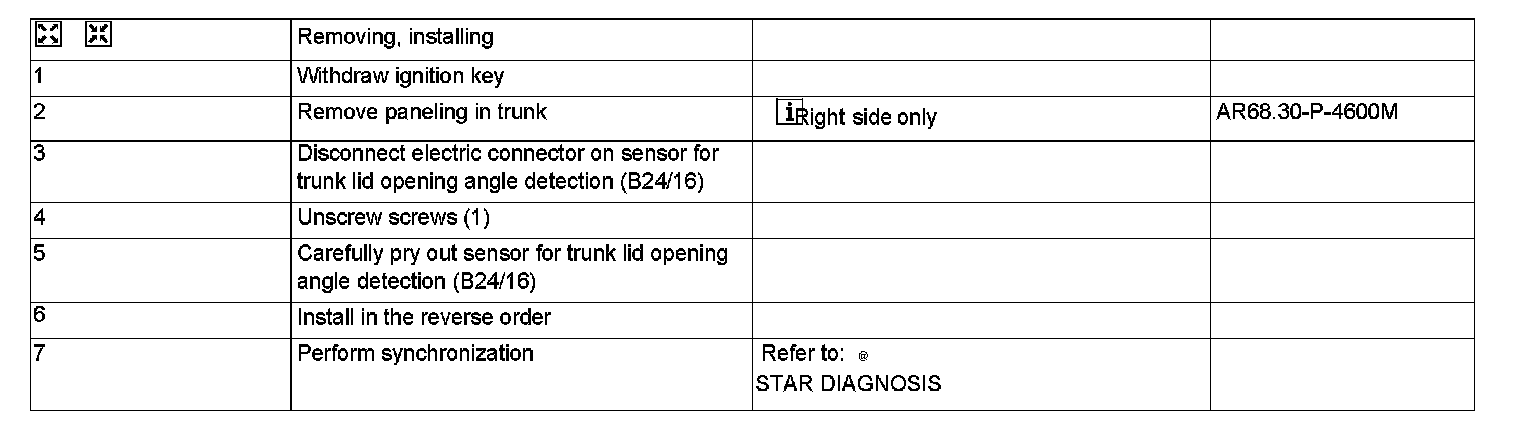

AR88.50-P-5065N Remove/Install Trunk Lid Opening Angle Detection Sensor



AR88.50-P-5065N Remove/Install Trunk Lid Opening Angle Detection Sensor
- with CODE (881b) Trunk lid remote control
