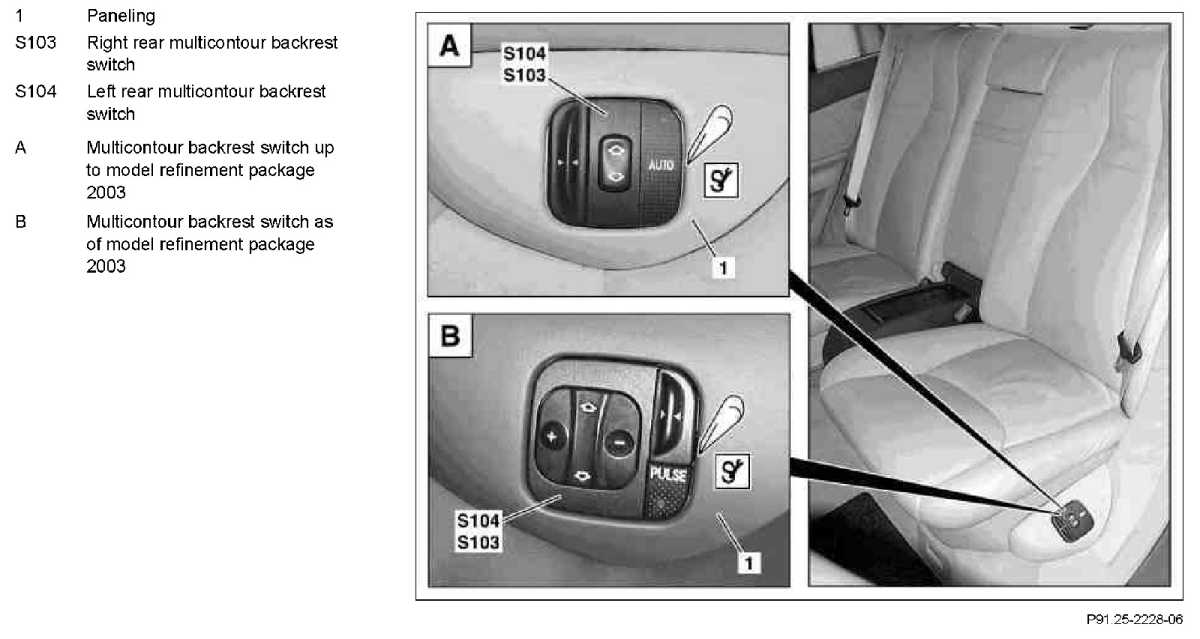

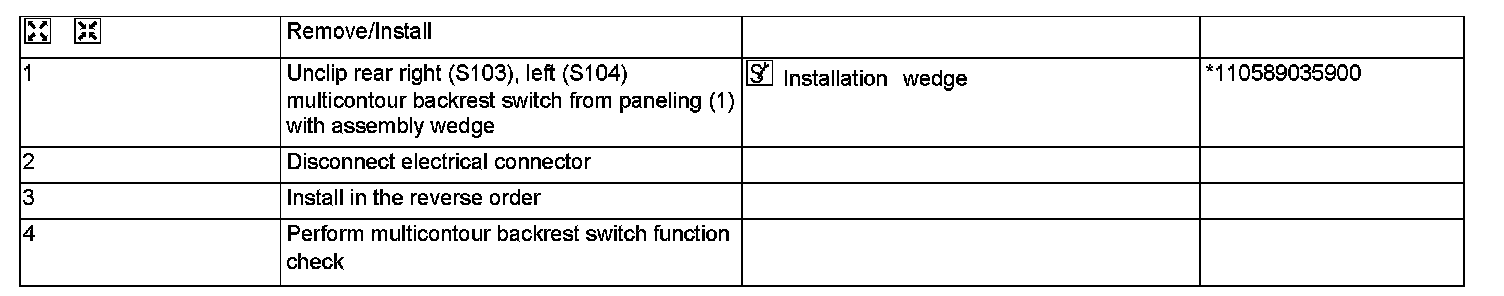

AR91.25-P-1765M Remove/Install Rear Seat Multicontour Backrest Control Switch



AR91.25-P-1765M Remove/Install Rear Seat Multicontour Backrest Control Switch
- with CODE (224c) Electrically adjustable rear single seats, with seat ventilation, seat heater and memory package
