Home >> Mercedes Benz >> 2002 >> S 500 (220.175) V8-5.0L (113.960) >> Repair and Diagnosis >> Restraints and Safety Systems >> Seat Belt Systems >> Testing and Inspection >> AP91.40-P-9150M Check Seat Belts and Seat Belt Buckles For External Damage and Operation

AP91.40-P-9150M Check Seat Belts and Seat Belt Buckles For External Damage and Operation



AP91.40-P-9150M Check Seat Belts and Seat Belt Buckles For External Damage and Operation

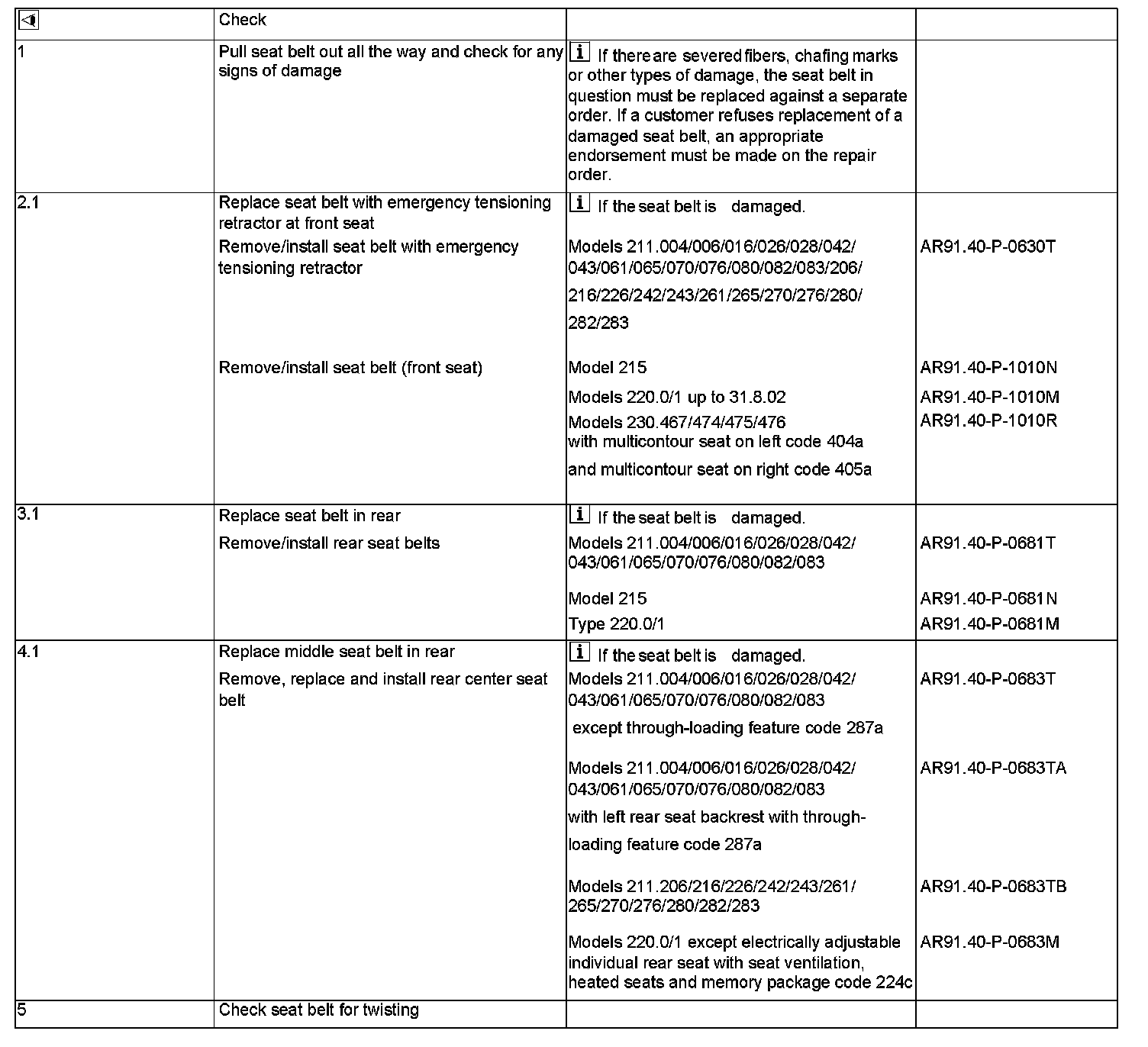

Part 1:

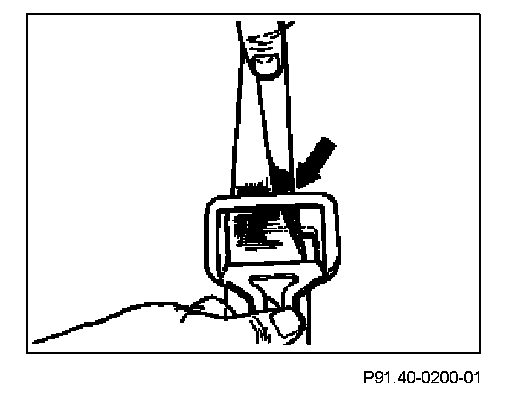

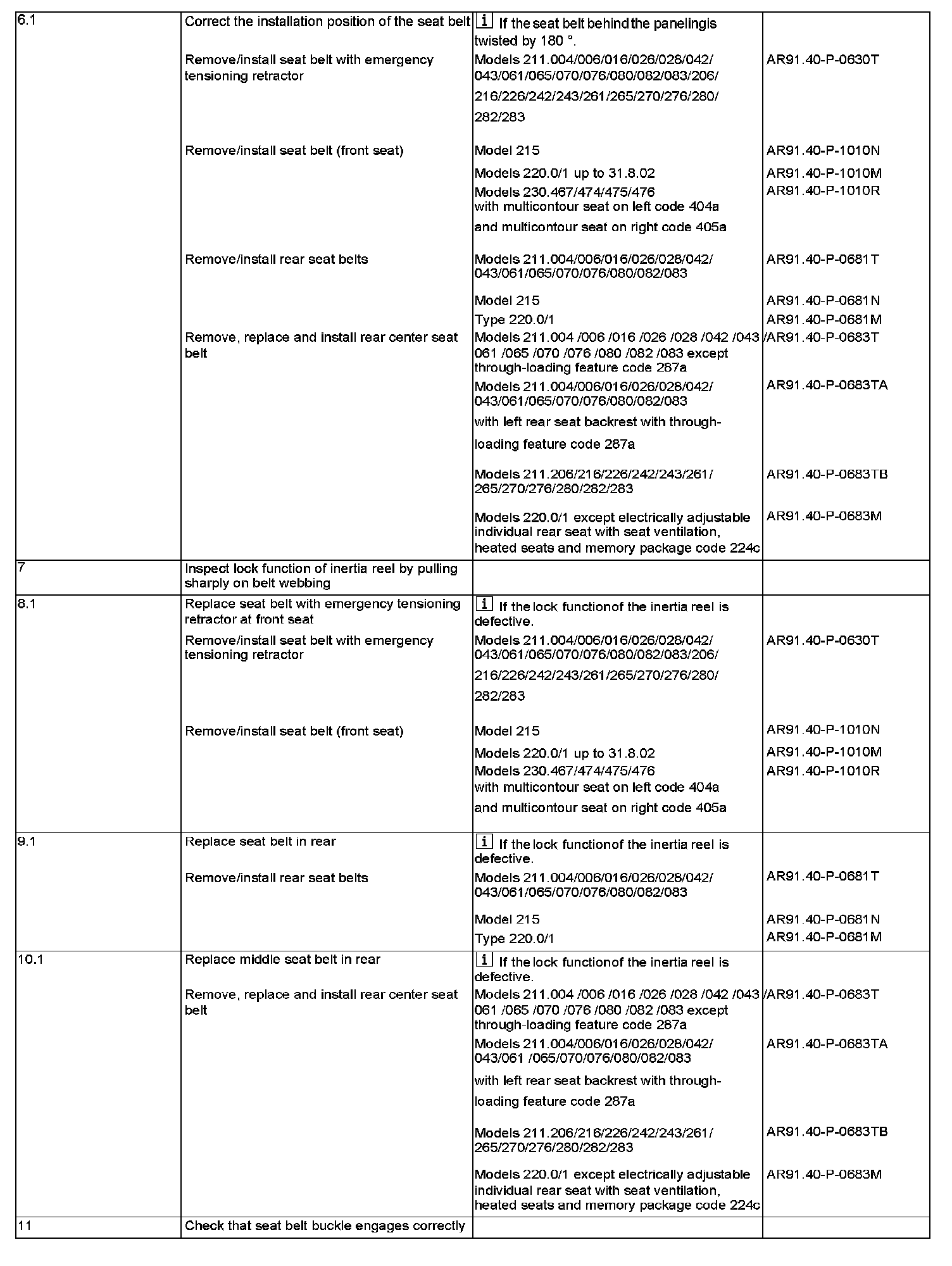

Part 2:

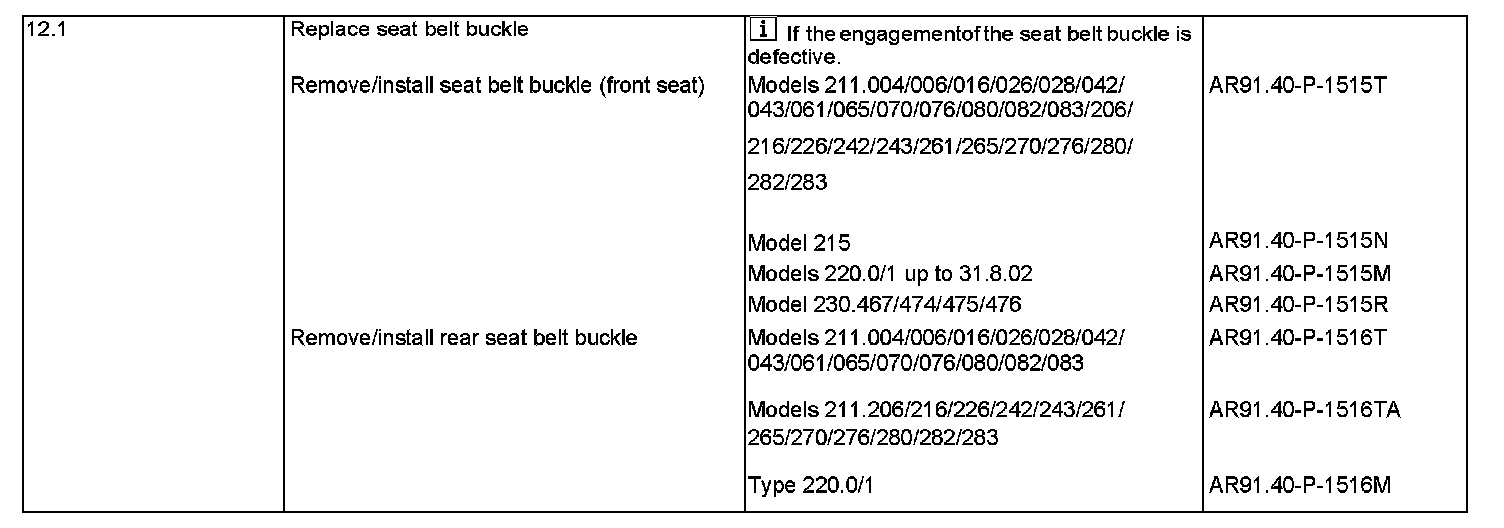

Part 3:
