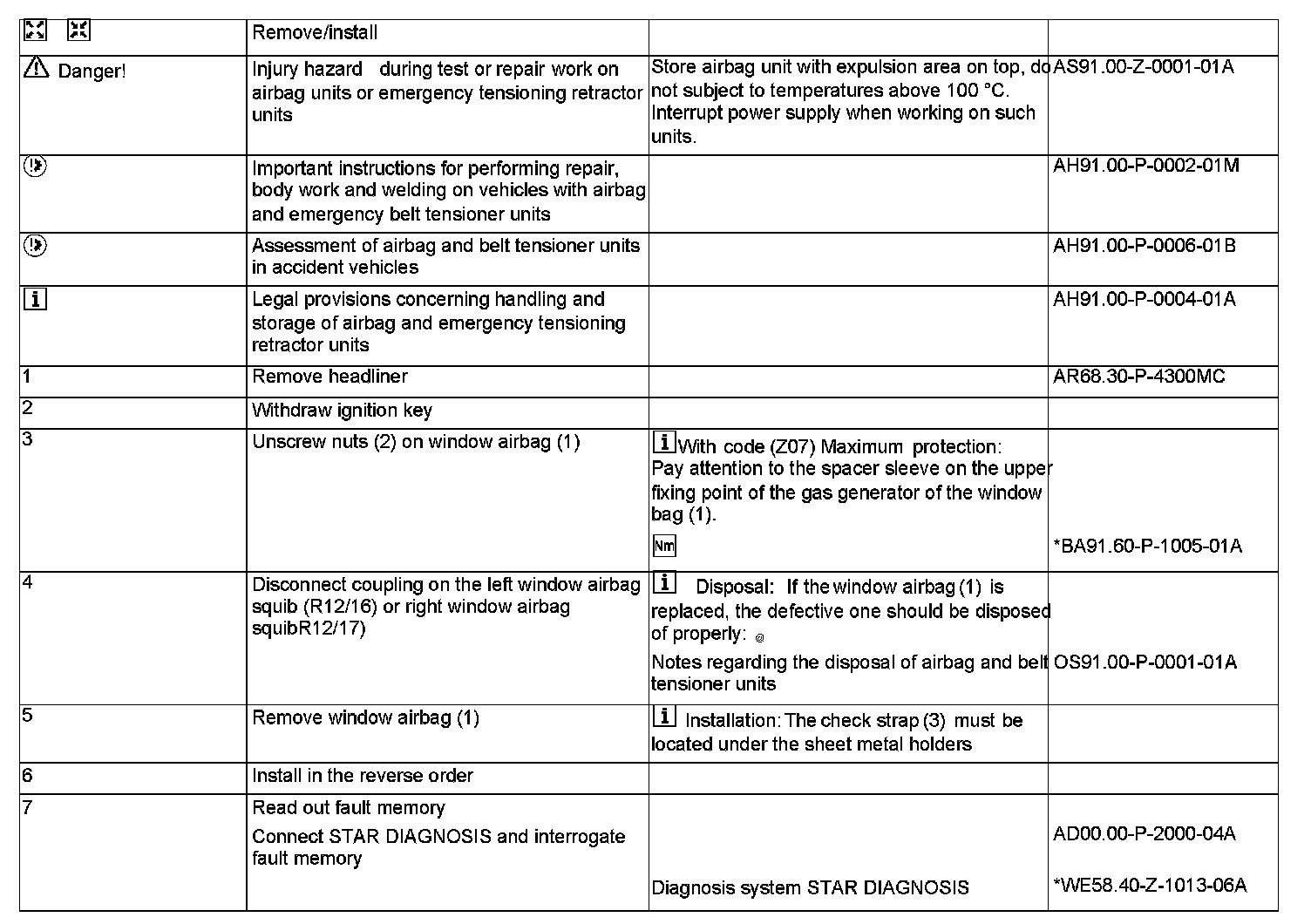

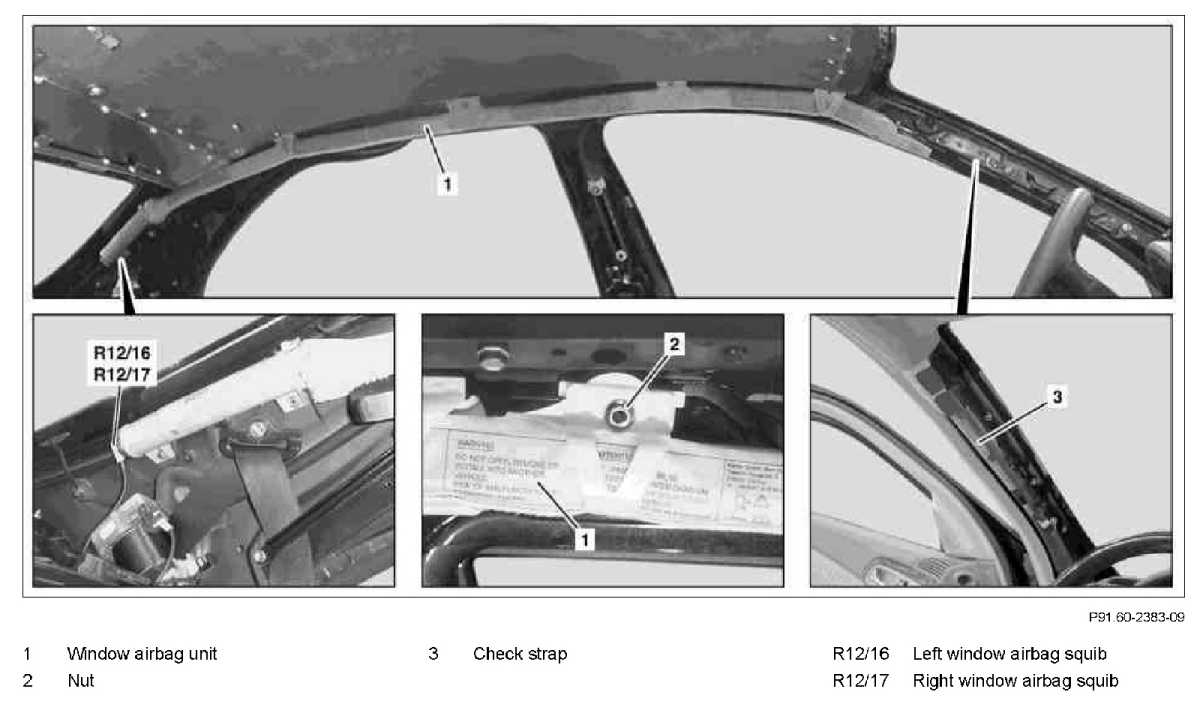

AR91.60-P-0693MC Remove/Install Window Airbag



AR91.60-P-0693MC Remove/Install Window Airbag
- with CODE (Z04) Light armoring
- with CODE (Z07) Top protection

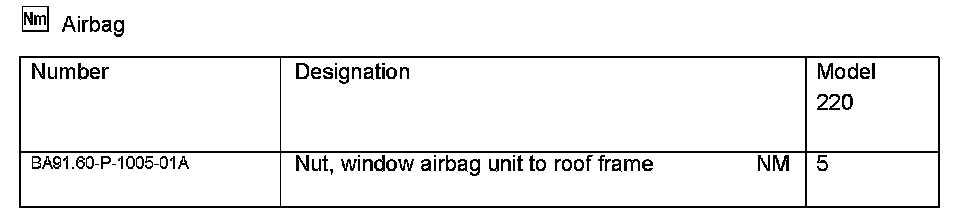

Airbag:
